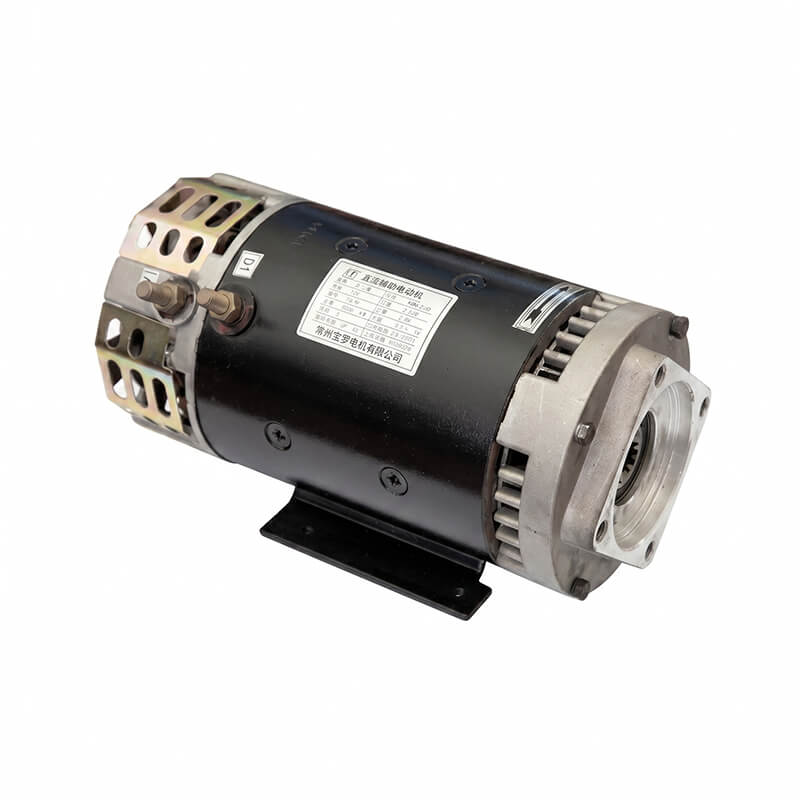

24V 3.3kW DC Compound Wound Auxiliary Motor (Model: XQD-3.3B)

The XQD-3.3B is a high-performance 24V 3.3kW DC compound wound brushed auxiliary motor engineered to deliver both powerful starting torque and precise speed regulation. Operating at a high rated speed of 3050 rpm and handling a robust 180A current, it is optimized for a 30-minute short-time duty cycle in demanding industrial applications. Featuring a specialized 9-tooth involute internal spline for highly secure, direct mechanical coupling, this IP20-rated motor ensures low power loss and exceptional operational stability. It serves as the optimal OEM power solution for industrial machine tools, high-capacity water pumps, lifting equipment, and agricultural machinery. Contact us for bulk pricing, technical datasheets, and custom spline configurations.

Category :
AC Auxiliary Motor
Release time : 2026-05-01

Message

Detailed Description

Motor Specifications

Parameter	Specification
Motor Model	XQD-3.3B
Rated Power	3.3 kW
Rated Voltage	24V DC
Rated Current	180A
Rated Speed	3050 rpm
Duty Cycle	30 min
IP Rating	IP20
Excitation Mode	Compound Wound
Structural Features	9-Tooth Involute Internal Spline

Product Overview

This DC compound wound brushed motor integrates the benefits of both series and shunt windings to deliver optimal performance and durability for industrial applications.

Performance: Delivers powerful starting torque combined with highly stable operation and precise speed regulation.
Efficiency: Engineered for low power loss.
Value: Features a simplified structural design, ensuring straightforward maintenance and rugged, industrial-grade durability.

Applications

Optimized for industrial and civil equipment requiring stable power output and precise speed control performance:

Industrial Equipment: Machine tools, industrial fans, and water pumps.
Material Handling: Light-duty lifting equipment and conveyor systems.
Agriculture: Agricultural machinery.
