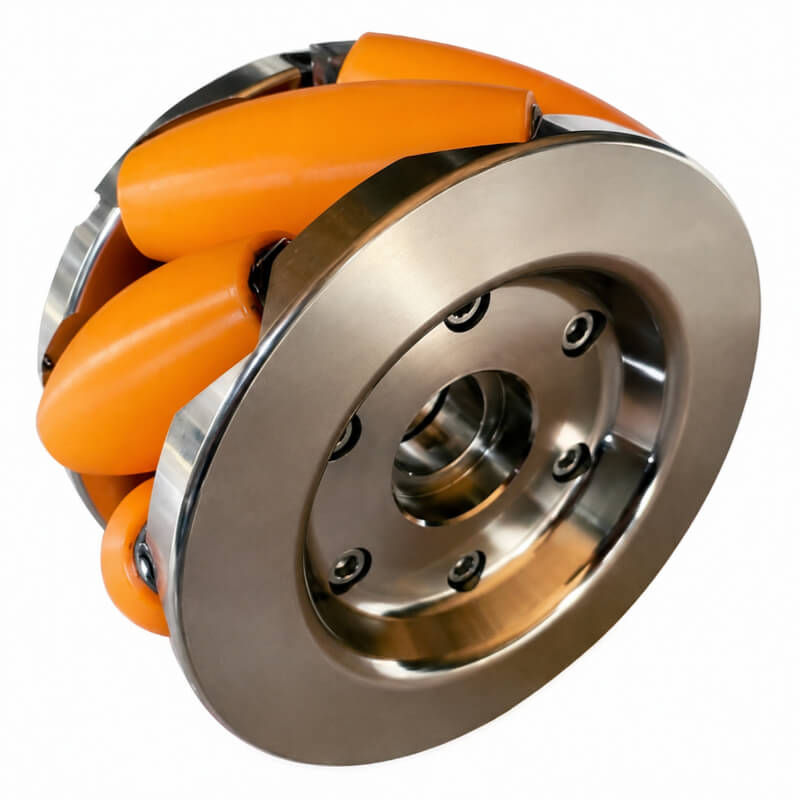

406mm (16-Inch) 2500kg Load Heavy-Duty Aluminum PU Mecanum Wheel (Model: BM40-2500)

Specifications

Product Overview

The Baoluo 16-inch Ultra Heavy Duty Industrial Mecanum Wheel is engineered for large-scale AGVs, omnidirectional transport platforms, and high-capacity automated material handling systems. With its oversized wheel diameter, aviation-grade aluminum hub, reinforced polyurethane rollers, and precision-engineered construction, it delivers exceptional load-bearing capability, smooth omnidirectional movement, and reliable long-term performance in demanding industrial environments.

Designed to support up to 2,500 kg per wheel and a recommended payload of 8,000 kg using four wheels, this Mecanum wheel enables heavy equipment to move forward, sideways, diagonally, or rotate in place without conventional steering. It is an ideal solution for heavy-duty AGVs, intelligent logistics vehicles, aerospace assembly platforms, steel plants, and port handling systems.

Core Features

• Ultra Heavy Load Capacity
  Supports up to 2,500 kg per wheel, making it suitable for the most demanding industrial transport applications.
• Large Diameter Design
  The 16-inch wheel improves obstacle-crossing ability and provides smoother movement on uneven industrial floors.
• Omnidirectional Mobility
  Enables forward, sideways, diagonal, and zero-radius rotation for precise movement in confined production environments.
• Premium Construction
  Manufactured with aviation-grade aluminum hubs, reinforced roller cores, and durable polyurethane rollers for outstanding strength and wear resistance.
• Corrosion & Wear Resistance
  Anodized and hard-anodized surface treatment extends service life in harsh industrial environments.
• Easy System Integration
  Compatible with AGV drive wheels, AC traction motors, DC traction motors, and customized heavy-duty drive systems.

Applications

The 16-inch Ultra Heavy Duty Industrial Mecanum Wheel is designed for intelligent transportation systems requiring extremely high payload capacity and omnidirectional mobility.

• Heavy-Duty Automated Guided Vehicles (AGVs)
• Large Autonomous Mobile Robots (AMRs)
• Heavy Material Handling Platforms
• Steel Plant Transport Systems
• Aerospace Assembly Platforms
• Port & Container Handling Equipment
• Heavy Industrial Transfer Carts
• Rail Vehicle Manufacturing Platforms
• Automotive Production Lines
• Large Intelligent Logistics Vehicles

Its large diameter and high load capacity allow oversized equipment and heavy payloads to move smoothly in tight spaces while improving transportation efficiency and reducing the need for complex steering systems.

Frequently Asked Questions

1. What is the maximum load capacity of the 16-inch Mecanum wheel?

Each wheel supports up to 2,500 kg. A standard four-wheel configuration is recommended for total vehicle loads of up to 8,000 kg, depending on chassis design and operating conditions.

2. Why choose a 16-inch Mecanum wheel instead of a smaller model?

The larger wheel diameter provides better obstacle-crossing capability, improved stability, and smoother operation under heavy loads, making it ideal for large AGVs and industrial transport platforms.

3. Can Baoluo provide complete heavy-duty AGV drive solutions?

Yes. Baoluo supplies Industrial Mecanum Wheels, AGV drive wheels, AC traction motors, DC traction motors, motor controllers, and customized drive systems, providing complete motion solutions for heavy-duty AGVs and intelligent material handling equipment.
