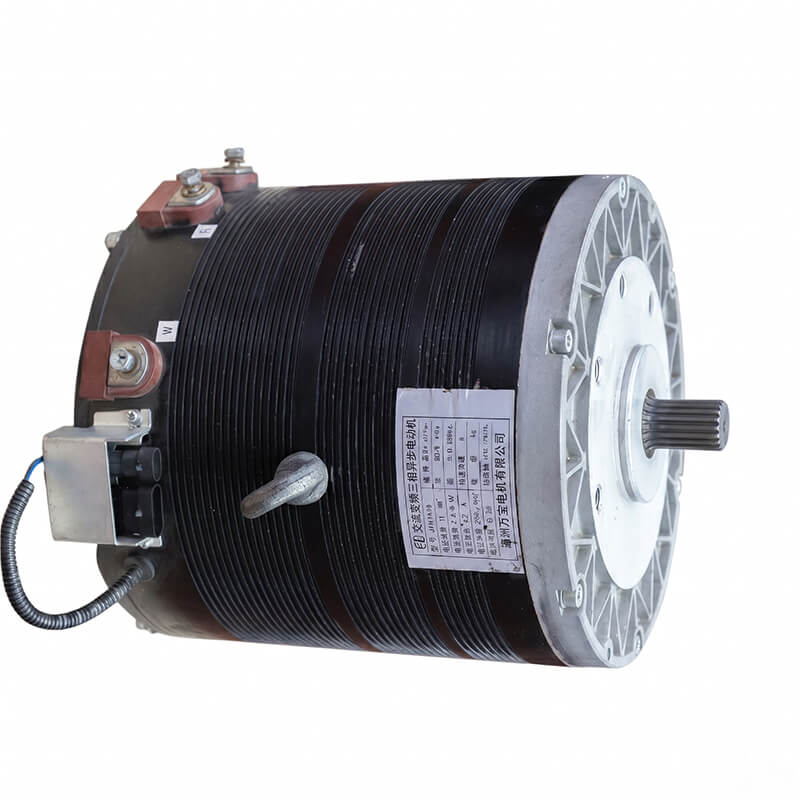

48V 11kW AC Asynchronous Battery Traction Motor (Model: XYQ-11CC01)

The XYQ-11CC01 is a high-power 48V 11kW three-phase AC asynchronous motor engineered specifically for heavy-duty battery-driven industrial vehicles. Delivering a rated speed of 2000 rpm and handling a massive 267A rated current under a 48V system, this IP54-rated motor features a specialized square flange and an 18-tooth internal spline for highly secure, direct mechanical integration into robust drivetrains. Equipped with an integrated temperature sensor and a 64 P/rev encoder, it ensures precise, wide-range speed regulation (10-200 Hz) and reliable thermal protection. Built to dominate extreme overload conditions, including heavy-load startups and full-load incline climbing, it serves as the ultimate traction powertrain for large electric forklifts, heavy tow tractors, and utility vehicles. Contact us for bulk pricing and OEM parameter configurations.

Category :
AC Traction Motor
Release time : 2026-05-01

Message

Detailed Description

Motor Specifications

Parameter	Specification
Motor Model	XYQ-11CC01
Rated Power	11 kW
Battery Voltage	48V DC
Rated Voltage	31V AC
Rated Current	267A
Rated Speed	2000 rpm
Frequency	10-200 Hz
Duty Cycle	60 min
IP Rating	IP54
Encoder Output Signal	64 P/rev
Structural Features	Square Flange, 18-Tooth Internal Spline, with Temperature Sensor

Product Overview

This battery-powered three-phase AC asynchronous motor is engineered to provide reliable power for various battery-driven vehicles, serving effectively as traction motors, pump motors, or power steering motors.

Core Applications: Electric forklifts, pallet trucks, tow tractors, golf carts, sightseeing vehicles, and electric cars.
Performance Advantages: Features a wide speed regulation range, robust overload capacity, high mechanical strength, and highly stable operation. Engineered as a highly efficient and eco-friendly drive solution.
Versatile Capability: Easily handles demanding operational conditions, including heavy-load startups, full-load incline climbing, and high-speed flat-road cruising.

Operating Conditions & Customization

Standard Operating Environment:
- Ambient Temperature: ≤ 45°C
- Relative Humidity: ≤ 90% (at 20°C)
- Altitude: ≤ 1000m
Voltage Compatibility: Suitable for 24V, 48V, and 72V battery systems. Rated AC voltage and rated frequency can be custom-designed upon request.
Standard Duty Cycle: S2-30min or S2-60min.
