| Parameter | Specification |
|---|---|
| Motor Model | XQ-5KS |
| Rated Power | 5 kW (6.7 HP) |
| Rated Voltage | 48V DC |
| Rated Current | 139 A |
| Rated Speed | 1480 rpm |
| Duty Cycle | S2-60min |
| IP Rating | IP21 (indoor / sheltered) |
| Insulation | Class F |
| Excitation | Series Wound |
| Mounting | B35 (foot + flange) |

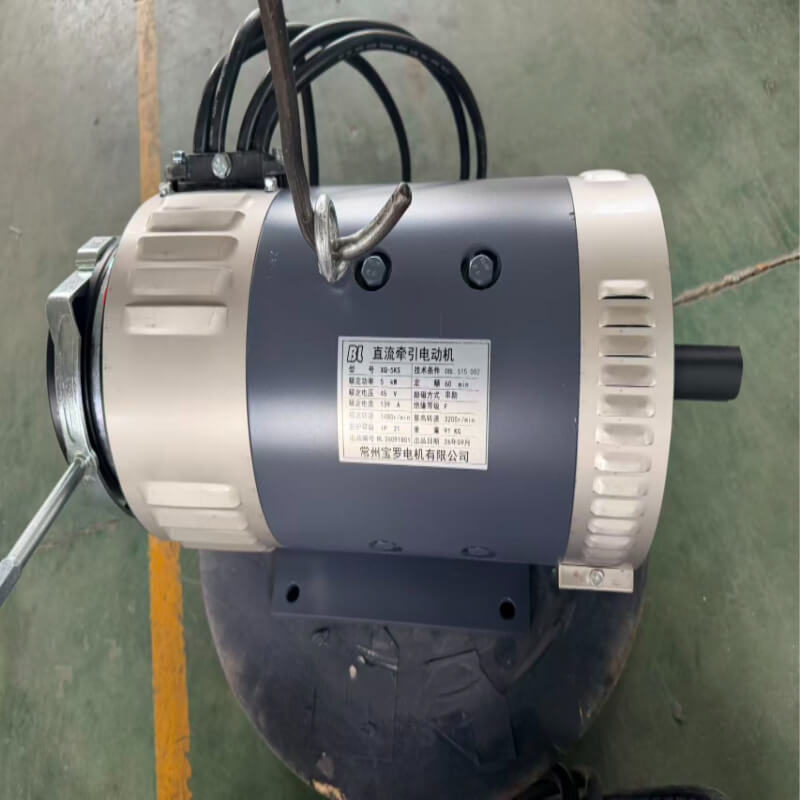

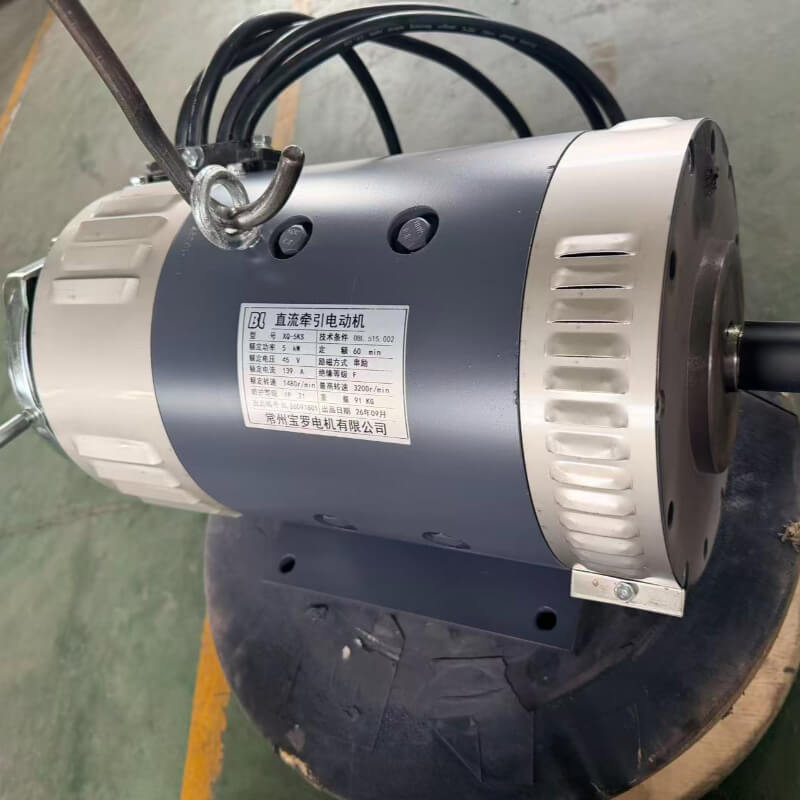

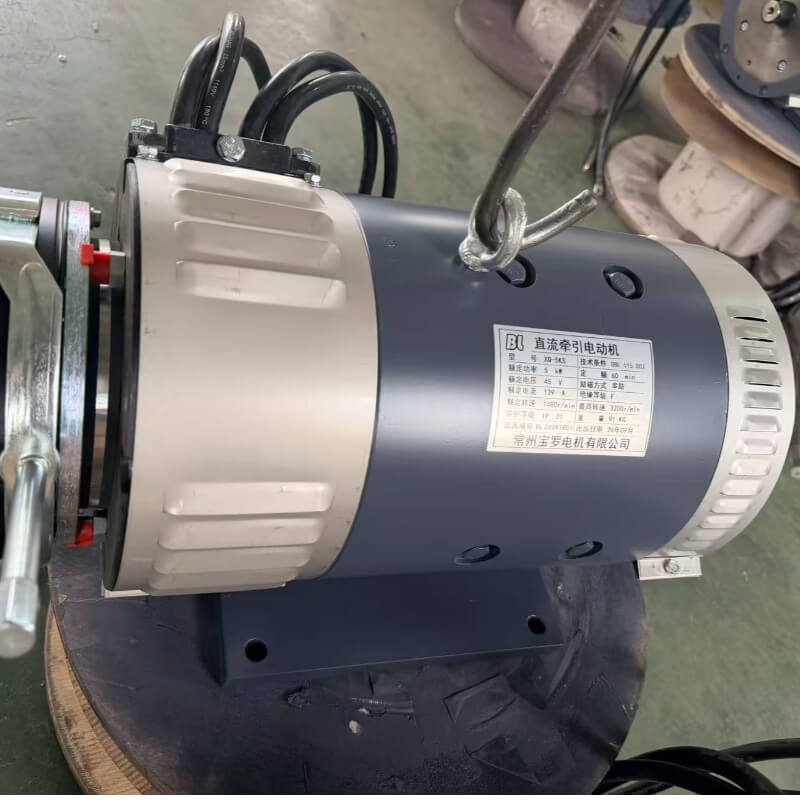

The XQ-5KS is a series wound DC motor — it belongs to the brushed DC motor family. Current is fed to the rotor through carbon brushes and a commutator, which gives very high starting torque and a wide speed range. The trade-off is brush wear: brushes are a normal service item (typically replaced every 1,000-2,000 operating hours depending on duty cycle). Compared with brushless DC motors, brushed DC motors are cheaper and simpler to control — that is why most 48V battery forklifts, AGVs and material handling trucks still use them.
A series wound motor places the field winding in series with the armature, so torque rises sharply as load increases and is highest at standstill. That is exactly what a vehicle needs: strong pull-away from zero speed, then a natural speed increase as the load eases. The XQ-5KS is rated 1480 rpm at 5 kW (6.7 HP) on a 48V battery, with B35 foot-and-flange mounting for a rigid, flange-coupled installation. For indoor material handling and towing, this combination delivers the acceleration and overload margin a traction drive demands without the cost of an electronic commutator.
Not sure which model fits your vehicle? Contact our engineering team with your battery voltage, vehicle weight and speed requirement for a matched drive solution.
Q: Can you customize voltage or mounting for the XQ-5KS?
A: Yes. OEM/ODM supported — 24V/48V/72V versions, B35 foot-and-flange mounting (B3 foot or B5 flange variants available), and shaft dimensions can be customized. Send your spec to our engineering team.
Q: Is IP21 protection enough for my application?
A: IP21 protects against finger contact and vertically falling water drops — it is rated for indoor and sheltered industrial use (warehouses, enclosed factory floors, dry cabs). It is NOT for outdoor rain, washdown or immersion. If your vehicle runs outdoors or gets hosed down, ask our engineering team about IP44 or higher enclosures.
Q: What is the standard lead time?
A: Standard lead time is 15-25 working days for sample orders and 25-35 working days for bulk orders, shipping from Shanghai or Ningbo port. Confirm exact lead time for your volume at inquiry.
Baoluo is a traction-motor manufacturer based in Changzhou, China, with in-house production and load testing. The certificate above shows our factory certification.
Armature and stator winding on our production line. Every motor is hand-built and tested before shipment.
Warranty: 18 months from the delivery date. MOQ: 1 unit. Lead time: 1 month after order confirmation.
