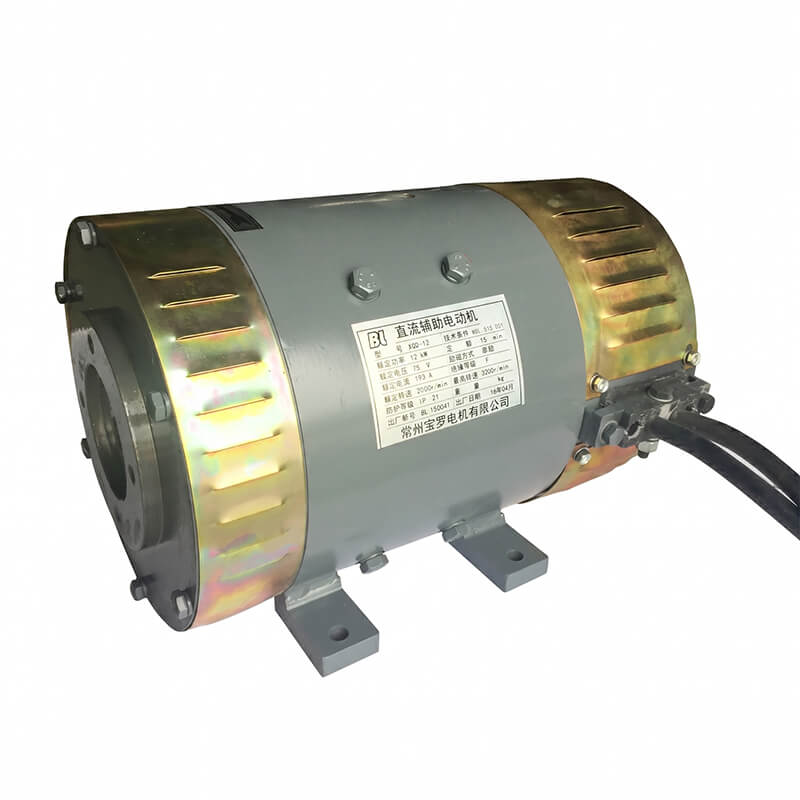

72V 12kW DC Compound Wound Auxiliary Motor (Model: XQD-12)

The XQD-12 is a high-capacity 72V 12kW DC compound wound brushed auxiliary motor engineered to deliver both massive starting torque and precise speed regulation. Operating at a rated speed of 2000 rpm and handling a heavy 193A current, it is optimized for a 30-minute short-time duty cycle in rigorous industrial environments. Featuring a specialized 4-tooth internal spline for highly secure, direct mechanical coupling, this IP21-rated motor ensures low power loss and exceptional operational stability under heavy loads. It serves as the ultimate OEM power solution for industrial machine tools, high-capacity water pumps, lifting equipment, and heavy agricultural machinery. Contact us for bulk pricing, technical datasheets, and custom spline configurations.

Category :
DC Auxiliary Motor
Release time : 2026-05-01

Message

Detailed Description

Motor Specifications

Parameter	Specification
Motor Model	XQD-12
Rated Power	12 kW
Rated Voltage	72V DC
Rated Current	193A
Rated Speed	2000 rpm
Duty Cycle	30 min
IP Rating	IP21
Excitation Mode	Compound Wound
Structural Features	4-Tooth Internal Spline

Product Overview

This DC compound wound brushed motor integrates the benefits of both series and shunt windings to deliver optimal performance and durability for industrial applications.

Performance: Delivers powerful starting torque combined with highly stable operation and precise speed regulation.
Efficiency: Engineered for low power loss.
Value: Features a simplified structural design, ensuring straightforward maintenance and rugged, industrial-grade durability.

Applications

Optimized for industrial and civil equipment requiring stable power output and precise speed control performance:

Industrial Equipment: Machine tools, industrial fans, and water pumps.
Material Handling: Light-duty lifting equipment and conveyor systems.
Agriculture: Agricultural machinery.
