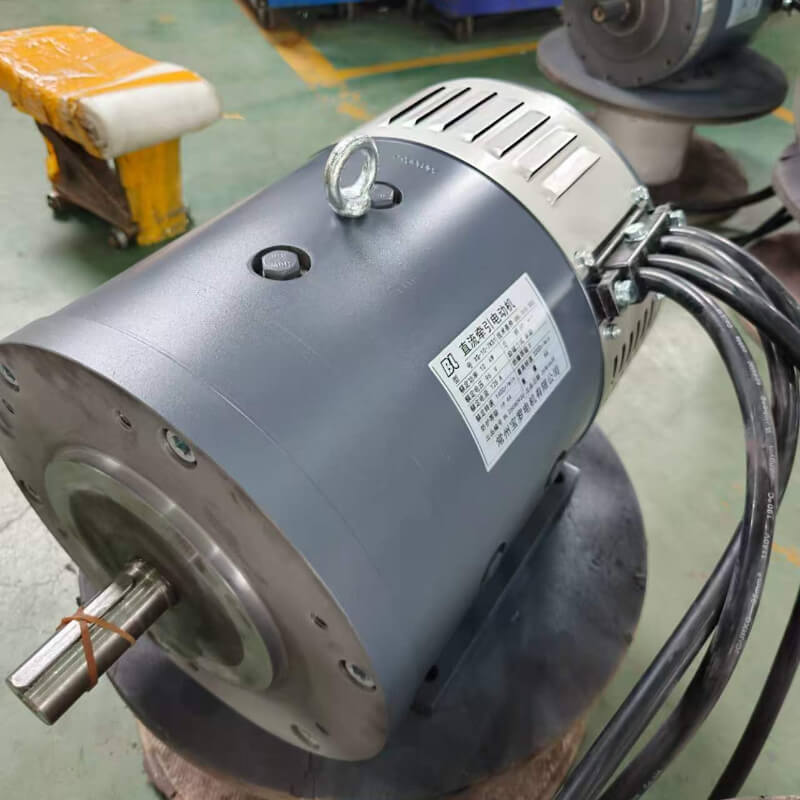

96V 10kW DC Series Wound Traction Motor (Model: XQ-10-7KS1)

The XQ-10-7KS1 is a high-performance 96V 10kW DC series wound motor engineered for electric vehicles, material handling equipment, rail vehicles, winches, and industrial machinery. Its series-wound design delivers outstanding starting torque and strong overload capability, making it ideal for demanding traction applications. With simple construction, reliable carbon brush commutation, and easy maintenance, the motor offers a durable and cost-effective drive solution for heavy-load startup and intermittent-duty operations.

Category :
DC Traction Motor
Release time : 2026-06-18

Message

Detailed Description

Motor Specifications

Parameter	Specification
Motor Model	XQ-10-7KS1
Rated Power	10kW
Rated Voltage	96V DC
Rated Current	125A
Rated Speed	1400 rpm
Duty Cycle	60 min
IP Rating	IP44
Excitation Mode	Series Wound
Structural Features	B35 mounting type with bottom corners

Product Overview

Type: DC series wound brushed motor; armature and field windings are connected in series.
Performance: Features load-adaptive speed regulation, robust overload capacity, and a responsive carbon brush commutation system.
Value: Structurally simple and cost-effective, engineered for durable operation and straightforward maintenance.

Core Features

High Starting Torque: Delivers exceptional power for heavy-load startup conditions.
Soft Mechanical Characteristics: Speed naturally decreases as load increases, providing inherent shock absorption and buffering.
Minimalist Construction: Lowers failure rates and ensures highly convenient maintenance and servicing.
AC/DC Universal: Compatible with both alternating and direct current, adapting to versatile power supply scenarios.

Applications

Engineered for equipment requiring heavy-duty starting, intermittent operation, or short-time duty cycles:

Power Tools: Angle grinders, electric drills, cutting machines, blowers.
Home Appliances: Vacuum cleaners, juicers, high-speed blenders, mixers.
Light Power Equipment: Winches, light-duty cranes, agricultural machinery.
Specialty Vehicles: Electric flatbed carts, material handling trucks, rail vehicles, low-speed vehicles, street sweepers.

FAQ 1: What are the key benefits of the XQ-10-7KS1 96V 10kW DC series wound motor?

Answer:

The XQ-10-7KS1 is a 96V 10kW DC series wound brushed motor designed to deliver exceptionally high starting torque and strong overload capability. Its series-wound construction allows it to generate maximum torque at low speeds, making it ideal for heavy-load starting applications. The motor also offers reliable performance, simple maintenance, cost-effective operation, and excellent durability in demanding industrial environments.

FAQ 2: What applications is the XQ-10-7KS1 motor suitable for?

Answer:

The XQ-10-7KS1 is widely used in electric vehicles and industrial equipment that require high starting torque and intermittent-duty operation. Typical applications include electric flatbed carts, material handling trucks, rail vehicles, street sweepers, agricultural machinery, electric winches, light-duty cranes, and battery-powered industrial transport equipment. Its robust performance makes it particularly suitable for traction and load-carrying applications.

FAQ 3: Why choose a series wound motor for traction and heavy-load applications?

Answer:

Series wound motors are known for producing very high torque during startup, which is essential for moving heavy loads from a standstill. The XQ-10-7KS1 automatically adjusts its speed according to load conditions, providing smooth acceleration and excellent load adaptability. This characteristic makes it an ideal drive solution for electric vehicles, material handling equipment, and industrial machinery operating under varying load conditions.
