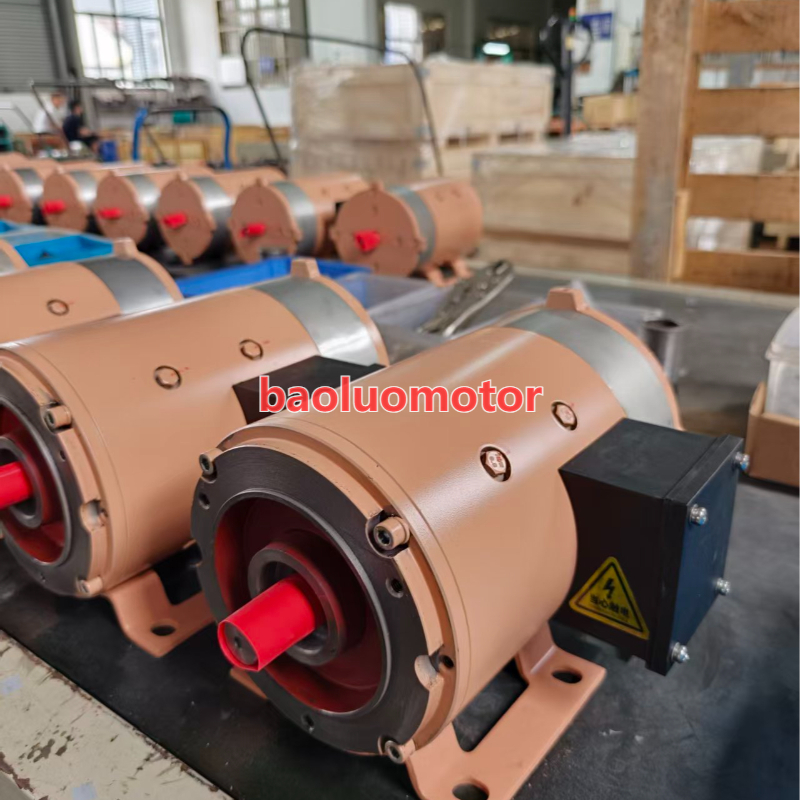

110V 750W DC Compound Wound Auxiliary Motor (Model: XQD-750-1)

Motor Specifications

Product Overview

The XQD-750-1 is a 110V 750W compound wound brushed DC motor designed for railway auxiliary systems and industrial ventilation equipment. Combining the advantages of series and shunt windings, it delivers reliable starting torque, stable operating speed, and dependable performance under continuous working conditions. Featuring an IP54 enclosure and B35 mounting configuration, the motor is well suited for demanding railway environments.

It is commonly used to drive railway exhaust fans, providing continuous airflow for ventilation, heat dissipation, and equipment cooling inside locomotive electrical cabinets and auxiliary systems, helping maintain safe and reliable train operation.

Key Features

• Stable Airflow Output: Compound wound design provides smooth and stable fan operation under varying loads.
• Reliable Performance: Delivers dependable operation for long-term railway auxiliary equipment.
• Durable Construction: IP54 protection and high-quality components ensure excellent durability in harsh environments.
• Easy Maintenance: Brushed DC structure simplifies inspection and replacement of wear components.
• B35 Mounting: Standard B35 installation allows easy integration into ventilation and cooling systems.

Typical Applications

The XQD-750-1 is widely used in railway auxiliary equipment and industrial ventilation systems requiring reliable DC motor drives.

• Railway locomotive exhaust fan systems
• Electrical cabinet ventilation
• Cooling fan drive systems
• Railway auxiliary ventilation equipment
• Industrial ventilation and cooling units
• Power equipment air circulation systems

Frequently Asked Questions

1. What is the primary application of the XQD-750-1 motor?

The XQD-750-1 is primarily designed to drive railway exhaust fan systems, providing continuous ventilation and cooling for locomotive electrical equipment and auxiliary systems.

2. Why is a compound wound motor suitable for ventilation systems?

Compound wound motors combine reliable starting torque with stable operating speed, ensuring consistent airflow and dependable performance during continuous operation.

3. Can the XQD-750-1 be customized?

Yes. Baoluo Motor provides OEM and ODM customization services, including voltage, shaft dimensions, mounting configuration, protection class, and other specifications to meet different railway and industrial applications.
