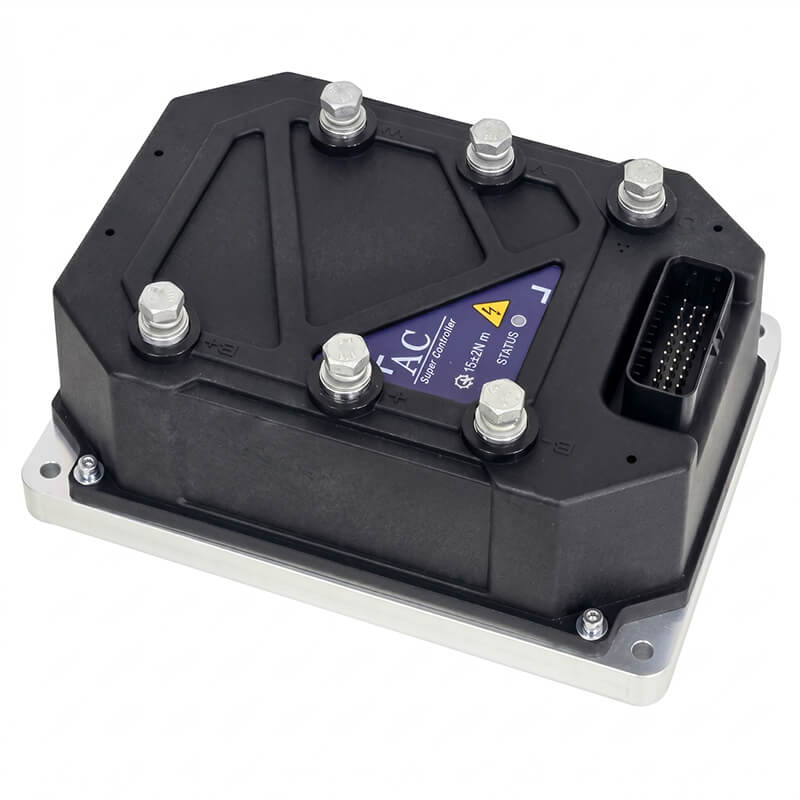

48V-108V 7.5-15 kW AC Motor Controller (C750 Series)

Designed for heavy-duty electric forklifts, logistics vehicles, and sanitation equipment, the C750 Series is a high-performance 48V-108V (7.5–15 kW) AC motor controller dedicated specifically to AC Asynchronous motors. It features advanced vector control algorithms for smooth, high-torque output and a highly stable regenerative braking system to maximize vehicle driving range. Encased in a rugged IP66 housing, it operates reliably in harsh conditions from -30°C to +55°C. With integrated CAN Bus communication for flexible online programming, anti-rollback safety, and comprehensive electrical protections, it delivers superior powertrain control for demanding industrial mobility. Contact us for bulk pricing, OEM parameter configurations, and technical datasheets.

Category :
AC Motor Controller
Release time : 2026-05-01

Message

Detailed Description

Core Features

Precision Control: Advanced vector control algorithms and intelligent vehicle control technology deliver precise, smooth speed and torque output.
Energy Recovery: Highly stable regenerative braking system effectively extends the vehicle's driving range.
Enhanced Safety: Optional anti-rollback function prevents slipping on inclines, maximizing operational safety.
Integrated Drive: Optional built-in coil drive enables soft start and mechanical electromagnetic braking capabilities.
Comprehensive Protection: Engineered with built-in safeguards against overcurrent, overvoltage, undervoltage, over-temperature, and accelerator faults to ensure maximum system reliability.
Flexible Programming: Supports parameter adjustment and online programming via CAN bus to accommodate custom functional requirements.

Product Specifications

Product Series	Model	Voltage Range (V)	Rated Output Current (A)	Max Output Current (A)	Max Output Power (kW)
C750	7240	48-72	120	400	25
C750	7255	48-72	165	550	38
C750	7440	96-108	120	400	31
C750	7450	96-108	150	500	47

Technical Characteristics

Applicable Motors: AC Asynchronous Motor
Position Detection: Quadrature Encoder
Operating Temperature: -30°C to +55°C
IP Rating: IP66
Cooling Method: Natural Cooling (Fan optional)
Communication: CAN Bus
Optional Accessories: Shunt, Heatsink, Signal Wiring Harness, Cooling Fan, Dust Cover
Industry Applications: Electric Forklifts, Sightseeing Vehicles, Electric Logistics Vehicles, Electric Sanitation Vehicles, etc.
