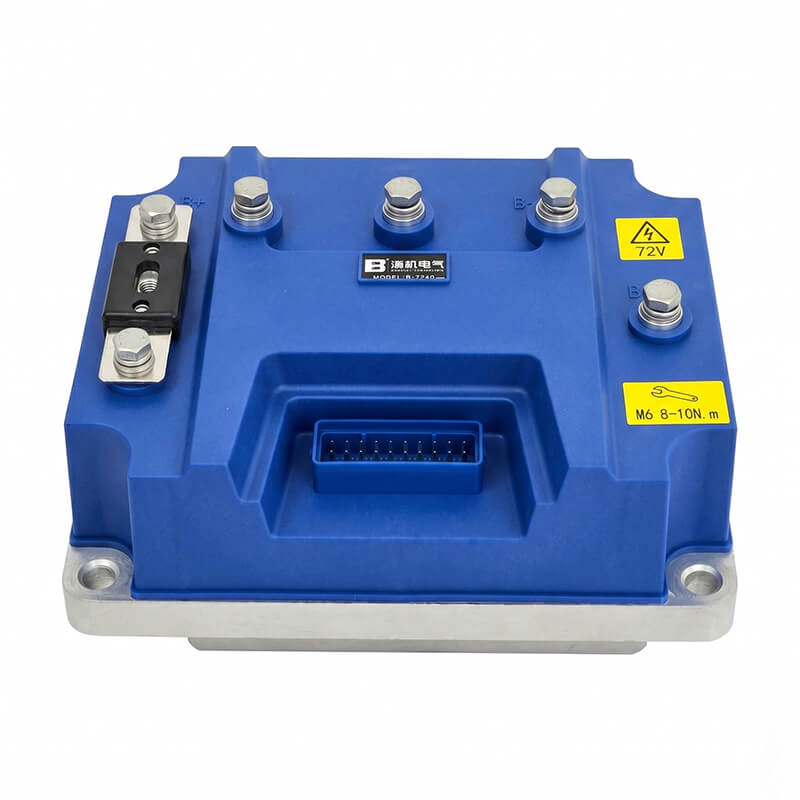

48V-72V 0.5-5.5 kW AC Motor Controller (C730/C750/C760 Series)

Engineered for electric forklifts, sightseeing vehicles, and sanitation equipment, this 48V-72V (0.5-5.5 kW) AC motor controller supports both Permanent Magnet Synchronous Motors (PMSM) and AC Asynchronous motors. It utilizes optimized vector control algorithms for precise torque output and features a highly efficient regenerative braking system to extend vehicle driving range. Encased in a rugged IP66-rated housing capable of operating between -30°C to +55°C, it ensures maximum reliability in harsh environments. Equipped with CAN Bus communication for flexible online programming and comprehensive safety safeguards (overcurrent, overvoltage, anti-rollback). Contact us for bulk pricing, custom parameter programming, and full technical datasheets.

Category :
AC Motor Controller
Release time : 2026-05-01

Message

Detailed Description

Core Features

Precision Control: Utilizes optimized vector control algorithms and intelligent vehicle control technology for precise and smooth speed and torque output.
Energy Recovery: Features a stable regenerative braking system, effectively extending the vehicle's driving range.
Enhanced Safety: Optional anti-rollback function prevents the vehicle from slipping on inclines.
Integrated Drive: Optional built-in coil drive supports soft start and mechanical electromagnetic braking functions.
Comprehensive Protection: Engineered with built-in safeguards against overcurrent, overvoltage, undervoltage, over-temperature, and accelerator faults to ensure system reliability.
Flexible Programming: Supports parameter adjustment and online programming via CAN bus to meet customized functional requirements.

Product Specifications

Product Series	Model	Voltage Range (V)	Rated Output Current (A)	Max Output Current (A)	Max Output Power (kW)
C730/750/760	3215	48-72	50	150	5
C730/750/760	3218	48-72	65	180	9
C730/750/760	3223	48-72	75	230	12
C730/750/760	3228S	48-72	90	280	15

Selection List:

Product Series	Model	Voltage Range (V)	Rated Output Current (A)	Max Output Current (A)	Max Output Power (kW)
C750/760	5230	48-72	95	300	17
C750/760	5233	48-72	100	330	19
[Redacted]	5235	48-72	105	350	[Redacted]
C750/760	5238	48-72	110	380	23

Technical Characteristics

Applicable Motors: Permanent Magnet Synchronous Motor (PMSM) / AC Asynchronous Motor
Position Detection: Magnetic Encoder / Quadrature Encoder
Operating Temperature: -30°C to +55°C
IP Rating: IP66
Cooling Method: Natural Cooling (Fan optional)
Communication: Serial Port / CAN Bus
Optional Accessories: CAN Communication Card, Shunt, Signal Wiring Harness, Cooling Fan
Industry Applications: Electric Forklifts, Sightseeing Vehicles, Electric Sanitation Vehicles, etc.
