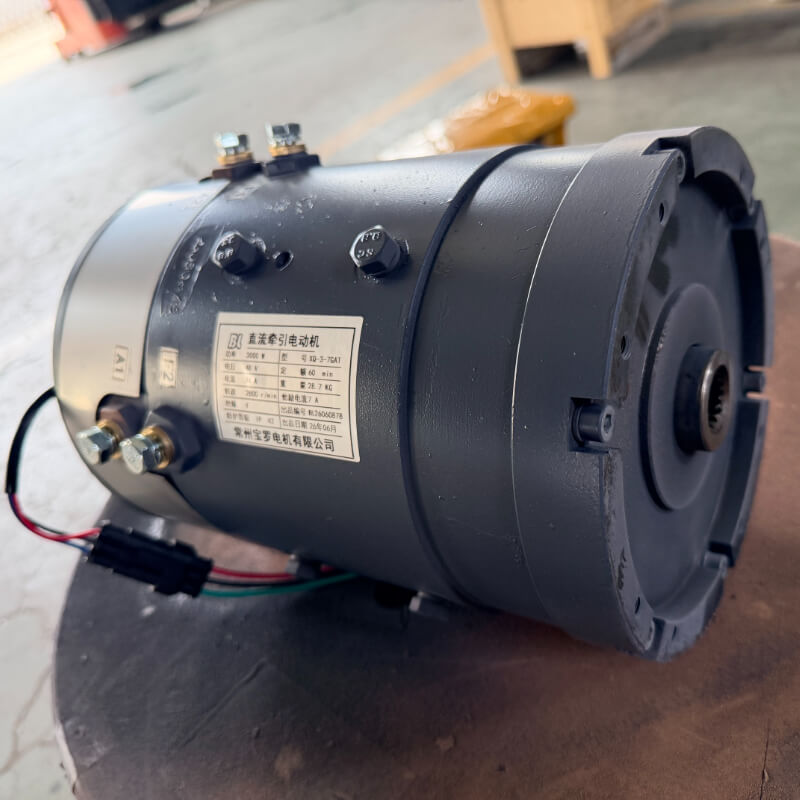

48V 3KW DC Series Wound Traction Motor (Model: XQ-3-7GAT)

Motor Specifications

Product Overview

• Type: DC series wound brushed motor; armature and field windings are connected in series.

• Performance: Features load-adaptive speed regulation, robust overload capacity, and a responsive carbon brush commutation system.

• Value: Structurally simple and cost-effective, engineered for durable operation and straightforward maintenance.

Core Features

• High Starting Torque: Delivers exceptional power for heavy-load startup conditions.

• Soft Mechanical Characteristics: Speed naturally decreases as load increases, providing inherent shock absorption and buffering.

• Minimalist Construction: Lowers failure rates and ensures highly convenient maintenance and servicing.

• AC/DC Universal: Compatible with both alternating and direct current, adapting to versatile power supply scenarios.

Applications

Engineered for equipment requiring heavy-duty starting, intermittent operation, or short-time duty cycles:

• Power Tools: Angle grinders, electric drills, cutting machines, blowers.

• Home Appliances: Vacuum cleaners, juicers, high-speed blenders, mixers.

• Light Power Equipment: Winches, light-duty cranes, agricultural machinery.

• Specialty Vehicles: Electric flatbed carts, material handling trucks, rail vehicles, low-speed vehicles, street sweepers.

Product FAQs

Q1: What are the advantages of a DC series-wound brushed motor like the XQ-3-7GAT?

A1: The XQ-3-7GAT is a DC series-wound motor, meaning the armature and field windings are connected in series. This specific configuration delivers two massive operational advantages:

• High Starting Torque: It provides exceptional initial power, making it perfect for heavy-load startup conditions without stalling.

• Soft Mechanical Characteristics: The motor's speed naturally and smoothly decreases as the workload increases. This provides inherent shock absorption and buffering, protecting your mechanical transmission systems from sudden stress or impact.

Q2: Can this 48V DC motor really be used with both AC and DC power supplies?

A2: Yes, absolutely. Due to its universal series-wound architecture, the magnetic fields of both the stator and rotor reverse simultaneously when alternating current is applied. This allows the motor to operate effectively on both AC and DC power scenarios. While its rated specification is optimized for 48V DC (ideal for battery-powered carts and winches), its multi-power compatibility offers ultimate engineering versatility for specialty industrial setups.

Q3: What does the "Dual Shaft Extension with Single Keyway" design mean for my equipment?

A3: The dual shaft extension feature means the motor shaft projects from both ends of the motor housing, and each side features a standard single-keyway cylindrical shaft. This layout allows you to drive two separate loads simultaneously or mount a drive mechanism (like a wheel or gear) on one end while attaching a brake system, cooling fan, or auxiliary mechanism on the other. It is incredibly popular for electric flatbed carts, street sweepers, and dual-drive agricultural machinery.
