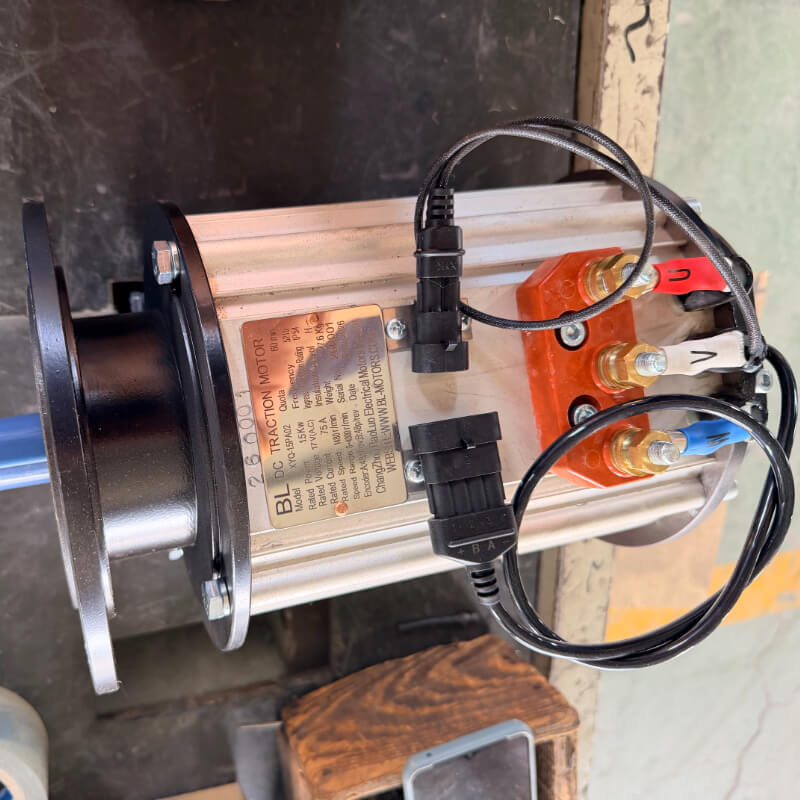

24V 1.5kW AC Asynchronous Battery Traction Motor (Model: XYQ-1.5PA02)

Motor Specifications

Product Overview

This battery-powered three-phase AC asynchronous motor is engineered to provide reliable power for various battery-driven vehicles, serving effectively as traction motors, pump motors, or power steering motors.

• Core Applications: Electric forklifts, pallet trucks, tow tractors, golf carts, sightseeing vehicles, and electric cars.

• Performance Advantages: Features a wide speed regulation range, robust overload capacity, high mechanical strength, and highly stable operation. Engineered as a highly efficient and eco-friendly drive solution.

• Versatile Capability: Easily handles demanding operational conditions, including heavy-load startups, full-load incline climbing, and high-speed flat-road cruising.

Operating Conditions & Customization

• Standard Operating Environment:

  • Ambient Temperature: ≤ 45°C

  • Relative Humidity: ≤ 90% (at 20°C)

  • Altitude: ≤ 1000m

• Voltage Compatibility: Suitable for 24V, 48V, and 72V battery systems. Rated AC voltage and rated frequency can be custom-designed upon request.

• Standard Duty Cycle: S2-30min or S2-60min.

Product FAQs

Q1: Why does this 24V DC battery-powered motor list a Rated Voltage of 17V AC?

A1: This model is a three-phase AC asynchronous motor (induction motor) designed specifically for battery-powered electric vehicles. It cannot be connected directly to a battery.

• 24V DC refers to the nominal voltage of your vehicle's battery pack supply.

• The DC power must pass through a motor controller/inverter, which converts and modulates it into a 17V AC three-phase output to drive the motor. This AC drive system delivers superior speed regulation, higher torque at heavy startups, and better energy efficiency compared to traditional brushed DC motors.

Q2: What does the S2-60min duty cycle mean? Can this electric traction motor run continuously?

A2: The S2-60min duty cycle designates a short-time operation rating. It means the motor can run continuously at its maximum rated power (1.5 kW) for up to 60 minutes before it needs to stop and cool down to ambient temperature. However, in real-world material handling applications—such as electric forklifts or pallet jacks—the duty cycle is naturally intermittent (stop-and-go). Therefore, it easily supports full-day warehouse operations. For added safety, the motor features a built-in temperature sensor that integrates with your controller to prevent overheating.

Q3: What vehicles is this 1.5 kW AC motor compatible with, and can it be customized for 48V or 72V systems?

A3: This 1.5 kW AC motor comes standard with a B5 flange mount and a 48 P/rev speed encoder, making it a perfect drop-in solution for electric pallet trucks, walkie stackers, golf carts, tow tractors, and power steering pumps. Yes, we offer full OEM/ODM customization. While the stock model is engineered for 24V systems, we can custom-design the rated AC voltage, frequency, and mounting brackets to seamlessly match your 48V or 72V battery systems and specific vehicle chassis requirements.
