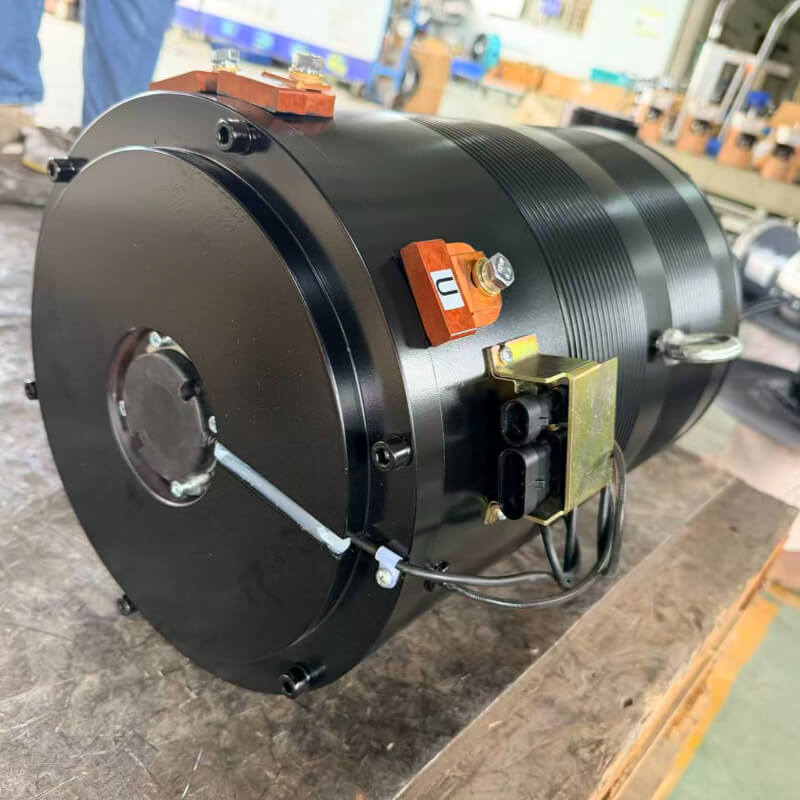

80V 30kW 3-Phase AC VFD Traction Motor XYQ-30CF01

Typical Applications

• Heavy-duty electric forklift / Class I-II / heavy warehousing (≥3 tonne payload)
• Port equipment / container handler / electric reach stacker / construction machinery
• Electric truck / logistics vehicle / heavy-duty cargo hauler

Technical Specifications

AC Induction Motor Family

The XYQ-30CF01 is a 3-phase AC squirrel cage induction motor — it belongs to the induction motor family (also called an asynchronous motor, since the rotor always runs slightly slower than the rotating stator field). There are no brushes or commutator: the rotor is a solid cage of cast aluminum or copper bars shorted at both ends, which makes it extremely rugged and almost maintenance-free. That durability is the main reason AC induction is the dominant choice for heavy industrial traction above ~15 kW — no brush wear means longer service intervals and lower total cost of ownership for vehicles that run two or three shifts a day.

Why Variable Frequency Drive (VFD)

The XYQ-30CF01 is designed to run on a variable frequency drive (inverter), not directly on fixed mains. In a vehicle the inverter sits on the ≈80V DC battery bus and synthesizes the 56V 3-phase AC the motor needs from that DC. The inverter varies both frequency and voltage together to control motor speed smoothly from 0 rpm all the way up to 5875 rpm, and to deliver maximum torque at zero speed for vehicle launch. Two practical consequences: 1. you can match the motor's speed profile to your vehicle's driving cycle (gentle acceleration for a port truck, full torque for a forklift lift cycle) without a transmission; 2. regenerative braking is straightforward — the inverter reverses power flow and pushes current back into the battery pack. The quadrature encoder (A/B 64 ppr) closes the speed loop and lets the controller hold the motor at exactly the commanded rpm even under sudden load changes.

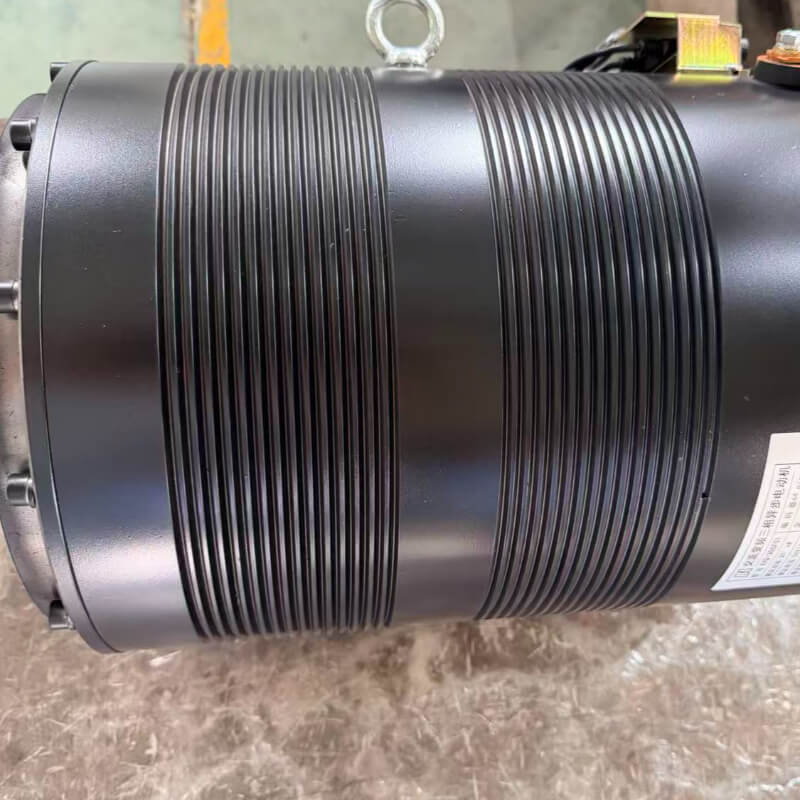

Iron Housing vs Aluminum

The XYQ-30CF01 uses a cast-iron housing rather than die-cast aluminum. Iron dissipates heat better per unit volume at this power level and is mechanically stiffer, so the motor runs cooler and quieter under S2-60min duty and tolerates the vibration environment of a heavy forklift or port truck without resonance issues. The trade-off is weight: iron-shell motors are heavier than aluminum equivalents of the same power, which is fine for counterbalanced industrial vehicles where weight under the chassis is actually helpful for stability.

How to Choose the Right Traction Motor

• DC vs AC: AC induction (this motor) is the right choice above ~15 kW and for any vehicle that runs multi-shift. For lighter, lower-duty applications our DC series wound traction motors (XQ-series) are simpler and cheaper to control.
• By power: 30 kW suits heavy forklifts (≥3 tonne), port trucks and large electric logistics vehicles. Lighter walkies can use 3-5 kW; medium forklifts 7-15 kW.
• By voltage: DC input is an ≈80V battery pack (heavy-forklift / port standard; ~84–88V at full charge); the VFD converts it to 56V 3-phase AC for the motor. Confirm your inverter's DC bus voltage before ordering.
• By speed: 2800 rpm rated, 0-5875 rpm working range. Confirm against your wheel/gear ratio and VFD setting.

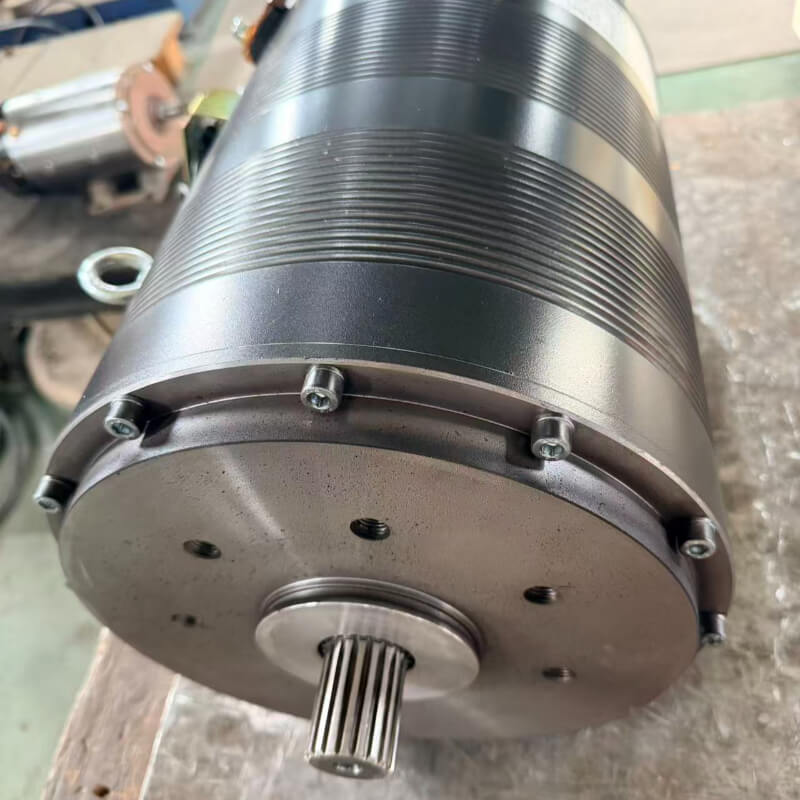

• By shaft: external splined shaft (Z19, module 1.667, +0.8mm modification) — confirm your gearbox input spec accepts this spline before ordering. Other spline counts and modules available on request.
• By mount: mounting style is application-specific (B5 flange, B14 flange or B3 foot) — confirm with engineering when you send RFQ.
• Customization: voltage, current, encoder PPR, shaft spline and mounting all customizable. Send your inverter datasheet and gearbox input spec to engineering.

Not sure which motor fits your vehicle? Contact our engineering team with your battery voltage, vehicle weight, gearbox input spec and VFD/inverter model for a matched drive solution.
