Motor Specifications
| Parameter |
Specification |
| Motor Model |
XQ-18-7P |
| Rated Power |
18 kW |
| Rated Voltage |
96V DC |
| Rated Current |
228A |
| Rated Speed |
1500 rpm |
| Duty Cycle |
30 min |
| IP Rating |
IP44 |
| Excitation Mode |
Series Wound |
| Structural Features |
Standard B5 Flange |
Product Overview

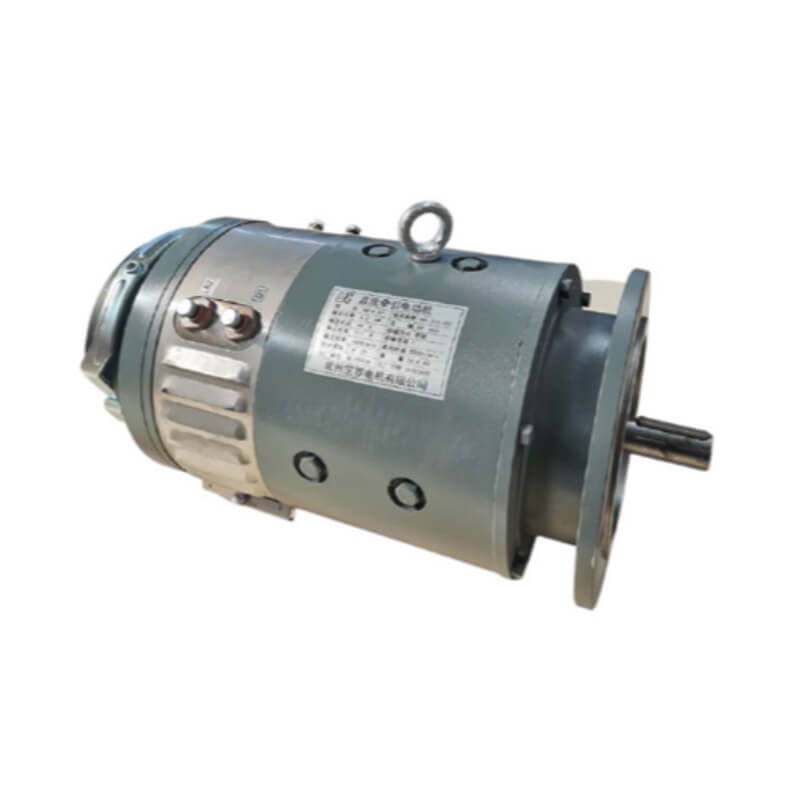

The Baoluo XQ-18-7P is an 18 kW 96V DC series wound brushed motor designed for high-power traction and heavy-load applications. With its high starting torque, strong overload capability, and load-adaptive speed characteristics, the motor is particularly suitable for vehicles and equipment requiring powerful low-speed traction.
The motor features a standard B5 flange mounting structure for convenient integration into existing mechanical drive systems. Its 96V DC configuration makes it suitable for battery-powered industrial vehicles and electric conversion projects, including the electrification of traditional diesel-powered tractors and other heavy-duty equipment.
Core Features
- High Power & High Torque
The 18 kW output and series-wound design provide strong starting torque for heavy-load acceleration, climbing, towing, and traction applications.
- Excellent Heavy-Load Starting Performance
The series-wound motor characteristics provide high torque at low speed, making it suitable for vehicles that frequently start under load.
- Strong Overload Capability
Designed to handle demanding intermittent operating conditions and temporary high-load requirements.
- Load-Adaptive Speed Characteristics
Motor speed naturally changes with load, providing suitable traction characteristics for heavy-duty mobile equipment.
- 96V Battery System
Suitable for high-power battery-electric vehicles and equipment using 96V DC power systems.
- B5 Flange Mounting
The standard flange structure simplifies installation and integration with gearboxes and existing vehicle transmission systems.
- Simple & Maintainable Construction
The brushed DC design provides a straightforward mechanical structure and convenient maintenance for industrial applications.
Applications
The XQ-18-7P is designed for high-power electric traction systems and heavy-duty equipment requiring high starting torque, strong pulling force, and reliable intermittent operation.
- Heavy-Duty Electric Tractors – Provides high torque for agricultural and industrial tractors requiring strong pulling capability.
- Diesel-to-Electric Tractor Conversion – Suitable for replacing traditional diesel engines in tractor electrification and oil-to-electric conversion projects.
- Heavy-Duty Tow Tractors – Provides strong low-speed traction for towing trailers, equipment, and industrial loads.
- Electric Transfer Carts – Suitable for rail-guided and trackless transfer carts carrying heavy materials.
- Industrial Transport Vehicles – Used in factories, warehouses, ports, and industrial sites for battery-powered transportation.
- Mining Transport Vehicles – Provides high starting torque for heavy-duty material transportation in demanding environments.
- Electric Forklifts & Material Handling Vehicles – Suitable for high-load traction applications requiring strong acceleration and climbing capability.
- Heavy-Duty AGVs – Can be integrated into high-payload AGV platforms together with gearboxes, drive wheels, and motor controllers.
- Electric Utility Vehicles – Suitable for specialized industrial vehicles requiring high torque and battery-powered operation.
- Special Vehicle Electrification – Can be used in customized oil-to-electric conversion projects for traditional industrial and agricultural equipment.
Frequently Asked Questions
1. What makes the XQ-18-7P suitable for heavy-duty traction?
The 18 kW power rating combined with a series-wound configuration provides high starting torque and strong low-speed traction performance, making the motor suitable for heavy loads, towing, climbing, and frequent starts under load.
2. Can the XQ-18-7P be used for diesel-to-electric tractor conversion?
Yes. The 96V DC motor is suitable for tractor electrification and diesel-to-electric conversion projects. The standard B5 flange can also simplify mechanical integration with an existing transmission or gearbox, subject to the vehicle's torque, speed, and mechanical interface requirements.
3. What other vehicles can use this 18 kW DC traction motor?
The motor can be used in heavy-duty tow tractors, electric transfer carts, industrial transport vehicles, mining vehicles, high-load AGVs, forklifts, and customized battery-powered special vehicles requiring high starting torque and strong traction performance.
