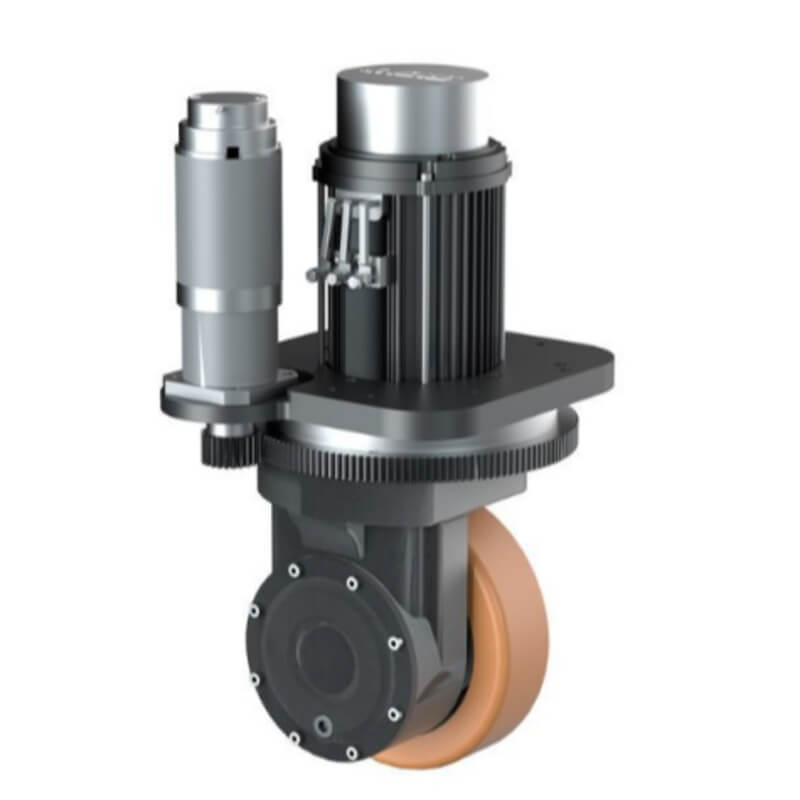

Vertical Drive Wheel with Steering 500–6500kg Load 150–470mm (BLEC Series)

The BLEC vertical drive wheel with steering integrates a drive motor and a steering motor in one compact vertical unit. The bevel gear transmission offers high mechanical efficiency, low noise, and substantial torque output in a small footprint. Available with or without steering, it supports 12–96V input and motors from 400W to 16KW, making it adaptable across light warehousing to heavy manufacturing.

Category :
AGV Drive Wheel
Release time : 2026-08-24

Message

Detailed Description

Product Overview

The BLEC vertical drive wheel with steering integrates a drive motor and a steering motor in one compact vertical unit. The bevel gear transmission offers high mechanical efficiency, low noise, and substantial torque output in a small footprint. Available with or without steering, it supports 12–96V input and motors from 400W to 16KW, making it adaptable across light warehousing to heavy manufacturing.

Key Features

Bevel Gear Structure: Compact, low noise, high output torque.
Full Range of Wheel Diameters: 150, 230, 250, 310, 343, 406, 457, 470 mm to match chassis clearances.
Load Range: 500kg–6500kg per wheel across the series.
12V–96V Input: Vertical with or without steering.
Tread Options: Polyurethane (PU) or rubber wheel.
Motor Choices: Brushed DC, AC induction, or PM servo, 400W–16KW.
Optional Parts: Shock-absorption spring, limit switch, home sensor, incremental/absolute encoder, potentiometer.
Custom Series: Explosion-proof, low-temperature, high IP rating.

Target Applications

Forklifts: Compact design makes forklifts smaller, more agile and easier to operate.
AGV: Ideal for in-plant material handling automation; navigates narrow aisles with strong motors for varied loads.
Mobile Robots / Magnetic-Guided Systems: For repetitive transport routines and precise navigation.

Model Overview — BLEC Series Vertical Drive Wheel with Steering

The BLEC series covers 500kg up to 6500kg load across wheel diameters 150–470mm, with an integrated steering motor for each model. Choose by diameter and payload.

Model	Rated Voltage	Drive Power (W)	Wheel Diameter (mm)	Max Load (kg)	Steering Power (W)	Typical Application
BLEC-150	48V	750	150	500	200	Light AGV, warehouse robots, small carts
BLEC-230	24V / 48V	1500	230	1500	400–650	Compact AGV, AMR, assembly tugs
BLEC-250	24V / 48V	1600–2500	250	1800	400–650	Compact AGV, magnetic-guided carts
BLEC-310	24V / 48V	3000	310	2200	600	Mid-duty AGV, warehouse shuttles
BLEC-343	48V	6500	343	3200	1200	Heavy AGV, automated forklifts
BLEC-406	48V	8000	406	6000	2000	Heavy material lifters, storage/retrieval
BLEC-457	80V	10000	457	6500	3000	Extra-heavy AGV, heavy shuttles
BLEC-470	80V	10000	470	6500	3000	Extra-heavy AGV, heavy shuttles

Technical Specifications

Model	Travel Section (Driving)									Steering Section
Model	Rated Voltage (V)	Motor (W)	Rated Current (A)	Speed (RPM)	Rated Torque (N·m)	Gear Ratio (i)	Output Torque (N·m)	Max Torque (N·m)	Max Load (kg)	Rated Voltage (V)	Motor (W)	Rated Current (A)	Speed (RPM)	Rated Torque (N·m)	Gear Ratio (i)	Output Torque (N·m)
BLEC-150	48	750	20	3000	2.4	22.5	45.9	114	500	48	200	6.4	3000	–	40	30
BLEC-230	24	1500	76	2590	5.5	30	108	300	1500	24	650	36	3487	1.78	50	71.2
BLEC-230	24	1500	76.2	3200	4.5	30	108	300	1500	24	400	24	3000	1.27	33.92	34.4
BLEC-230	48	1500	34	2500	5.73	30	145	365	1500	48	400	9.9	3000	1.27	50	42
BLEC-250	24	1600	100	2400	6.4	19	103	260	1800	24	650	36	3487	1.78	50	71.2
BLEC-250	48	1600	35	2500	6.11	19	98.6	246	1800	24	400	24	3000	1.27	33.92	34.4
BLEC-250	48	2500	63	2500	9.55	19	163	450	1800	48	400	9.9	3000	1.27	50	42
BLEC-310	24	3000	137	2500	11.46	23	224	650	2200	24	600	38.5	2275	2.52	45	95.6
BLEC-310	48	3000	68	2500	11.5	23	224	650	2200	48	600	15	2500	2.3	50	108
BLEC-343	48	6500	180	2800	23	20.2	395	988	3200	48	1200	33	3000	3.82	50	191
BLEC-406	48	8000	207	1420	54	24	1054	2592	6000	48	2000	57	3000	6.4	50	305
BLEC-457	80	10000	142	1200	85	23.32	1684	4507	6500	80	3000	43	1500	19	50	305
BLEC-470	80	10000	142	1200	85	23.32	1684	4507	6500	80	3000	43	1500	19	50	305

How to Choose the Right Vertical Drive Wheel with Steering

By payload: 500kg → BLEC-150; 1500kg → BLEC-230; 1800kg → BLEC-250; 2200kg → BLEC-310; 3200kg → BLEC-343; up to 6500kg → BLEC-406/457/470.
By wheel diameter: 150–250mm for compact chassis; 310–343mm mid; 406–470mm for heavy shuttles and lifters.
By voltage: 24V / 48V across most models; 80V for BLEC-457/470 high-power.
By motor power: 750W light duty up to 10000W heavy; brushed DC/AC/servo 400W–16KW available.
Customization: PU or rubber tread, encoders, brakes, suspension, explosion-proof / low-temp / high-IP on request.

Not sure which model fits your AGV? Contact our engineering team with your payload, floor and speed requirements for a matched drive solution.

Frequently Asked Questions

Q: What is a vertical drive wheel with steering used for?

A: It integrates a drive motor and a steering motor in one compact vertical unit, enabling AGVs and industrial robots to move forward/backward and turn within a minimal footprint. Ideal for forklifts, AGVs, and material-handling robots in narrow aisles.

Q: Can the wheel and motor be customized?

A: Yes. Choose PU or rubber tread, brushed DC / AC / servo motors 400W–16KW, voltages 12–96V, and options such as shock-absorption spring, encoders, limit switches, explosion-proof or low-temperature builds.

Q: Are 2D/3D drawings available?

A: Yes. We provide PDF drawings, 3D STEP models, and custom parameter modifications for motor power, voltage, and wheel material to match your AGV chassis.
