| Parameter | Specification |
|---|---|
| Motor Model | XYQD-25G01 |
| Motor Type | 3-phase AC squirrel cage induction (VFD-driven) |
| Rated Power | 25 kW |
| Rated Voltage | 68V 3-phase AC (VFD output — see DC bus below) |
| DC Bus / Battery Voltage | 96V DC (battery pack feeding the VFD) |
| Rated Current | 262 A |
| Rated Frequency | 68.7 Hz |
| Rated Speed | 2000 rpm |
| Speed Range | 0–5000 rpm |
| Duty Cycle | S2-60min |
| Insulation Class | H |
| IP Rating | IP44 |

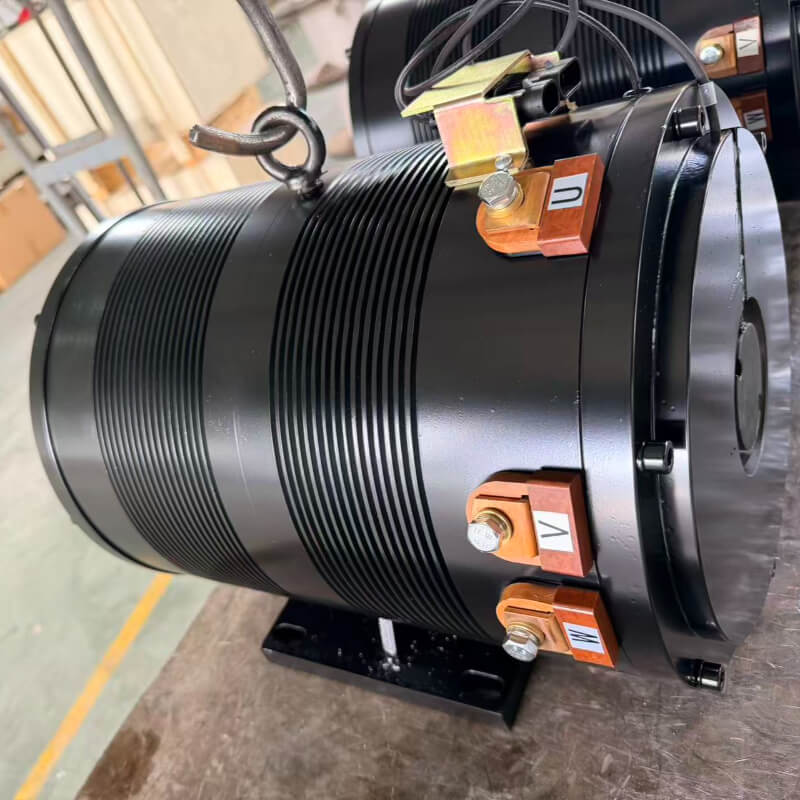

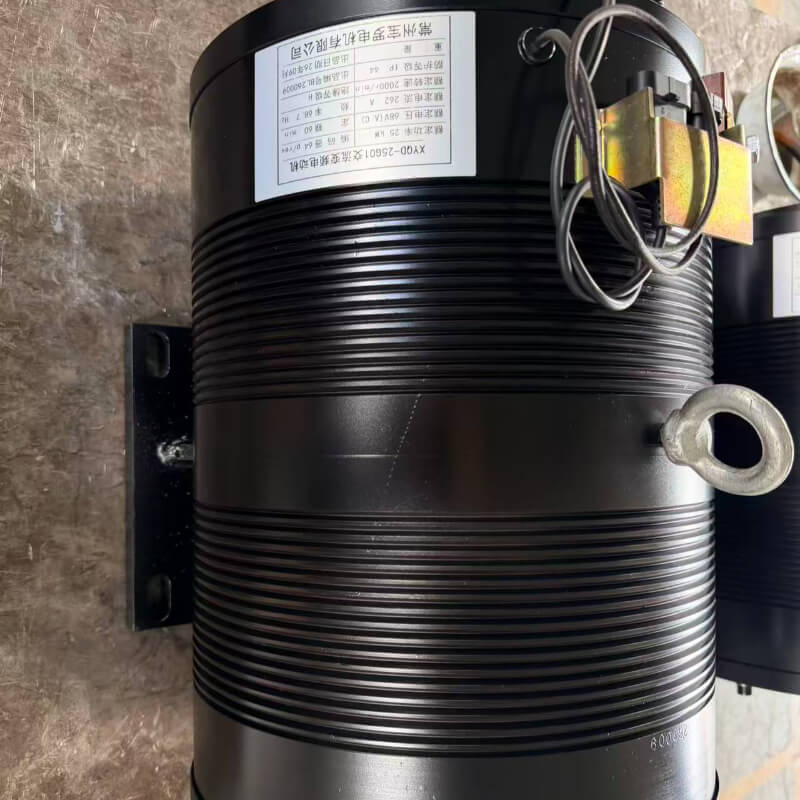

| Mounting | B3 Foot Mount |
| Encoder | A: 64 p/rev / B: 64 p/rev (incremental) |
| Drawing Number | OBL.300.1384 |
The XYQD-25G01 is a 3-phase AC squirrel cage induction motor — it belongs to the induction motor family (also called an asynchronous motor, since the rotor always runs slightly slower than the rotating stator field). There are no brushes or commutator: the rotor is a solid cage of conductive bars shorted at both ends, which makes it extremely rugged and almost maintenance-free. That durability is why AC induction is the right choice for high-power auxiliary service above ~10 kW — no brush wear means longer service intervals and lower total cost of ownership for equipment that runs continuous hydraulic duty.
The XYQD-25G01 runs on a variable frequency drive (inverter), not directly on fixed mains. The inverter sits on the 96V DC battery bus and synthesizes the 68V 3-phase AC the motor needs. It varies both frequency and voltage together to control motor speed smoothly from 0 rpm up to 5000 rpm, and to deliver maximum torque at zero speed. Two practical consequences: 1. you can match the motor's speed profile to your hydraulic cycle without a transmission; 2. the onboard A/B encoder (64 p/rev) closes the speed loop, letting the controller hold commanded rpm even under sudden load changes — essential for low-speed high-torque hydraulic operation.
The XYQD-25G01 uses Class H insulation (rated for 180°C) rather than the more common Class F (155°C) on smaller traction motors. At 25 kW continuous hydraulic duty, the extra thermal margin keeps windings cooler and extends insulation life. Combined with the IP44 enclosure and rigid B3 foot frame, the motor is built for the vibration and thermal environment of industrial hydraulic stations — not light-duty intermittent service.
Not sure whether AC or DC auxiliary motor fits your system? Contact our engineering team with your battery voltage, peak torque and duty cycle for a matched drive solution.
Q: Should I pick an AC or a DC auxiliary motor?
A: Above ~10 kW and for continuous hydraulic duty, AC (this motor) is the better choice — brushless, cooler-running with Class H insulation, and easy closed-loop speed control through the VFD plus encoder. Below ~10 kW or for simpler battery-direct drive, our DC series wound auxiliary motors (XQD-series, e.g. XQD-6.3-1SW) are simpler and cheaper to integrate.
Q: Why does XYQD-25G01 need a VFD and an encoder?
A: As an AC induction motor with a 0-5000 rpm range, XYQD-25G01 must be driven by a VFD that takes 96V DC and outputs 68V AC three-phase at 68.7 Hz. The onboard A/B encoder (64 p/rev) provides closed-loop feedback — required for low-speed high-torque operation down to standstill.
Q: Is the mounting style B3, B5 or B35?
A: This model is built as B3 foot mount (foot + horizontal base) per the nameplate. B5 flange or B35 foot+flange variants can be built on request — confirm the mounting style with our engineering team when you send RFQ. We customize mounting to your application.
Baoluo is a traction-motor manufacturer based in Changzhou, China, with in-house production and load testing. The certificate above shows our factory certification.
Armature and stator winding on our production line. Every motor is hand-built and tested before shipment.
Warranty: 18 months from the delivery date. MOQ: 1 unit. Lead time: 1 month after order confirmation.
