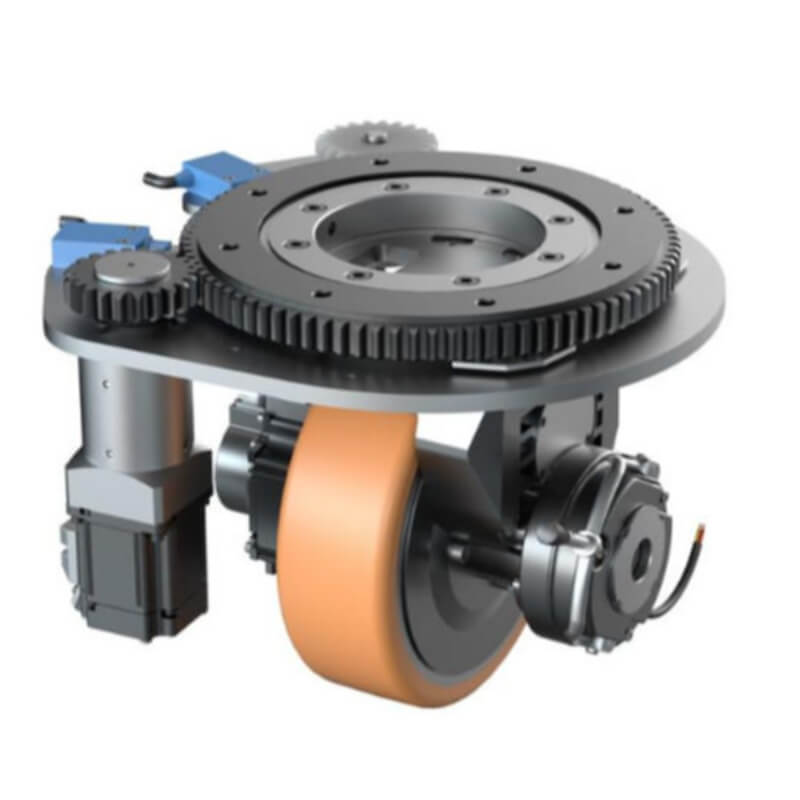

AGV Drive Wheel 48V Horizontal Parallel Shaft 800–3000kg Load (BEC Series)

Baoluo Motor horizontal parallel shaft AGV drive wheel is specially designed for automated guided vehicles (AGV), autonomous mobile robots (AMR), electric forklifts and industrial automation equipment. The compact integrated structure combines drive motor, gearbox, steering mechanism and wheel assembly into one complete drive solution, providing stable transmission performance, high torque output and precise steering control. With high load capacity and reliable operation, the AGV drive wheel is suitable for medium and heavy-duty transportation systems, warehouse logistics equipment and intelligent manufacturing applications. Different motor types, wheel materials, reduction ratios and installation structures can be customized according to customer requirements. OEM and ODM services are supported.

Category :
AGV Drive Wheel
Release time : 2026-05-28

Message

Detailed Description

Product Overview

Our electric drive wheel assembly integrates motor, gearbox, wheel and steering mechanism into a compact structure, providing flexible movement and efficient power transmission. OEM customization is available according to voltage, wheel diameter, load capacity and installation requirements.

Product Features

Compact parallel shaft structure
High torque output with stable transmission
Smooth multidirectional steering performance
Low noise and high efficiency operation
Suitable for medium and heavy-duty AGV systems
OEM & ODM customization support
Long service life and low maintenance

Optional Components

Shock absorption spring
Limit switch
Home position switch
Incremental encoder
Absolute encoder
Electromagnetic brake

Applications

AGV (Automated Guided Vehicles)
AMR (Autonomous Mobile Robots)
Electric forklifts
Warehouse logistics systems
Industrial automation equipment
Electric flat carts

Model Overview — BNEC Series AGV Drive Wheel

The BNEC series horizontal parallel shaft AGV drive wheel covers light-duty to heavy-duty applications, from 24V/400W (800 kg load) up to 48V/4000W (3000 kg load). Choose the model that matches your vehicle voltage, power and payload requirements.

Model	Rated Voltage	Power	Max Load	Gear Ratio (i)	Max Torque (N·m)	Typical Application
BNEC-167	24V	400W	800 kg	21 / 32	69–105	Light AGV, small transfer carts
BNEC-210	48V	3000W	1500 kg	32	576	Medium-heavy AGV, warehouse logistics
BNEC-220	48V	750–1000W	1000 kg	28 / 40	174–306	Compact AMR, electric flat carts
BNEC-250	48V	1500–2000W	1600 kg	27 / 40	480–735	Industrial automation, material handling
BNEC-280	48V	2500W	2000 kg	28 / 40	872–1040	Heavy-duty AGV, smart manufacturing
BNEC-300	48V	3000–4000W	3000 kg	21 / 40	642–1080	Heavy logistics, intelligent production lines

Technical Specifications

Model	Rated Voltage (V)	Power (W)	Rated Current (A)	Speed (RPM)	Rated Torque (N·m)	Gear Ratio (i)	Output Torque (N·m)	Max Torque (N·m)	Max Load (kg)
BNEC-167	24	400	18.4	3000	1.27	21	23	69	800
BNEC-167	24	400	18.4	3000	1.27	32	35	105	800
BNEC-167	48	750	18	3000	2.4	21	40	120	800
BNEC-167	48	1000	26.4	3000	3.18	32	88	240	800
BNEC-210	48	3000	68	3000	9.55	32	260	576	1500
BNEC-220	48	750	18	3000	2.4	28	58	174	1000
BNEC-220	48	750	18	3000	2.4	40	82	246	1000
BNEC-220	48	1000	26.4	3000	3.18	40	102	306	1000
BNEC-250	48	1500	35	2000	7.16	27	165	480	1600
BNEC-250	48	1500	35	2000	7.16	40	245	735	1600
BNEC-250	48	2000	50	2000	9.55	27	220	480	1600
BNEC-250	48	2000	50	2000	9.55	40	325	880	1600
BNEC-280	48	2500	55	2000	11.9	28	284	872	2000
BNEC-280	48	2500	55	2000	11.9	40	405	1040	2000
BNEC-300	48	3000	74	2500	12	21	214	642	3000
BNEC-300	48	3000	74	2500	12	40	408	1080	3000
BNEC-300	48	4000	96	2500	15	21	268	780	3000
BNEC-300	48	4000	96	2500	15	40	510	1080	3000

How to Choose the Right AGV Drive Wheel

By voltage: Choose 24V (BNEC-167) for low-voltage compact vehicles; choose 48V for all medium to heavy-duty AGV and AMR systems (BNEC-210 to BNEC-300).
By payload: 800–1000 kg → BNEC-167 / BNEC-220; 1500–2000 kg → BNEC-210 / BNEC-250 / BNEC-280; up to 3000 kg → BNEC-300.
By power: 400W for light duty, 750–2000W for general industrial use, 2500–4000W for high-torque heavy-load transport.
By torque: Need max torque above 800 N·m? Select BNEC-280 or BNEC-300.
Customization: All models support OEM/ODM — voltage, wheel diameter, load capacity, reduction ratio and mounting can be tailored to your chassis.

Not sure which model fits your AGV? Contact our engineering team with your voltage, payload and speed requirements for a matched drive solution including controller.

Frequently Asked Questions

Q: Can the AGV drive wheel support OEM customization?

A: Yes. We provide OEM and ODM customization according to your requirements.

Q: What applications is this drive wheel suitable for?

A: It is suitable for AGV, AMR, electric forklifts and industrial automation systems.

Q: What motor types are available?

A: Brushed DC motors, AC induction motors and permanent magnet servo motors are available.

Q: Can the motor and controller be matched together?

A: Yes. Baoluo Motor can provide complete drive solutions including controllers.
