Horizontal Shock-Absorbing Drive Wheel 500–1600kg Load 150–250mm (BJEC Series)

BJEC series horizontal shock-absorbing drive wheel with steering integrates a spring damping system on a horizontal drive wheel for higher load capacity and stable, low-vibration transport. Wheel diameters 150–250mm, load 500–1600kg, 12–96V — for AGV carrying fragile or high-value payloads. Baoluo is a leading mobile-robot core-component supplier with 22 years of factory experience.

Category :
AGV Drive Wheel
Release time : 2026-08-25

Message

Detailed Description

Product Overview

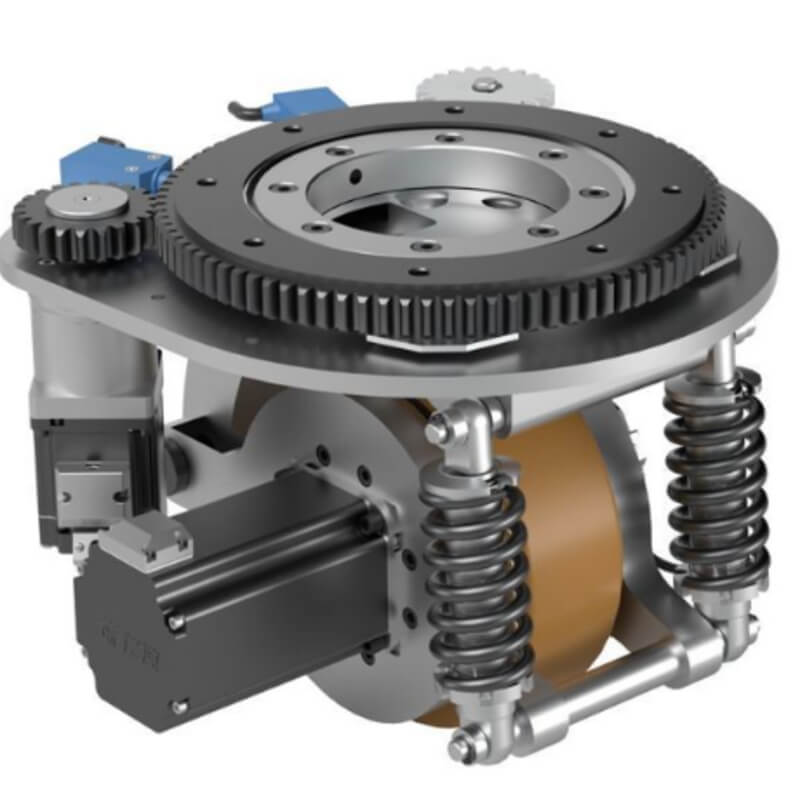

The BJEC horizontal shock-absorbing steering wheel integrates a spring damping module on a horizontal drive wheel, improving load capacity and stability while cushioning vibration so sensitive cargo stays protected in transit. Available with or without steering, it supports 12–96V input and motors from 400W to 15KW, and is engineered for demanding industrial environments.

Key Features

Parallel-Shaft or Planetary Reducer: Compact, low noise, high output torque.
Wheel Diameter Range: 150, 167, 198, 220, 250 mm to match chassis clearances.
Load Range: 500kg–1600kg per wheel across the series.
12V–96V Input: Horizontal with or without steering.
Integrated Damping: High-quality spring + high-strength alloy for higher load capacity and longer life.
Tread Options: Polyurethane (PU) or rubber wheel.
Motor Choices: Brushed DC, AC induction, or PM servo, 400W–15KW.
IP Rating: IP20–IP65 for dusty or wet environments.
Optional Parts: Shock-absorption spring, limit switch, home sensor, incremental/absolute encoder, potentiometer.
Custom Series: Explosion-proof, low-temperature, high IP rating.

Three core advantages: high-quality damping spring (durable, high-strength); limit switch for safe operation; high-strength alloy material that raises load capacity.

Target Applications

Semiconductor & Electronics AGV: Protects wafers, panels and precision parts from transit vibration.
Medical / Lab Transport: Quiet, low-vibration movement of sensitive instruments and samples.
Food & Beverage Handling: Stable transport of bottled or packaged goods.
General AGV / AMR: Any automated vehicle carrying fragile or high-value payloads.

Model Overview — BJEC Series Horizontal Shock-Absorbing Drive Wheel

The BJEC series covers 500kg up to 1600kg load across wheel diameters 150–250mm, with an integrated steering motor and damping module for each model. Choose by diameter and payload.

Model	Travel Voltage	Travel Power (W)	Wheel Diameter (mm)	Max Load (kg)	Steering Power (W)	Typical Application
BJEC-150P	48V	750	150	500	200	Light AGV, warehouse robots carrying sensitive electronics
BJEC-167P	48V	1000	167	600	200	Compact AGV, small carts with fragile goods
BJEC-198P	48V	1500	198	1000	400	Mid AGV, lab / material handling
BJEC-220P	48V	1500	220	1000	400	Mid AGV, assembly tugs
BJEC-250P	48V	1500	250	1600	400	AGV, automated handling with fragile payloads

Technical Specifications

Model	Travel Section (Driving)								Steering Section
Model	Motor Type	Power (W)	Voltage (V)	Current (A)	Speed (RPM)	Reduction (i)	Load (kg)	IP Rating	Motor Type	Power (W)	Voltage (V)	Current (A)	Speed (RPM)	Reduction (i)	Load (kg)	IP Rating
BJEC-150P	Servo	750	48	18	3000	21	500	65	Servo	200	48	6	3000	50	–	65
BJEC-167P	Servo	1000	48	27	3000	32	600	65	Servo	200	48	6.4	3000	285	–	65
BJEC-198P	Servo/AC/DC	1500	48	40	3000	32	1000	20–65	Servo/AC/DC	400	48	9.9	3000	50	–	20–65
BJEC-220P	Servo	1500	48	27	3000	40	1000	65	Servo	400	48	11.5	3000	200	–	65
BJEC-250P	Servo/AC/DC	1500	48	35	3000	40	1600	20–65	Servo/AC/DC	400	48	9.9	3000	50	–	20–65

How to Choose the Right Horizontal Shock-Absorbing Drive Wheel

By payload: 500kg → BJEC-150P; 600kg → BJEC-167P; 1000kg → BJEC-198P / BJEC-220P; 1600kg → BJEC-250P.
By wheel diameter: 150–167mm compact chassis; 198–220mm mid; 250mm for heavier shuttles.
By voltage: 48V across the series (24V available on request).
By motor power: Travel 750–1500W, steering 200–400W; brushed DC/AC/servo 400W–15KW available.
Cargo protection: choose the damping version when transporting fragile, high-value, or precision payloads.
Customization: PU or rubber tread, encoders, brakes, suspension, explosion-proof / low-temp / high-IP on request.

Not sure which model fits your AGV? Contact our engineering team with your payload, floor and speed requirements for a matched drive solution.

Frequently Asked Questions

Q: What is a horizontal shock-absorbing drive wheel used for?

A: It adds a spring damping system to a standard horizontal drive wheel for higher load capacity and stability, absorbing vibration to protect mechanical parts and extend equipment life. Ideal for AGVs carrying fragile or high-value payloads in demanding industrial environments.

Q: What motors and voltages are available?

A: Optional parallel-shaft gear or planetary reducer; brushed DC / AC induction / PM servo motors 400W–15KW, input 12–96V; wheel diameters 150–250mm; PU or rubber tread; IP20–IP65; optional damping spring, encoders, limit switches.

Q: Are 2D/3D drawings available?

A: Yes. We provide PDF datasheets (e.g. TEC150P / TEC167P series) and 3D STEP models, plus custom parameter modifications for motor power, voltage, and wheel material to match your AGV chassis.
