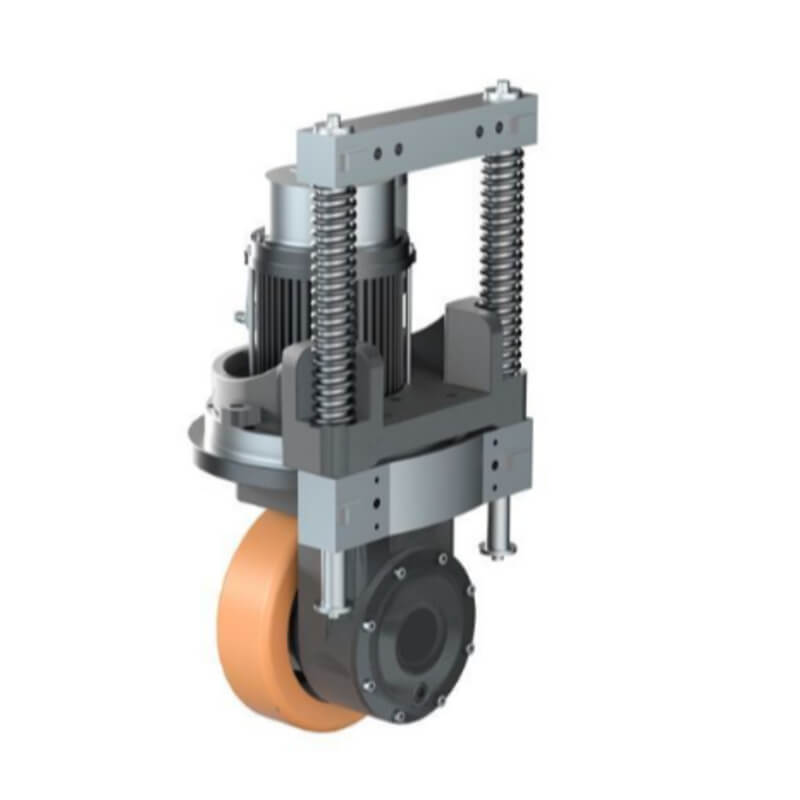

Vertical Shock-Absorbing Drive Wheel 1200–2500kg Load 230–310mm (BLJEC Series)

The BLJEC series vertical shock-absorbing drive wheel with steering integrates a damping system on top of a standard vertical steering wheel, effectively protecting high-precision and fragile cargo from vibration during transport. Its damping system efficiently absorbs shock energy, reduces impact in operation, protects the equipment's mechanical structure, and extends service life. Baoluo is a leading mobile-robot core-component supplier with 22 years of factory experience.

Category :
AGV Drive Wheel
Release time : 2026-08-25

Message

Detailed Description

Product Overview

The BLJEC vertical shock-absorbing steering wheel combines a bevel-gear vertical drive with an integrated damping module. Built on the standard vertical steering wheel, the damping system cushions vibration so sensitive loads stay safe in transit. It is available with or without steering, supports 12–96V input and motors from 400W to 16KW, and is engineered for demanding industrial environments where cargo protection matters.

Key Features

Bevel Gear Structure: Compact, low noise, high output torque.
Wheel Diameter Range: 230, 250, 310 mm to match chassis clearances.
Load Range: 1200kg–2500kg per wheel across the series.
12V–96V Input: Vertical with or without steering.
Integrated Damping: Shock-absorption spring protects fragile cargo and extends equipment life.
Tread Options: Polyurethane (PU) or rubber wheel.
Motor Choices: Brushed DC, AC induction, or PM servo, 400W–16KW.
IP Rating: IP20–IP65 for dusty or wet environments.
Optional Parts: Shock-absorption spring, limit switch, home sensor, incremental/absolute encoder, potentiometer.
Custom Series: Explosion-proof, low-temperature, high IP rating.

Two core advantages: a quality spring provides moderate elasticity and longer service life; a high-performance motor delivers precise steering and motion control.

Target Applications

Semiconductor & Electronics AGV: Protects wafers, panels and precision parts from transit vibration.
Medical / Lab Transport: Quiet, low-vibration movement of sensitive instruments and samples.
Food & Beverage Handling: Stable transport of bottled or packaged goods.
General AGV / AMR: Any automated vehicle carrying fragile or high-value payloads.

Model Overview — BLJEC Series Vertical Shock-Absorbing Drive Wheel

The BLJEC series covers 1200kg up to 2500kg load across wheel diameters 230–310mm, with an integrated steering motor and damping module for each model. Choose by diameter and payload.

Model	Travel Voltage	Travel Power (W)	Wheel Diameter (mm)	Max Load (kg)	Steering Power (W)	Typical Application
BLJEC-230	48V	2500	230	1200	400	Compact AGV carrying sensitive electronics / lab samples
BLJEC-250	24V / 48V	1600–2500	250	1800	400–650	Mid AGV, semiconductor / medical material handling
BLJEC-310	48V	3000	310	2500	750	Heavy AGV, automated forklifts with fragile goods

Technical Specifications

Model	Travel Section (Driving)								Steering Section
Model	Motor Type	Power (W)	Voltage (V)	Current (A)	Speed (RPM)	Reduction (i)	Load (kg)	IP Rating	Motor Type	Power (W)	Voltage (V)	Current (A)	Speed (RPM)	Reduction (i)	Load (kg)	IP Rating
BLJEC-230	Servo	2500	48	62	3000	30	1200	65	Servo	400	48	10.6	3000	50	–	65
BLJEC-250	Servo/AC/DC	1600/2500	24/48	35/63/100	2500	19	1800	20–65	Servo/AC/DC	400/650	24/48	9.9/24/36	3000/3500	33.92/50	–	20–65
BLJEC-310	Servo	3000	48	75	2500	23	2500	54	Servo	750	48	19.9	3000	50	–	65

How to Choose the Right Vertical Shock-Absorbing Drive Wheel

By payload: 1200kg → BLJEC-230; 1800kg → BLJEC-250; 2500kg → BLJEC-310.
By wheel diameter: 230mm compact chassis; 250mm mid; 310mm for heavier shuttles.
By voltage: 24V / 48V across the series (BLJEC-230/310 fixed 48V).
By motor power: Travel 1600–3000W, steering 400–750W; brushed DC/AC/servo 400W–16KW available.
Cargo protection: choose the damping version when transporting fragile, high-value, or precision payloads.
Customization: PU or rubber tread, encoders, brakes, suspension, explosion-proof / low-temp / high-IP on request.

Not sure which model fits your AGV? Contact our engineering team with your payload, floor and speed requirements for a matched drive solution.

Frequently Asked Questions

Q: What is a vertical shock-absorbing drive wheel used for?

A: It adds a damping system to a standard vertical steering wheel to protect high-precision or fragile cargo from vibration during transport. Ideal for semiconductor, electronics, medical/lab, and other sensitive-payload AGVs and AMRs.

Q: What motors and voltages are available?

A: Brushed DC / AC induction / PM servo motors 400W–16KW, input 12–96V; wheel diameters 230–310mm; PU or rubber tread; IP20–IP65; optional shock-absorption spring, encoders, limit switches, explosion-proof / low-temperature builds.

Q: Are 2D/3D drawings available?

A: Yes. We provide PDF drawings and 3D STEP models, plus custom parameter modifications for motor power, voltage, and wheel material to match your AGV chassis.
