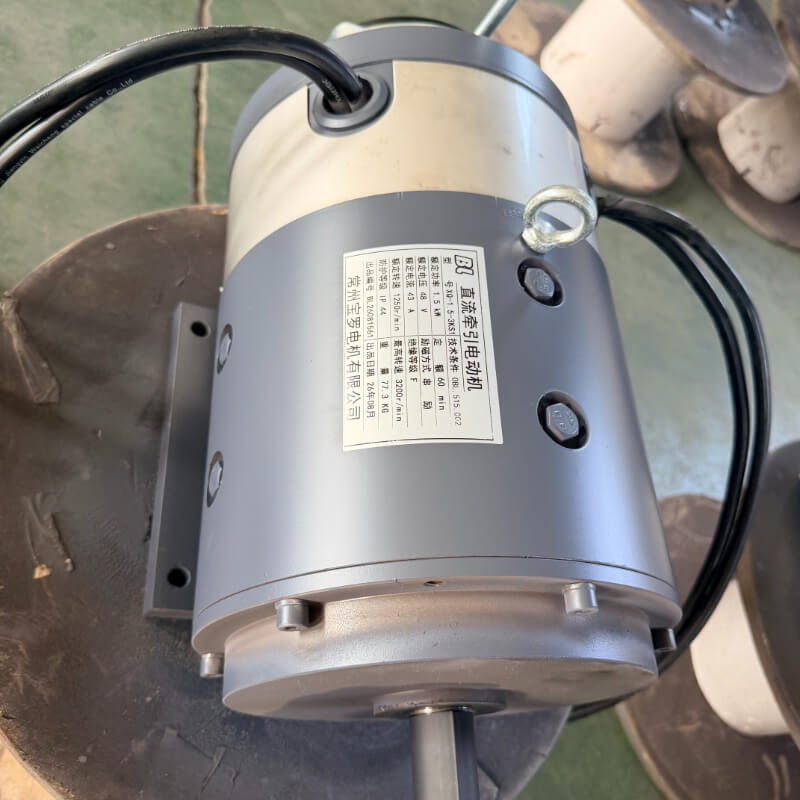

48V 1.5kW DC Series Wound Traction Motor XQ-1.5-3KS1 (for Material Handling)

The XQ-1.5-3KS1 is a 48V 1.5kW DC series wound traction motor built for battery-powered material handling vehicles. High starting torque and a wide speed range (1250 rpm rated, up to 3200 rpm) make it a reliable drive for flatbed carts, transfer trucks and low-speed utility vehicles.

Category :
DC Traction Motor
Release time : 2026-08-31

Message

Detailed Description

Key Features

High starting torque — pulls heavy loads from standstill, the main job of a traction motor.
Wide speed range — 1250 rpm rated, up to 3200 rpm max, covering low-speed torque and faster light-load travel.
Soft mechanical characteristic — speed naturally drops as load rises, absorbing shock during start/stop.
Simple, low-failure construction — fewer parts, easier to service on site.
Flexible mounting — B35 (foot + flange) suits frame and end-mounted installations.

Applications

Electric flatbed cart / material handling truck
Transfer cart / rail transfer vehicle
Electric sweeper / low-speed utility vehicle
Industrial electric tractor / tugger

Technical Specifications

Parameter	Specification
Motor Model	XQ-1.5-3KS1
Rated Power	1.5 kW
Rated Voltage	48V DC
Rated Current	43 A
Rated Speed	1250 rpm
Max Speed	3200 rpm
Duty Cycle	S2-60min
IP Rating	IP44
Excitation	Series Wound
Mounting	B35 (foot + flange)

How to Choose the Right Traction Motor

By voltage: match your battery — this model is 48V DC; 24V versions available on request.
By load: 1.5 kW suits medium material handling carts and transfer vehicles; heavier loads need a bigger model.
By speed: 1250 rpm rated, up to 3200 rpm max; confirm against your wheel/gear ratio.
Customization: voltage, B35/B5 mounting and shaft can be customized — contact engineering with your requirement.

Not sure which model fits your vehicle? Contact our engineering team with your battery voltage, vehicle weight and speed requirement for a matched drive solution.

Frequently Asked Questions

Q: Can you customize voltage, shaft or mounting for XQ-1.5-3KS1?

A: Yes. OEM/ODM supported — 24V/48V voltage, B35/B5 mounting and shaft can be customized. Send your spec to our engineering team.

Q: What is the MOQ and lead time?

A: MOQ is 1 unit. Standard lead time is 1 month after order confirmation. Each motor carries an 18-month warranty counted from the delivery date.

Why Choose Baoluo

cert_800

Baoluo is a traction-motor manufacturer based in Changzhou, China, with in-house production and load testing. The certificate above shows our factory certification.

workshop_800

Armature and stator winding on our production line. Every motor is hand-built and tested before shipment.

team_800

Warranty: 18 months from the delivery date. MOQ: 1 unit. Lead time: 1 month after order confirmation.
