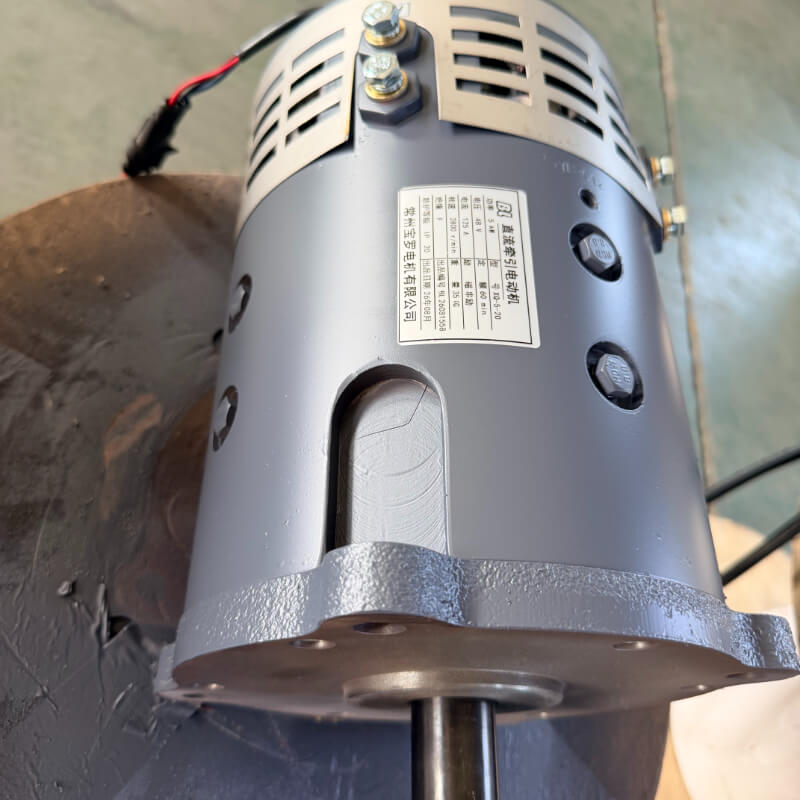

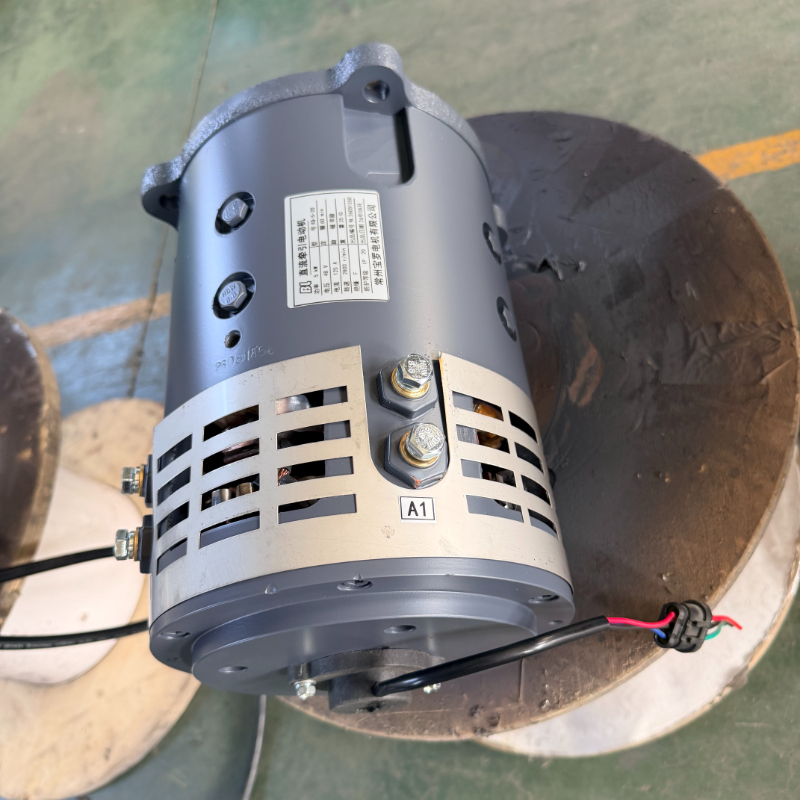

48V 5kW DC Series Wound Traction Motor XQ-5-20

48V 5kW DC Series Wound Traction Motor XQ-5-20

The XQ-5-20 is a 48V 5kW DC series wound traction motor for mid-duty battery vehicles. High starting torque, a wide speed range (2800 rpm rated, up to 5000 rpm) and a custom mounting/shaft interface make it a flexible drive for electric forklifts, tow tractors and material handling trucks.

Category :
DC Traction Motor
Release time : 2026-08-31

Message

Detailed Description

Key Features

High starting torque — pulls heavy loads from standstill, the main job of a traction motor.
Wide speed range — 2800 rpm rated, up to 5000 rpm max for faster light-load travel.
Custom interface — mounting and shaft machined to your vehicle drawing (OEM).
Simple, low-failure construction — fewer parts, easier to service on site.
Open-frame IP20 — cost-effective for indoor/clean industrial duty; enclosure options on request.

Applications

Electric forklift / pallet truck
Industrial electric tractor / tow tractor
Electric flatbed cart / material handling truck
Transfer cart / rail transfer vehicle
Electric sweeper / low-speed utility vehicle

Technical Specifications

Parameter	Specification
Motor Model	XQ-5-20
Rated Power	5 kW
Rated Voltage	48V DC
Rated Current	135 A
Rated Speed	2800 rpm
Max Speed	5000 rpm
Duty Cycle	S2-60min
IP Rating	IP20
Excitation	Series Wound
Interface	Custom (mounting / shaft per vehicle)

How to Choose the Right Traction Motor

By voltage: match your battery — this model is 48V DC; 24V/72V versions available on request.
By load: 5 kW suits mid-duty forklifts, tow tractors and material handling trucks; heavier loads need a bigger model.
By speed: 2800 rpm rated, up to 5000 rpm max; confirm against your wheel/gear ratio.
Customization: mounting, shaft and voltage can be customized — send your interface drawing to engineering with your requirement.

Not sure which model fits your vehicle? Contact our engineering team with your battery voltage, vehicle weight and speed requirement for a matched drive solution.

Frequently Asked Questions

Q: Can the mounting and shaft interface of XQ-5-20 be customized?

A: Yes. XQ-5-20 is built with a custom interface — mounting, shaft and voltage can be made to your vehicle. Send your interface drawing for a matched quote.

Q: What is the MOQ and lead time?

A: MOQ is 1 unit. Standard lead time is 1 month after order confirmation. Each motor carries an 18-month warranty counted from the delivery date.

Why Choose Baoluo

cert_800

Baoluo is a traction-motor manufacturer based in Changzhou, China, with in-house production and load testing. The certificate above shows our factory certification.

workshop_800

Armature and stator winding on our production line. Every motor is hand-built and tested before shipment.

team_800

Warranty: 18 months from the delivery date. MOQ: 1 unit. Lead time: 1 month after order confirmation.
