| Parameter | Specification |
|---|---|

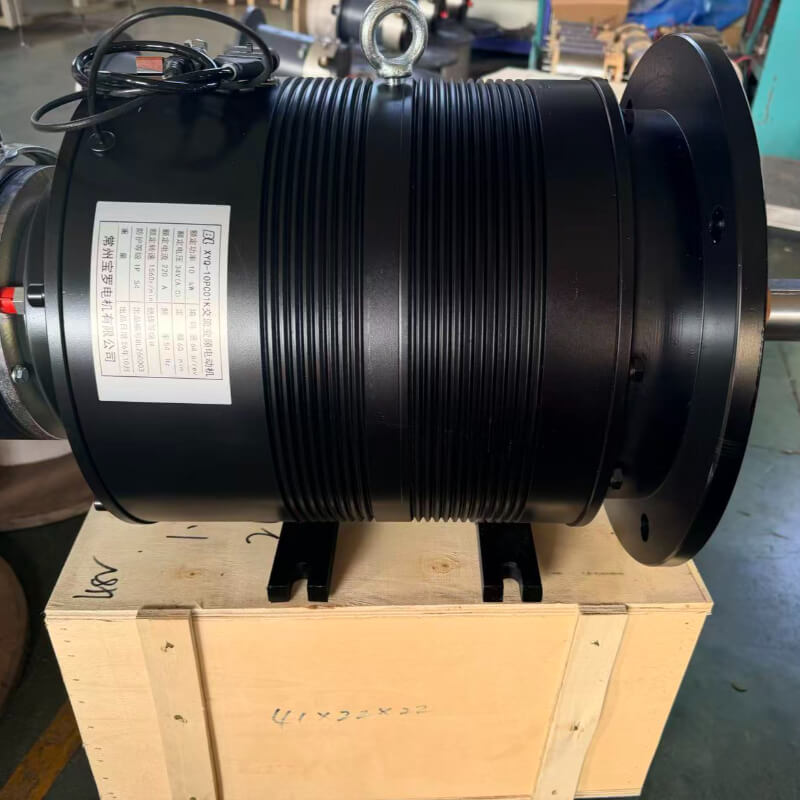

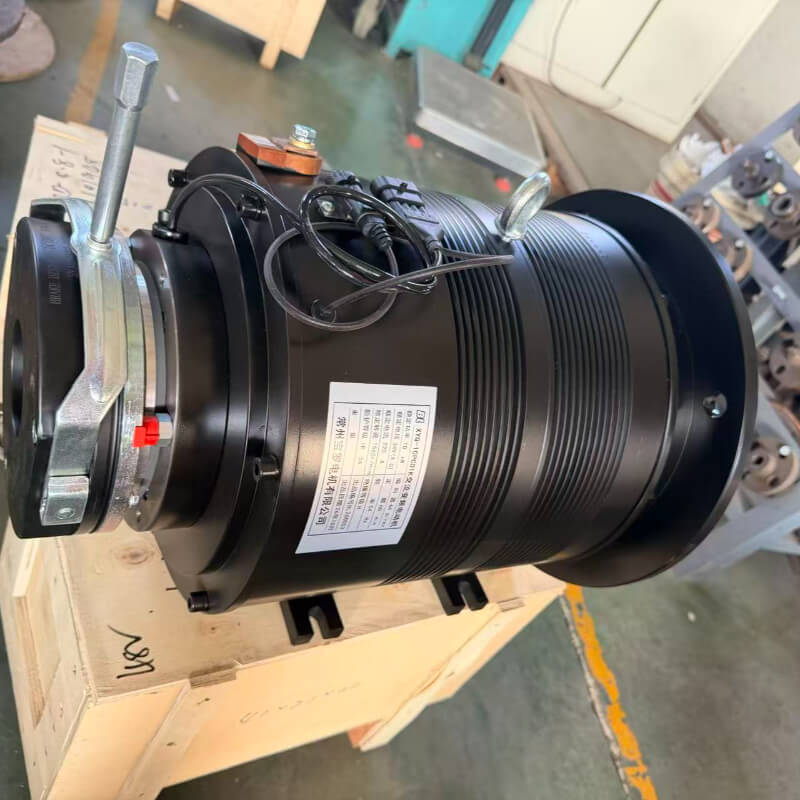

| Motor Model | XYQ-10PC01K |
| Motor Type | 3-phase AC squirrel cage induction (asynchronous, VFD-driven) |
| Rated Power | 10 kW (13.4 HP) |
| Battery / DC Bus Voltage | 48V DC |
| Rated Voltage | 31V 3-phase AC (VFD output, motor terminal) |
| Rated Current | 220 A |
| Rated Speed | 1560 rpm |
| Rated Frequency | 54 Hz |
| Rated Torque | 61.2 N.m |
| Duty Cycle | S2-60min |
| IP Rating | IP54 |
| Insulation | Class H |
| Encoder | 64 P/rev Hall-effect (incremental) |
| Mounting | B35 (foot + flange) |
Note: 48V DC is the battery / DC bus voltage; 31V AC is the rated 3-phase voltage the VFD applies to the motor terminals at the 54 Hz base frequency.
The XYQ-10PC01K is a 3-phase AC squirrel cage induction motor — also called an induction motor, or asynchronous, because the rotor turns slightly slower than the rotating stator field. The rotor is a cast aluminium cage with no brushes and no commutator, so there is almost nothing to wear — which is why AC induction takes over from DC brushed motors above a few kW. It is the heaviest unit in Baoluo's 48V AC traction family.
The XYQ-10PC01K runs on a variable frequency drive (inverter), not fixed mains. The inverter sits on the 48V DC battery bus and synthesizes the 3-phase AC the motor needs; by varying frequency and voltage together it controls speed smoothly and delivers maximum torque at zero speed for launch. So you can match the motor to your driving cycle without a transmission, and regenerative braking is straightforward as the inverter pushes current back into the battery on deceleration.

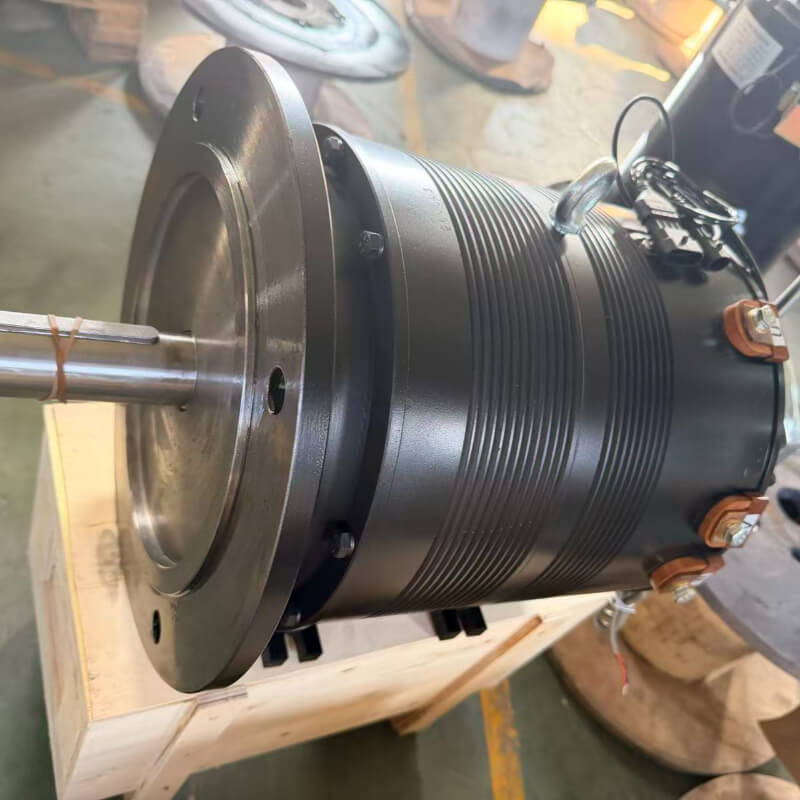

Three features set this unit apart. B35 mounting combines feet and a flange: the feet carry torque reaction while the flange centres the shaft on the gearbox or hub face — a rigid two-point location for heavy vehicles seeing shock loads. The 64 P/rev Hall-effect encoder closes the speed loop, so the inverter holds the commanded rpm under load instead of drifting as open-loop V/Hz does. S2-60min is a short-time duty rating: full 10 kW for 60 minutes, then a cool-down — the pattern of shuttle runs, lift cycles and AGV loops. IP54 and Class H insulation (winding rated to 180 °C) give thermal headroom for repeated start-up and overload.
Not sure which motor fits your vehicle? Contact our engineering team with your battery voltage, vehicle weight and gearbox input spec.
Q: What is the relationship between the 48V DC battery and the 31V AC motor terminal voltage?
A: 48V DC is the battery / DC bus; the VFD synthesizes the 3-phase AC the motor runs on, so the terminal voltage is not the battery voltage. 31V is the rated 3-phase AC voltage at the motor terminals at the 54 Hz base frequency, set by the inverter's V/Hz curve.
Q: Why does the XYQ-10PC01K have a 64 P/rev Hall encoder?
A: The 64 P/rev Hall-effect encoder gives the inverter closed-loop speed feedback. Without it the VFD runs open-loop V/Hz and drifts under load; with it the controller holds the commanded rpm tightly — what you want on a heavy forklift lift cycle, an AGV path-follow or a transfer cart starting under load.
Q: What is B35 mounting, and how does it differ from B5 or B3?
A: B35 is a combined foot-and-flange mounting (IEC): feet for a base plus a flange bolting to the gearbox or hub face. B5 is flange only; B3 is foot only. B35 gives a rigid two-point location — useful on heavy vehicles, because the feet carry torque reaction while the flange centres the shaft. B5 or B3 can be re-tooled on the same frame — confirm at inquiry.
Baoluo is a traction-motor manufacturer based in Changzhou, China, with in-house production and load testing. The certificate above shows our factory certification.
Armature and stator winding on our production line. Every motor is hand-built and tested before shipment.
Warranty: 18 months from the delivery date. MOQ: 1 unit. Lead time: 1 month after order confirmation.
