| Parameter | Specification |
|---|---|
| Motor Model | XYQ-7.5PC01 |
| Motor Type | 3-phase AC squirrel cage induction (asynchronous, VFD-driven) |
| Rated Power | 7.5 kW (10 HP) |
| Battery / DC Bus Voltage | 48V DC |
| Rated Voltage | 31V 3-phase AC (VFD output, motor terminal) |
| Rated Current | 191 A |
| Rated Speed | 1500 rpm |
| Rated Frequency | 53 Hz |
| Rated Torque | 47.8 N.m |
| Duty Cycle | S2-60min |
| IP Rating | IP54 |
| Insulation | Class H |
| Encoder | 64 P/rev Hall-effect (incremental) |
| Mounting | B5 (flange) |
Note: 48V DC is the battery / DC bus voltage; 31V AC is the rated 3-phase voltage the VFD applies to the motor terminals at the 53 Hz base frequency.

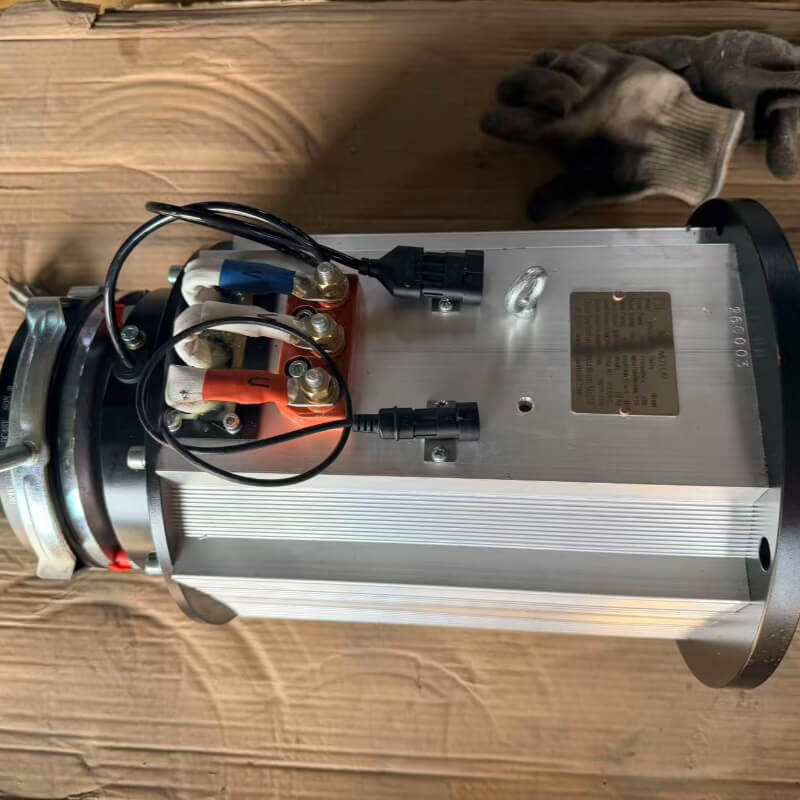

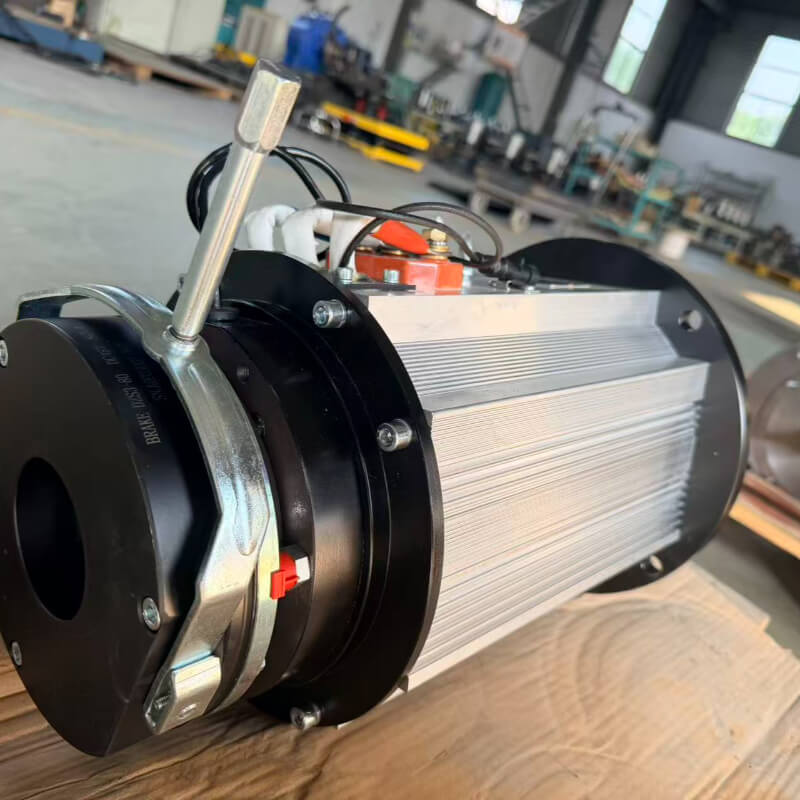

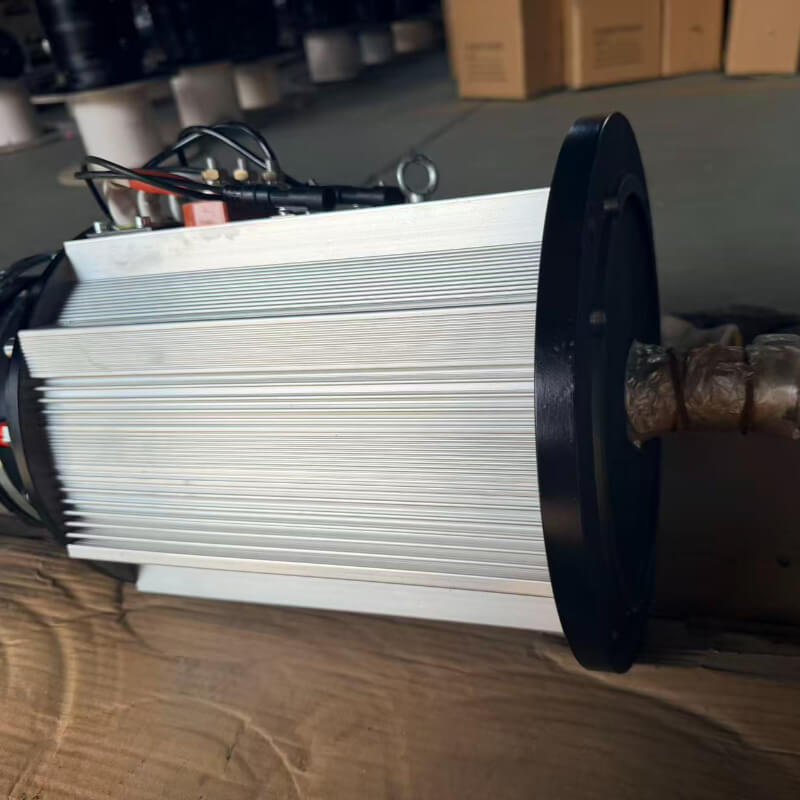

The XYQ-7.5PC01 is a 3-phase AC squirrel cage induction motor — also called an induction motor, or asynchronous, because the rotor turns slightly slower than the rotating stator field. The rotor is a cast aluminium cage with no brushes and no commutator, so there is almost nothing to wear — which is why AC induction takes over from DC brushed motors above a few kW. It is the 48V / 7.5 kW member of Baoluo's AC traction family.
The XYQ-7.5PC01 runs on a variable frequency drive (inverter), not fixed mains. The inverter sits on the 48V DC battery bus and synthesizes the 3-phase AC the motor needs; by varying frequency and voltage together it controls speed smoothly and delivers maximum torque at zero speed for launch. So you can match the motor to your driving cycle without a transmission, and regenerative braking is straightforward as the inverter pushes current back into the 48V battery on deceleration.
Two ratings here are easy to misread. The two voltages are not a contradiction: 48V DC is what the battery delivers to the inverter, while 31V is the 3-phase AC the inverter applies to the motor terminals at the 53 Hz base frequency (about 0.58 V/Hz) — different quantities on either side of the VFD. S2-60min is a short-time duty rating: the motor delivers its full 7.5 kW for 60 minutes, then cools before the next full-load period — exactly the pattern of shuttle runs, lift cycles, AGV loops and transfer-cart trips. It is paired with IP54 enclosure and Class H insulation (winding rated to 180 °C) for thermal headroom under repeated start-up and overload.
Not sure which motor fits your vehicle? Contact our engineering team with your battery voltage, vehicle weight and gearbox input spec.
Q: What is the relationship between the 48V DC battery and the 31V AC motor terminal voltage?
A: 48V DC is the battery / DC bus feeding the inverter; the VFD synthesizes the 3-phase AC the motor runs on, so the motor terminal voltage is not the battery voltage. 31V is the rated 3-phase AC voltage at the motor terminals at the 53 Hz base frequency. The exact value follows the VFD's V/Hz programming — 31V at 53 Hz is the rated point to design your inverter around.
Q: What does S2-60min duty mean for my application?
A: S2-60min is a short-time duty rating: the motor is rated for 60 minutes of continuous load at 7.5 kW, then it must cool close to ambient before the next full-load period. This covers most shuttle, lift-cycle, AGV-loop and transfer-cart duty. If your vehicle runs continuously at full load beyond that, a larger frame or higher duty rating is the right choice.
Q: What is the mounting style — B5, B14 or B3?
A: The XYQ-7.5PC01 is built with a B5 (large flange) mounting as standard. B5 bolts directly to a gearbox, differential or wheel-hub face — no foot bracket, saving axial space. B14 (small flange) or B3 (foot mount) can be re-tooled on the same frame — confirm at inquiry.
Baoluo is a traction-motor manufacturer based in Changzhou, China, with in-house production and load testing. The certificate above shows our factory certification.
Armature and stator winding on our production line. Every motor is hand-built and tested before shipment.
Warranty: 18 months from the delivery date. MOQ: 1 unit. Lead time: 1 month after order confirmation.
