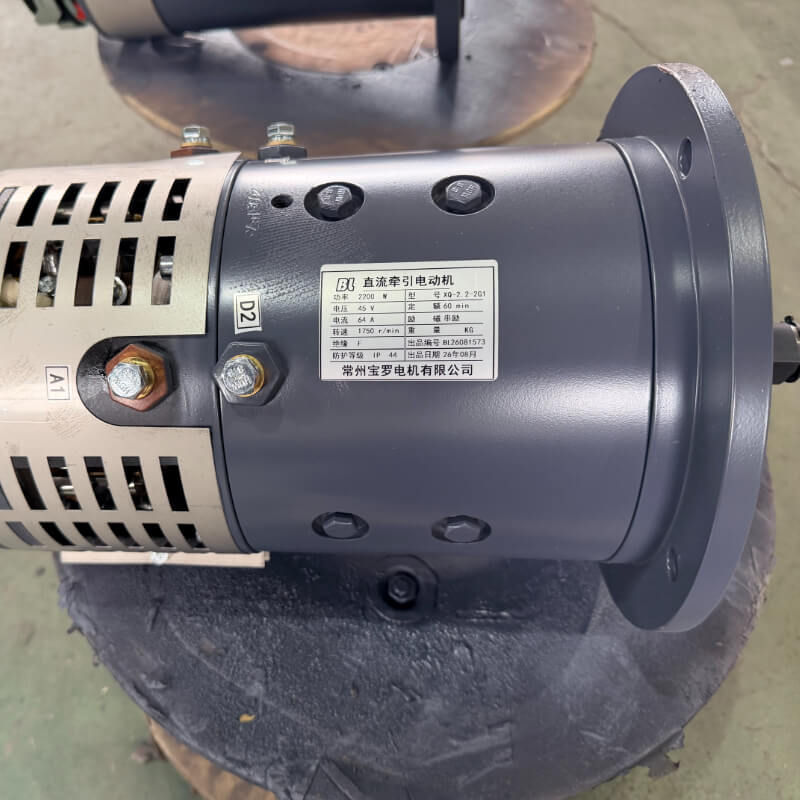

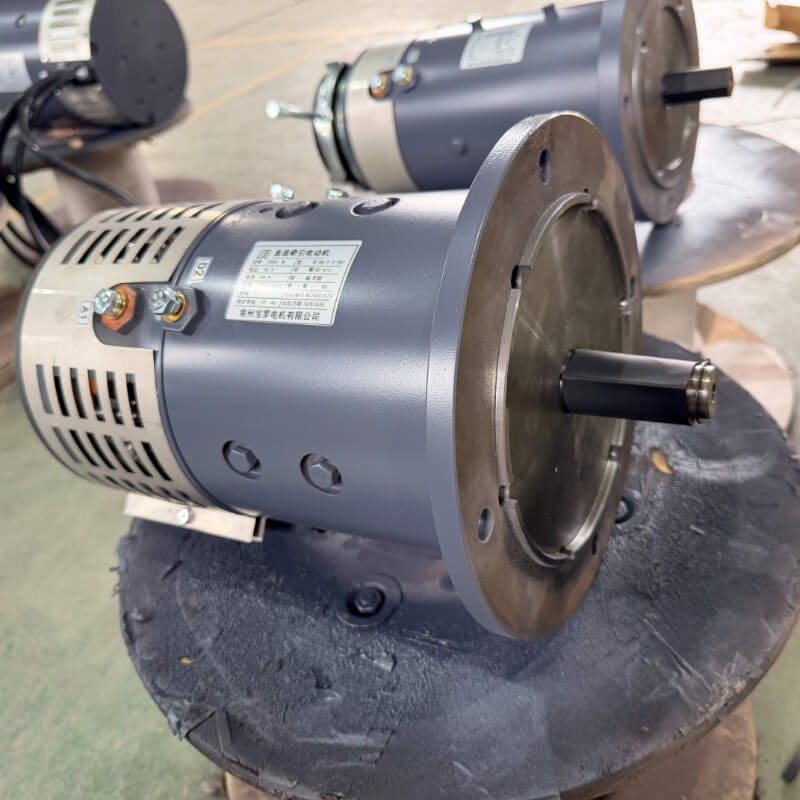

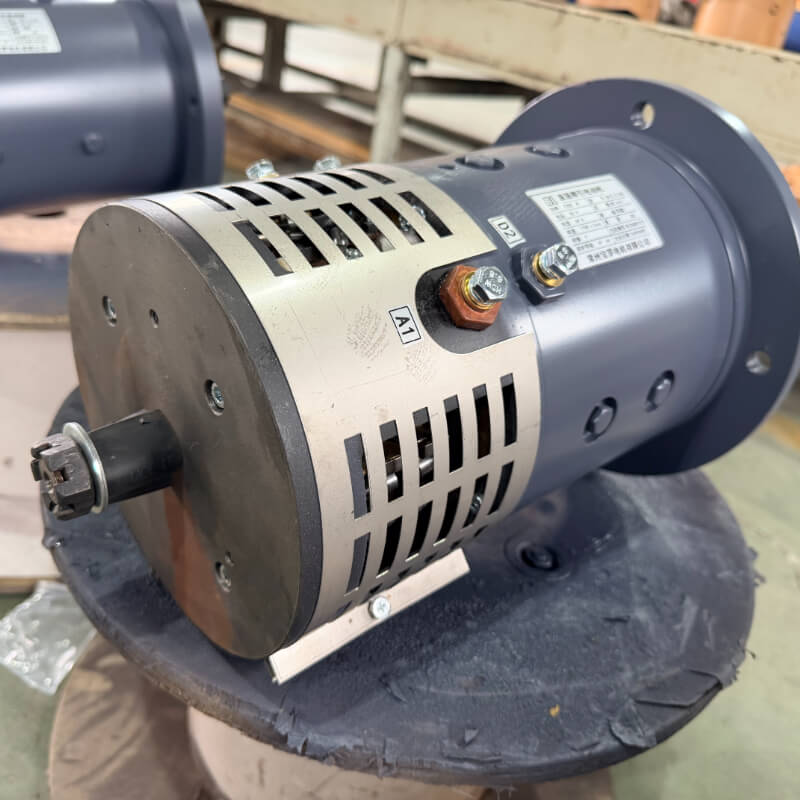

48V 2.2kW Series Wound DC Traction Motor XQ-2.2-2G1

48V 2.2kW Series Wound DC Traction Motor XQ-2.2-2G1

The XQ-2.2-2G1 is a 48V 2.2kW DC series wound traction motor built to JB 5335-91, the standard for battery-powered industrial vehicles. High starting torque, a wide speed range (1750 rpm rated, up to 3600 rpm) and a B5 flange make it a dependable drive for flatbed carts and material handling trucks.

Category :
DC Traction Motor
Release time : 2026-09-02

Message

Detailed Description

Key Features

High starting torque — pulls heavy loads from standstill, the main job of a traction motor.
Wide speed range — 1750 rpm rated, up to 3600 rpm max for faster light-load travel.
Class F insulation — withstands higher winding temperature, longer service life under stop-start duty.
B5 flange mounting — standard industrial interface, easy to swap into existing vehicles.
Built to JB 5335-91 — the Chinese standard for DC series traction motors on battery vehicles.

Applications

Electric flatbed cart / material handling truck
Transfer cart / rail transfer vehicle
Electric sweeper / utility vehicle
Light industrial tractor / tow tractor
Railway transfer vehicle / platform truck

Technical Specifications

Parameter	Specification
Motor Model	XQ-2.2-2G1
Rated Power	2.2 kW
Rated Voltage	48V DC
Rated Current	64 A
Rated Speed	1750 rpm
Max Speed	3600 rpm
Duty Cycle	S2-60min
Insulation Class	F
IP Rating	IP21
Excitation	Series Wound
Mounting	B5 flange
Standard	JB 5335-91

How to Choose the Right Traction Motor

By voltage: match your battery — this model is rated 48V DC; other voltages available on request.
By load: 2.2 kW suits light to mid-duty flatbed carts and transfer vehicles; heavier loads need a bigger model.
By speed: 1750 rpm rated, up to 3600 rpm max; confirm against your wheel/gear ratio.
Customization: voltage, shaft and B5/B35 mounting can be customized — contact engineering with your requirement.

Not sure which model fits your vehicle? Contact our engineering team with your battery voltage, vehicle weight and speed requirement for a matched drive solution.

Frequently Asked Questions

Q: Can you customize voltage, shaft or mounting for XQ-2.2-2G1?

A: Yes. OEM/ODM supported — voltage, shaft and B5/B35 mounting can be customized. Send your spec to our engineering team.

Q: What is the MOQ and lead time?

A: MOQ is 1 unit. Standard lead time is 1 month after order confirmation. Each motor carries an 18-month warranty counted from the delivery date.

Why Choose Baoluo

cert_800

Baoluo is a traction-motor manufacturer based in Changzhou, China, with in-house production and load testing. The certificate above shows our factory certification.

workshop_800

Armature and stator winding on our production line. Every motor is hand-built and tested before shipment.

team_800

Warranty: 18 months from the delivery date. MOQ: 1 unit. Lead time: 1 month after order confirmation.
