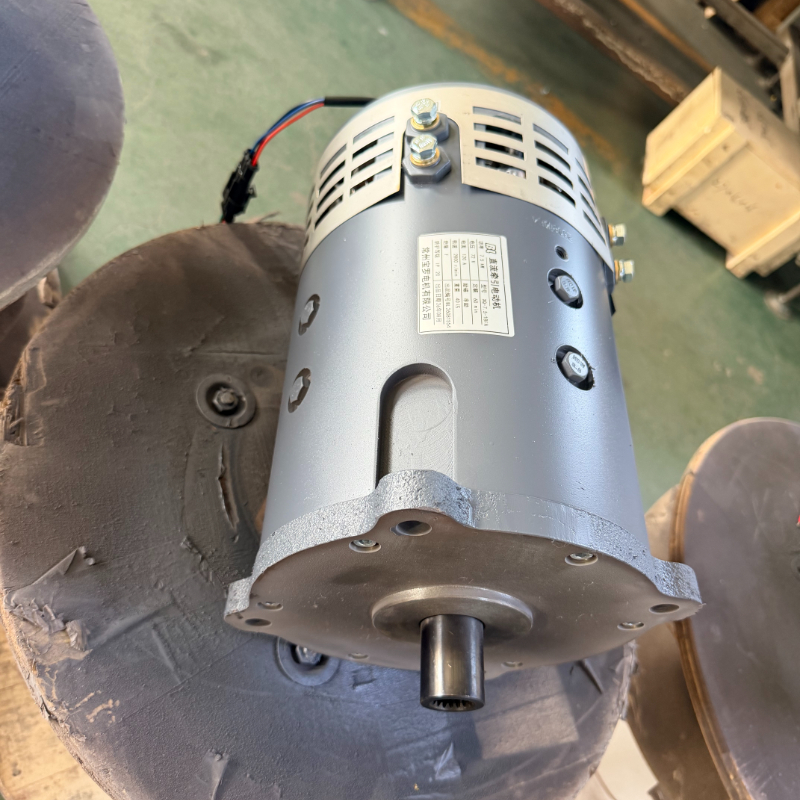

72V 7.5kW DC Series Wound Traction Motor XQ-7.5-18FA (for Low-Speed Vehicles)

Product Overview

A DC series wound brushed motor where the armature and field windings are connected in series. It gives load-adaptive speed regulation and strong overload capacity — well suited to the heavy-start, low-speed duty of golf carts, ATVs and utility vehicles. The 18-tooth triangular spline shaft couples directly to standard differential inputs.

Key Features

• High starting torque — pulls a loaded vehicle from standstill, the main job of a traction motor.
• Wide speed range — 2800 rpm rated, up to 5000 rpm max for faster light-load travel.
• 18-tooth triangular spline shaft — direct, secure coupling to standard differential inputs.
• 72V battery platform — lower current per kW, smaller cables and controllers than 48V at the same power.
• Open-frame IP20 — cost-effective for clean, low-speed vehicle duty; enclosure options on request.

Applications

• Golf cart / sightseeing vehicle
• Patrol car / security utility vehicle
• ATV / quadricycle
• Low-speed EV / neighborhood electric vehicle (NEV)
• Electric sweeper / utility vehicle

Technical Specifications

How to Choose the Right Traction Motor

• By voltage: match your battery — this model is 72V DC; 48V versions available on request.
• By load: 7.5 kW suits loaded golf carts, ATVs and patrol vehicles; heavier duty needs a bigger model.
• By speed: 2800 rpm rated, up to 5000 rpm max; confirm against your axle/gear ratio.
• Customization: voltage, shaft (spline teeth, keyway, length) and interface can be customized — send your shaft drawing to engineering.

Not sure which model fits your vehicle? Contact our engineering team with your battery voltage, vehicle weight and speed requirement for a matched drive solution.
