| Parameter | Specification |
|---|---|
| Motor Model | XQ-6.3-2 |
| Rated Power | 6.3 kW (≈8.4 hp) |
| Rated Voltage | 48V DC |
| Rated Current | 173 A |
| Rated Speed | 1200 rpm |
| Max Speed | 3200 rpm |
| Duty Cycle | S2-60min |
| IP Rating | IP21 |
| Insulation | Class F |
| Excitation | Series Wound |
| Shaft | Splined, 6-tooth, f9 fit |

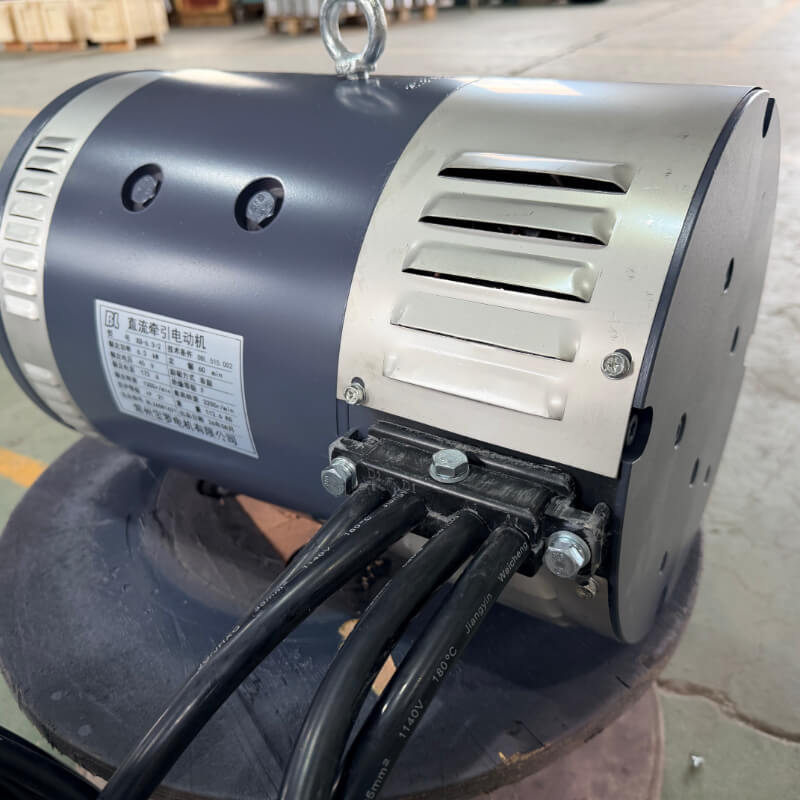

The XQ-6.3-2 is a series wound DC motor — it belongs to the brushed DC motor family. Current is fed to the rotor through carbon brushes and a commutator, which gives very high starting torque and a wide speed range (1200 rpm rated, up to 3200 rpm no-load). The trade-off is brush wear: brushes are a normal service item (typically replaced every 1,000–2,000 operating hours depending on duty cycle). For Class III forklifts, tow tractors and AGVs, brushed DC motors are still the practical choice — simpler to control and cheaper than brushless options at this power level. Brush replacements are also a recurring service part, easy to source.

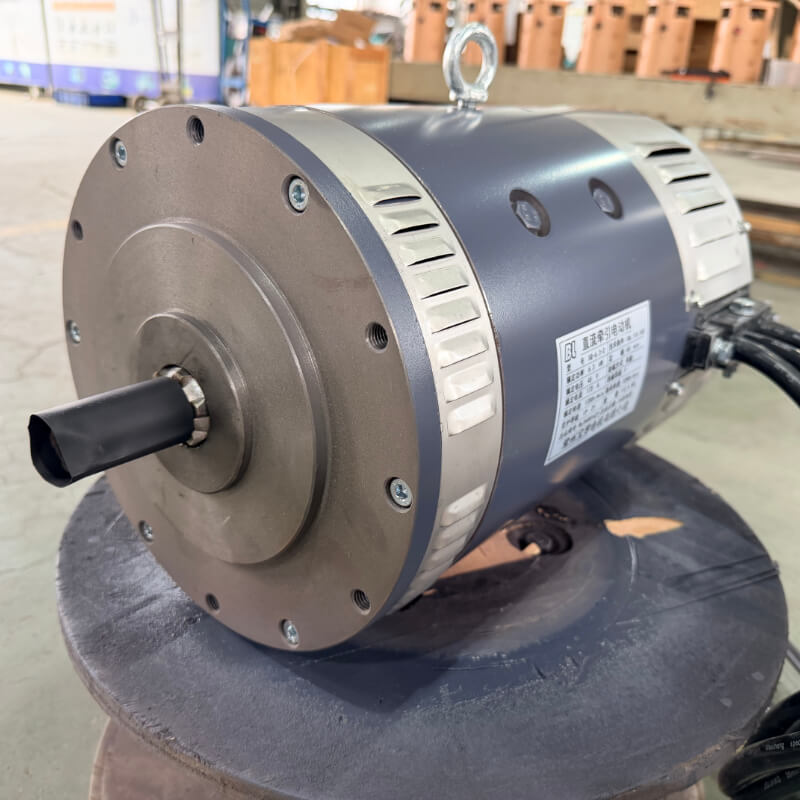

The XQ-6.3-2 comes with an external splined shaft (6-tooth, f9 fit) instead of a plain keyed shaft. Splines spread the torque load across all teeth instead of concentrating it on one keyway, so the shaft can transmit more peak torque without keyway shearing — exactly what you want in a forklift lift cycle or an AGV stop-and-go duty. It also indexes concentrically so coupling alignment is more forgiving, which shortens install time on the production line.
Not sure which model fits your vehicle? Contact our engineering team with your battery voltage, vehicle weight and gearbox input spec for a matched drive solution.

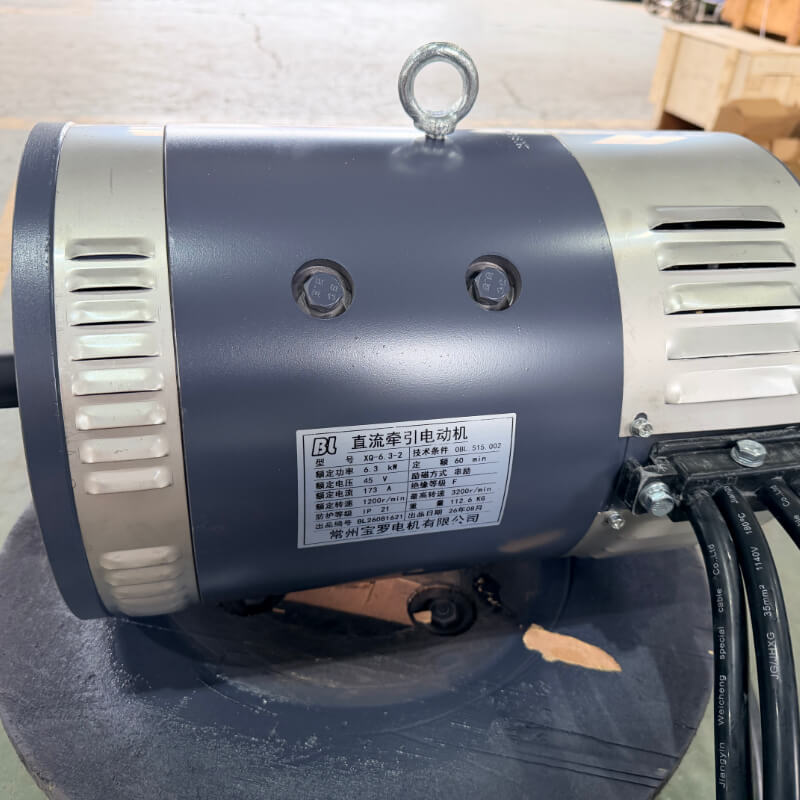

Q: The nameplate says 45V — is this a 45V motor or a 48V motor?
A: It's a 48V system motor. 45V on the nameplate is a common industry labelling convention for 48V battery platforms (the actual nominal pack voltage of a fully charged 48V lead-acid or Li-ion pack sits around 48–54V, with a 45V nominal point often used in legacy Chinese traction-motor documentation). Match it with a 48V battery pack as standard.
Q: Can you customize the spline for XQ-6.3-2?
A: Yes. OEM/ODM supported — spline count, fit grade, length and lead configuration can be customized. Plain keyed shaft also available on request. Send your gearbox input spec to our engineering team.
Q: What is the standard lead time?
A: Standard lead time is 15–25 working days for sample orders; 25–35 working days for bulk orders. Shipping from Shanghai or Ningbo port.
Baoluo is a traction-motor manufacturer based in Changzhou, China, with in-house production and load testing. The certificate above shows our factory certification.
Armature and stator winding on our production line. Every motor is hand-built and tested before shipment.
Warranty: 18 months from the delivery date. MOQ: 1 unit. Lead time: 1 month after order confirmation.
