| Parameter | Specification |
|---|---|
| Motor Model | XQ-5.5-24DAL |
| Rated Power | 5.5 kW |
| Rated Voltage | 72V DC |
| Rated Current | 96 A |
| Rated Speed | 2500 rpm |
| Max Speed | 4800 rpm |
| Duty Cycle | S2-60min |
| IP Rating | IP44 |
| Insulation | Class F |
| Excitation | Series Wound |
| Speed Sensor | 4-pole pair / 8-pole pair (optional) |
| Shaft Spline | Internal, Z24 / module 1 / 30° / 5H |
| Standard | JB 5335-91 |

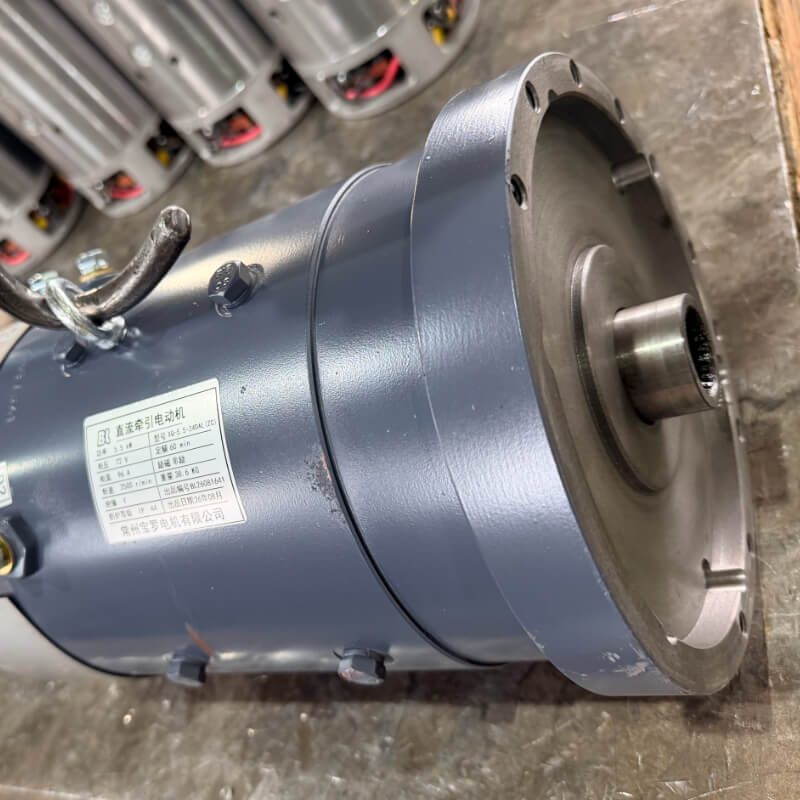

The XQ-5.5-24DAL is a series wound DC motor — it belongs to the brushed DC motor family. Current is fed to the rotor through carbon brushes and a commutator, which gives very high starting torque and a wide speed range. The trade-off is brush wear: brushes are a normal service item (typically replaced every 1,000–2,000 operating hours depending on duty cycle). For low-speed EVs, ATVs and golf carts, brushed DC motors are still the practical choice — simpler to control and cheaper than brushless options at this power level.
The XQ-5.5-24DAL can be fitted with an integral speed sensor, available in 4-pole pair or 8-pole pair versions. The sensor outputs a clean speed signal to the controller for closed-loop control, which keeps vehicle speed steady under load changes — useful for patrol cars, shuttles and any low-speed vehicle where speed must stay predictable rather than surge.
Not sure which model fits your vehicle? Contact our engineering team with your battery voltage, vehicle weight and speed requirement for a matched drive solution.
Q: Can you customize voltage or the shaft spline for XQ-5.5-24DAL?
A: Yes. OEM/ODM supported — 48V/60V/72V versions, internal spline (Z24 / module 1 / 30° / 5H) and speed sensor (4-pole / 8-pole pair) can be customized. Send your spec to our engineering team.
Q: Is the speed sensor included by default?
A: The speed sensor is an optional item. Tell us whether you need 4-pole pair or 8-pole pair, and we configure it on the production line. Without it the motor still runs as a standard series wound drive.
Q: What is the standard lead time?
A: Standard lead time is 15–25 working days for sample orders; 25–35 working days for bulk orders. Shipping from Shanghai or Ningbo port.
Baoluo is a traction-motor manufacturer based in Changzhou, China, with in-house production and load testing. The certificate above shows our factory certification.
Armature and stator winding on our production line. Every motor is hand-built and tested before shipment.
Warranty: 18 months from the delivery date. MOQ: 1 unit. Lead time: 1 month after order confirmation.
