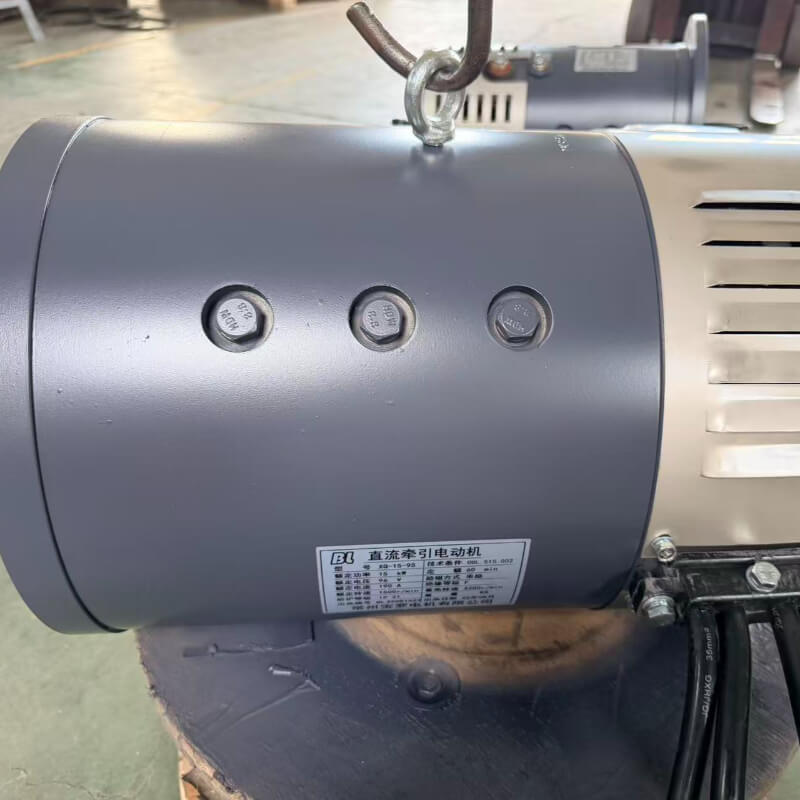

Key Features
- 96V platform, 15 kW, 95.5 N.m — first 96V traction model in the XQ range; matches 96V battery packs (8 × 12V in series). Heavy traction class for loaded forklifts, transfer carts, tow tractors, mine locomotives.
- 1500 rpm rated / 3200 rpm max — mid-speed traction characteristic; 2.1:1 speed range for free-wheel high-speed running on light loads.
- 190A rated, 82% efficiency — 96V × 190A = 18.24 kW input, 15 kW shaft output; controller, contactor and battery cabling must be rated for 190A continuous with 250A+ surge headroom.
- Class F insulation, S2-60min duty — conservative thermal envelope for sustained heavy-load operation; long winding life under repeated stall, start-up and overload transients.
- IP21 enclosure — indoor / sheltered rating; protected against finger contact and vertically dripping water. Request higher IP for outdoor/washdown use.

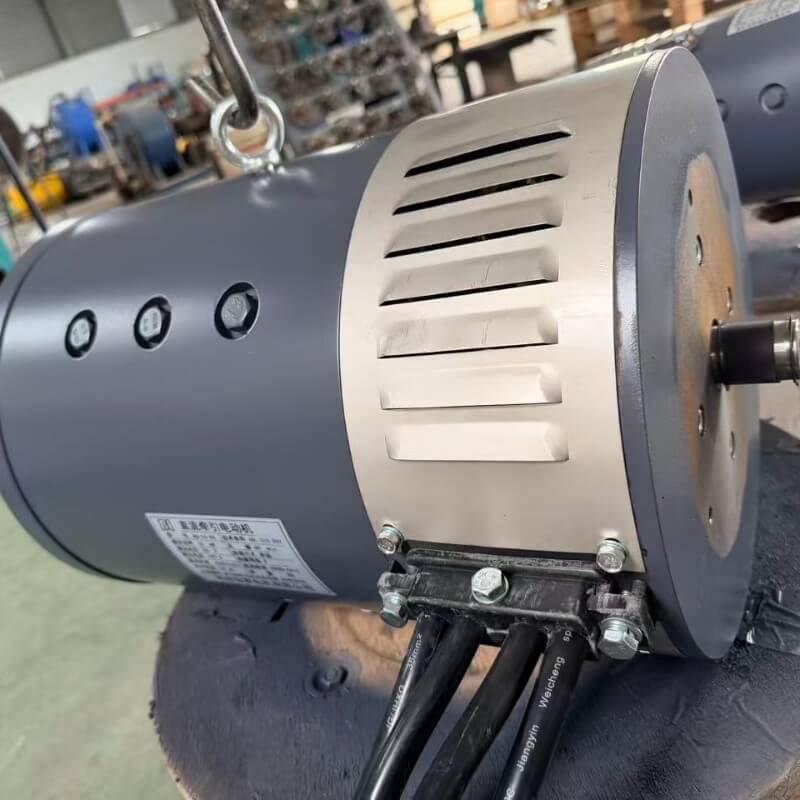

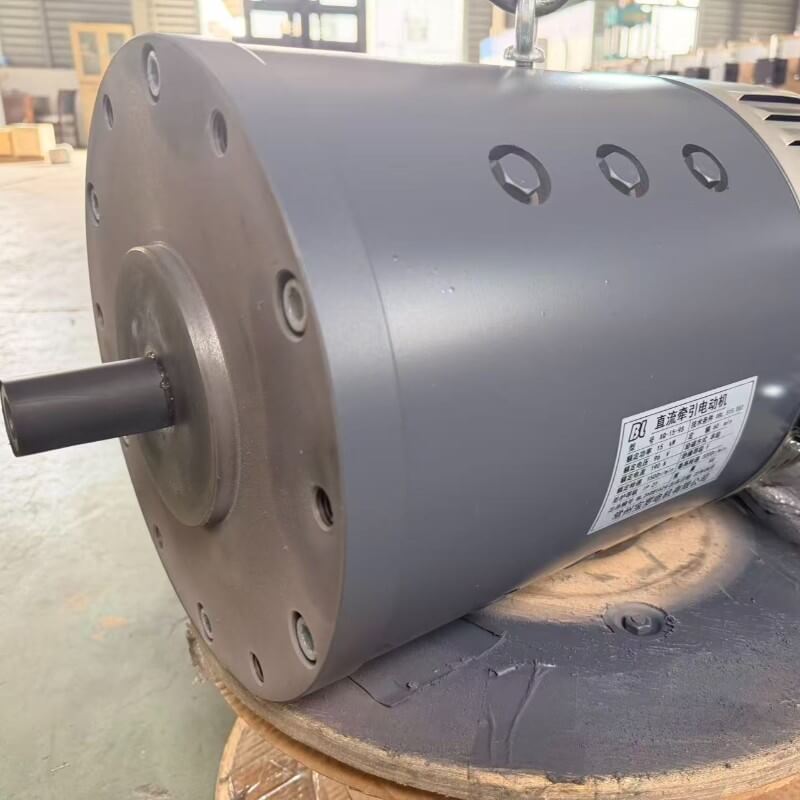

- 6-tooth spline output shaft — direct spline-coupling to gearbox, differential or wheel-hub input; eliminates a separate coupling.
Applications
- pallet stacker (96V battery pack, 8–10 ton class)
- Electric transfer cart / heavy-duty rail transfer vehicle
- Electric tow tractor / industrial tug (airport, factory, warehouse)
- Mine electric locomotive / narrow-gauge industrial locomotive
- Heavy-duty AGV / large mobile robot (96V platform)
- Oil-to-electric conversion of mid-power diesel traction vehicles
Technical Specifications
| Parameter |
Specification |
| Motor Model |
XQ-15-9S |
| Rated Power |
15 kW |
| Rated Voltage |
96V DC |
| Rated Current |
190 A |
| Rated Speed |
1500 rpm |
| Max Speed |
3200 rpm |
| Rated Torque |
95.5 N.m |
| Duty Cycle |
S2-60min |
| Insulation Class |
F |
| IP Rating |
IP21 (indoor / sheltered) |
| Excitation |
Series Wound |
| Output Shaft |
6-tooth spline shaft |
| Mounting |
B5 (flange) |
How to Choose the Right Traction Motor
- By voltage: 96V DC to match heavy-vehicle battery packs (8 × 12V traction batteries in series). Use the 48V or 72V XQ range if your vehicle runs on those platforms; 96V is the right call when the cabling run is long or the load is heavy enough that 72V would push too much current.
- By power and torque: 15 kW / 95.5 N.m at 1500 rpm is heavy-traction class — loaded 2–3 ton forklifts, multi-ton transfer carts, tow tractors, mine locomotives. Smaller kW for lighter loads; larger for heavier.
- By speed range: 1500 rpm rated with 3200 rpm max gives a 2.1:1 range — useful for low-speed high-torque launch plus higher-speed cruise on light loads.
- By environment: IP21 fits indoor cabs, enclosed transfer carts, sheltered factory floors and dry mine tunnels — NOT for outdoor rain, washdown or immersion. Request IP44+ at inquiry for wet/outdoor use.
- By controller and cabling: 190A continuous and 250A+ stall current means the controller, main contactor and battery cables must all be rated accordingly. On 96V systems cabling can be thinner than on 48V for the same power, but every connector must still match the 190A continuous rating — undersized cabling is the most common cause of voltage drop.
- By shaft and mounting: B5 flange with 6-tooth spline output shaft. B5 bolts directly to a gearbox, differential or wheel-hub face — no foot bracket, saving axial space in compact drivelines. Spline count, module, pressure angle and shaft length customizable — send the mating drawing at inquiry.
Not sure? Contact engineering with battery voltage, driveline layout, target speed and load profile.
Frequently Asked Questions
Q: Why is the rated current 190A on a 96V 15kW motor — what is the efficiency?
A: 190A is the normal running current at 96V and 15kW output — 96V × 190A = 18.24 kW of electrical input, of which about 15 kW reaches the shaft and the rest leaves as heat. Roughly 82% efficiency, which is normal for a self-excited DC traction motor of this size. The brushes and commutator are sized for this current; the controller, contactor and battery cabling must all be rated for 190A continuous with 250A+ surge headroom for stall and start-up transients. Mechanical sanity check: T = 9550 × P/n = 9550 × 15 / 1500 = 95.5 N.m, which matches the nameplate torque exactly.
Q: What does IP21 mean for outdoor or wet-environment use?
A: IP21 means protected against solid objects larger than 12.5mm (fingers, large tools) and vertically dripping water — NOT rated for water jets, splashing or immersion. This makes the XQ-15-9S suitable for indoor forklift cabs, transfer cart enclosures, dry mining tunnels and similar sheltered installations. If your vehicle runs outdoors in rain, on a washdown floor, or in dusty/wet conditions, step up to a higher IP rating (IP44 or above) — confirm at inquiry.
Q: What is the 6-tooth spline shaft for, and is it customizable?
A: The 6-tooth spline output shaft mates directly with a matching spline-coupling input on a gearbox, differential or wheel hub — eliminating a separate coupling and simplifying driveline assembly on heavy traction vehicles. Spline count, module, pressure angle and shaft length can be customized to match your driveline hardware; tell us the mating part number or drawing at inquiry.
Why Choose Baoluo
Baoluo is a traction-motor manufacturer based in Changzhou, China, with in-house production and load testing. The certificate above shows our factory certification.

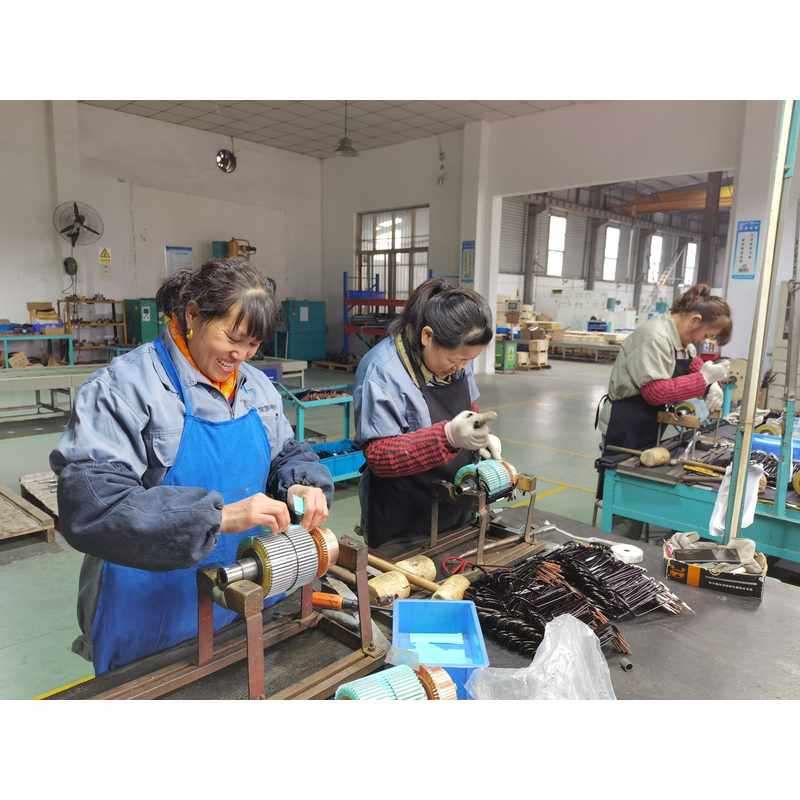

Armature and stator winding on our production line. Every motor is hand-built and tested before shipment.
