Series Wound DC Motor Armature Coil Failure Caused by No-Load Full Voltage Operation

Author: Baoluo Motor
Date: May 11, 2026

Table of Contents

• 1. Customer Return Case
• 2. Inspection Result
• 3. Root Cause Analysis
• 4. Why Series DC Motors Fail at No Load
• 5. Important Operating Precautions
• 6. Conclusion
• 7. Sources

1. Customer Return Case

A customer returned a series wound brushed DC motor to Baoluo Motor for repair after the motor suddenly failed during operation.

The customer reported abnormal speed increase followed by internal mechanical damage.

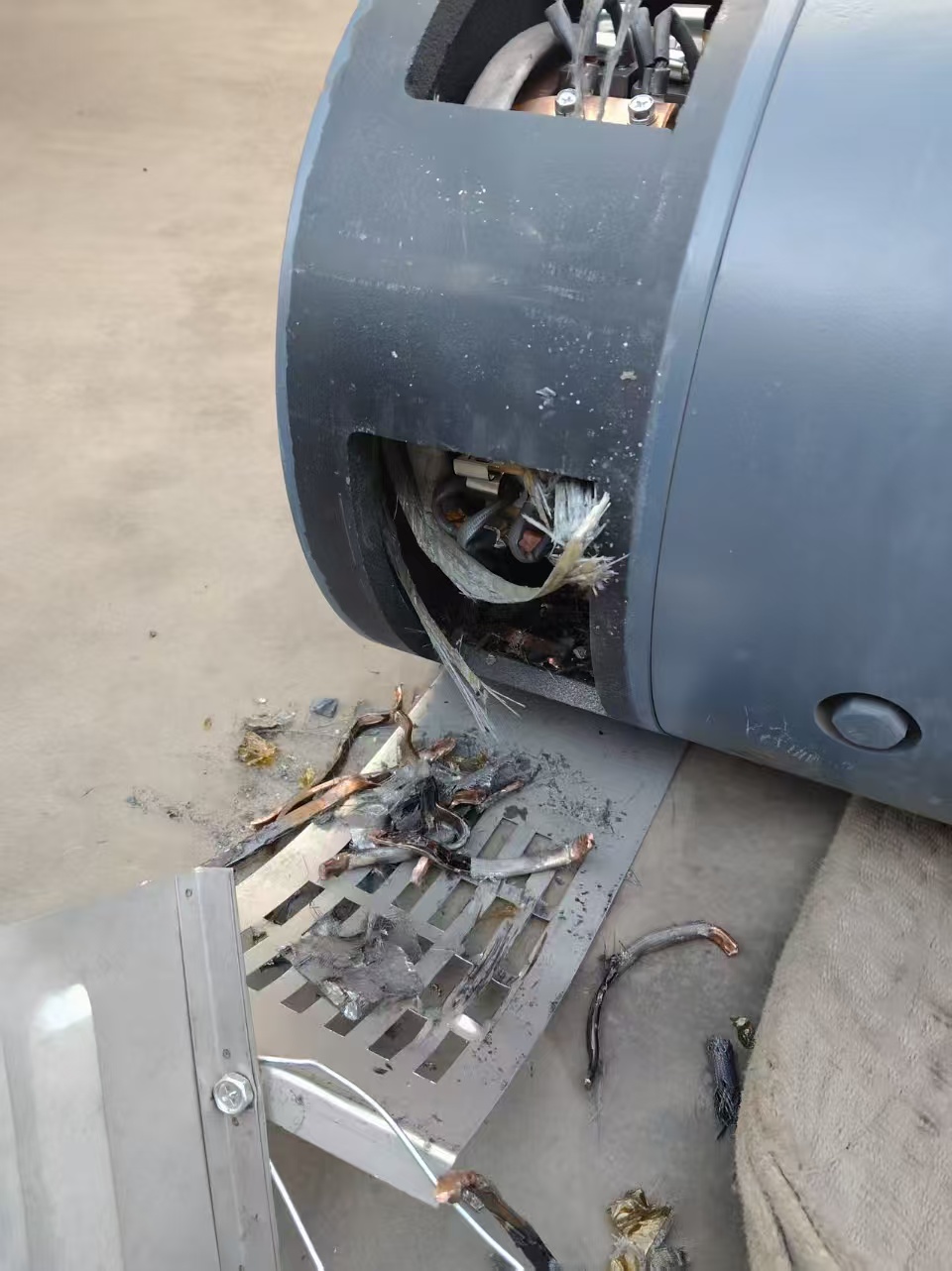

After disassembly by Baoluo Motor engineers, the armature winding was found completely thrown out from the rotor slots. Multiple copper conductors were broken, burned, and scattered inside the motor housing.

This type of damage is a common failure mode in series wound DC motors operating under improper no-load conditions.

2. Inspection Result

The inspection showed:

• Armature coils detached from rotor slots
• Severe centrifugal damage to windings
• Burn marks on copper conductors
• Mechanical destruction of insulation materials
• Rotor dynamic balance completely lost

The field winding and housing remained mostly intact, while the armature suffered catastrophic overspeed damage.

3. Root Cause Analysis

The root cause was no-load full voltage operation.

In a series wound DC motor, the field winding and armature winding are connected in series. When the motor operates without mechanical load, armature current becomes very low. The magnetic flux also decreases sharply.

Motor speed is inversely proportional to magnetic flux. As flux weakens, speed rises rapidly.

Under full supply voltage without load, the motor can accelerate far beyond its rated speed. Excessive centrifugal force then pulls the armature coils out of the rotor slots.

Once the windings loosen, severe vibration, sparking, insulation failure, and conductor breakage occur within seconds.

Engineering references consistently state that series wound DC motors must never operate without sufficient load because dangerous overspeed can occur.

4. Why Series DC Motors Fail at No Load

Series wound DC motors are designed for applications requiring high starting torque, such as:

• Electric traction systems
• Rail maintenance vehicles
• Cranes and hoists
• Electric winches
• Industrial transport equipment

These applications normally provide continuous mechanical load.

When load suddenly disappears:

• Armature current drops
• Field flux weakens
• Back EMF balance changes
• Motor speed increases uncontrollably
• Rotor mechanical stress rises sharply

At excessive RPM, the armature winding retaining system can no longer withstand centrifugal force.

The result is often catastrophic rotor failure similar to the returned motor shown above.

5. Important Operating Precautions

• Never run a series wound DC motor at no load.
• Do not apply full voltage without mechanical load connected.
• Always verify load condition before startup.
• Use proper motor controllers with speed protection if possible.
• Check rotor balance and commutator condition regularly.
• Inspect armature binding and insulation during maintenance.
• Avoid sudden load disconnection during operation.
• Do not exceed rated voltage and rated speed.

6. Conclusion

This returned motor failure is a typical overspeed damage case caused by no-load full voltage operation of a series wound brushed DC motor.

Although series wound DC motors provide excellent starting torque and simple control characteristics, they require proper loading conditions during operation.

Correct operating procedures and basic protection measures are essential to prevent catastrophic armature damage and reduce maintenance cost.
