Mecanum Wheel vs Steering Drive Unit: Which Drive System Is Best for AGVs and AMRs?
When designing an AGV, AMR, warehouse robot, or autonomous transport platform, one of the most important decisions is selecting the right drive system.
Two of the most widely used solutions are the Industrial Mecanum Wheel and the AGV Steering Drive Unit .
Although both systems are widely used in modern material handling equipment, they are designed for different operating environments, payload requirements, and motion control strategies.

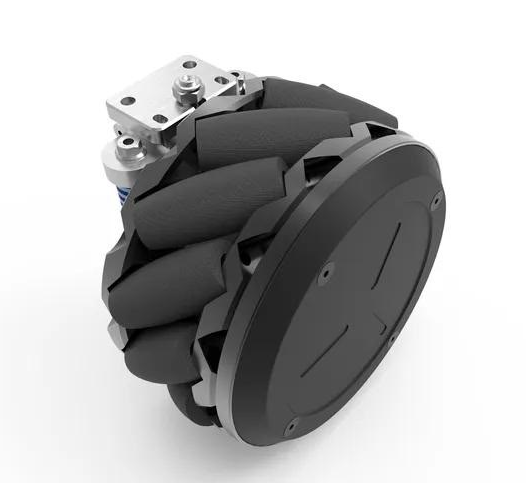

What Is an Industrial Mecanum Wheel?
A Mecanum Wheel uses multiple rollers mounted around the wheel circumference at a 45-degree angle.
By independently controlling the speed and direction of each wheel, the vehicle can move:
- Forward
- Backward
- Sideways
- Diagonally
- Rotate in Place
This unique design enables omnidirectional movement without changing vehicle orientation.
Because of this flexibility, Industrial Mecanum Wheels are widely used in environments where precise positioning and space-saving movement are required.
Typical Applications
- AMRs
- Warehouse Robots
- Semiconductor Handling Equipment
- Medical Robots
- Service Robots
- Smart Factory Automation

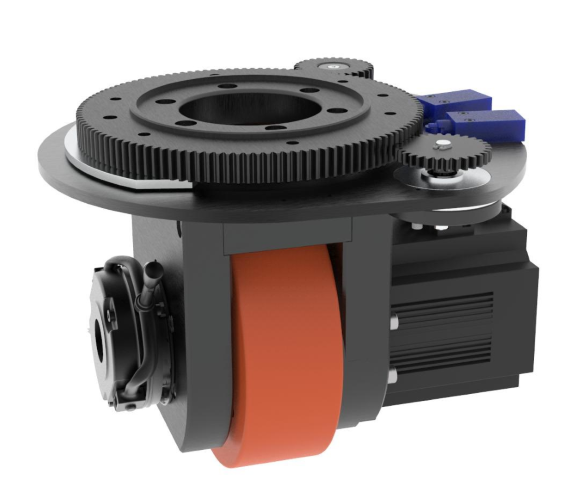

What Is an AGV Steering Drive Unit?
An AGV Steering Drive Unit combines:
- Drive Motor
- Steering Motor
- Gearbox
- Wheel Assembly
- Encoder
into a single integrated module.
Unlike omnidirectional wheels, an AGV Drive Wheel physically rotates while simultaneously providing propulsion.
This design delivers:
- High Load Capacity
- Excellent Traction
- Precise Steering Control
- Better Energy Efficiency
Typical Applications
- Forklift AGVs
- Heavy-Duty AGVs
- Pallet Transport Robots
- Automated Guided Carts
- Industrial Logistics Vehicles
- Automotive Production Lines
Mecanum Wheel vs Steering Drive Unit Comparison Table
| Feature | Industrial Mecanum Wheel | AGV Steering Drive Unit |
|---|---|---|
| Omnidirectional Movement | ★★★★★ | ★★★ |
| Sideways Movement | Yes | No |
| Rotation in Place | Excellent | Excellent |
| Load Capacity | Medium | Very High |
| Energy Efficiency | Medium | High |
| Shock Resistance | Medium | High |
| Speed | Medium | High |
| Maintenance | Medium | Low |
| Floor Adaptability | Low | High |
| Heavy-Duty Applications | Limited | Excellent |
Maneuverability Comparison
Advantages of Mecanum Wheels
The biggest advantage of an Industrial Mecanum Wheel is omnidirectional mobility.
- Easy Navigation in Narrow Aisles
- Precise Docking
- Simplified Path Planning
- High Positioning Accuracy
For applications where flexibility is more important than payload, Mecanum Wheel Systems are often the preferred solution.
Advantages of Steering Drive Units
The biggest advantage of an AGV Steering Drive Unit is efficiency and traction.
- Higher Traction
- Lower Energy Consumption
- Better Climbing Ability
- Greater Stability
For continuous industrial operation, AGV Drive Wheels typically provide a lower total operating cost.
Load Capacity Comparison
| System | Typical Load Range |
|---|---|
| Mecanum Wheel AGV | 50kg – 2,000kg |
| Steering Drive AGV | 500kg – 50,000kg+ |
For applications above 2 tons, Steering Drive Units are generally preferred due to their superior load-bearing capability and efficiency.
Energy Efficiency Comparison
One challenge with Industrial Mecanum Wheels is the efficiency loss caused by angled rollers.
- Higher Friction
- More Motor Current
- Greater Battery Consumption
In contrast, AGV Steering Drive Wheels transfer torque directly to the floor.
- Higher Efficiency
- Longer Battery Life
- Lower Operating Temperature
- Improved Endurance
Maintenance Comparison
Mecanum Wheel Maintenance
- Roller Inspection
- Roller Replacement
- Bearing Inspection
- Fastener Checks
Because there are more moving parts, Mecanum Wheels typically require more maintenance.
Steering Drive Unit Maintenance
- Wheel Inspection
- Gearbox Lubrication
- Encoder Inspection
Compared with Mecanum Wheel Systems , Steering Drive Units generally require less frequent maintenance.
Which Solution Is Better?
Choose Industrial Mecanum Wheels If:
- Omnidirectional Movement Is Required
- Space Is Extremely Limited
- Precise Positioning Is Critical
- Loads Are Relatively Light
- Flexible Movement Is the Priority
Learn more about our Industrial Mecanum Wheel Solutions .
Choose AGV Steering Drive Units If:
- Load Capacity Is High
- Long Operating Hours Are Required
- Energy Efficiency Matters
- Reliability Is the Top Priority
- Floor Conditions Are Not Perfect
Learn more about our AGV Steering Drive Units .
Baoluo Motor AGV Drive Solutions
Baoluo Motor provides both Industrial Mecanum Wheels and AGV Steering Drive Units for AGV and AMR manufacturers worldwide.
In addition to wheel systems, we also provide:
- Low Voltage AC Motors
- DC Traction Motors
- Motor Controllers
- Customized Drive Solutions
This allows customers to source complete AGV drive systems from a single supplier.
FAQ
Are Mecanum Wheels better than Steering Drive Units?
Not necessarily. Mecanum Wheels provide superior maneuverability, while Steering Drive Units offer higher efficiency and load capacity.
Why do heavy-duty AGVs use Steering Drive Units?
Because AGV Steering Drive Units provide greater load capacity, better traction, and lower energy consumption.
Can Mecanum Wheels carry heavy loads?
Yes, but efficiency decreases as payload increases. For heavy-duty applications, AGV Drive Wheels are generally preferred.
Which drive system is best for warehouse AGVs?
For highly flexible movement in narrow spaces, Industrial Mecanum Wheels are ideal. For pallet transport and heavy-duty logistics applications, AGV Drive Wheels are often the better solution.
