In modern industrial manufacturing—spanning aerospace, wind energy, automotive assembly, and metallurgy—the transportation of massive materials and heavy structural components is a constant operational challenge. Traditional overhead cranes and fixed rail transfer cars often create logistical bottlenecks due to their rigid infrastructure and safety risks. As factories transition to Industry 4.0, Heavy-Duty Automated Guided Vehicles (Heavy-Duty AGVs) have become the preferred solution for flexible, autonomous heavy material handling.
However, choosing the right heavy-duty AGV involves understanding not only the vehicle body design but also its core mechanical propulsion system. The performance of a heavy load AGV relies heavily on its motor technology and drive wheel setup. In this guide, we will explore the main types of heavy-duty AGVs and provide an actionable technical guide on selecting the best drive components for your application.
A Heavy-Duty AGV is an automated mobile robot specifically designed to transport extra-large, heavy, or bulky payloads—typically ranging from 5 tons to over 100+ tons. Unlike standard warehouse AGVs used for small parcel tote handling, heavy-duty AGVs feature reinforced steel chassis, advanced hydraulic or electric lifting mechanisms, robust safety sensor arrays, and high-torque traction drive configurations.
Because they carry extreme loads, these vehicles demand higher structural rigidity, precise control algorithms, and heavy-grade powertrain components that can endure severe static and dynamic forces without mechanical failure.
Differential drive AGVs utilize two active drive wheels situated on opposite sides of the vehicle center line, supported by multiple passive swivel casters. Steering is accomplished by creating a speed variance between the two active wheels.
Heavy-duty forklift AGVs automate the lifting, stacking, and transport of heavy palletized goods, steel coils, or large die molds. They feature automated hydraulic forks integrated into standard or customized heavy chassis designs.

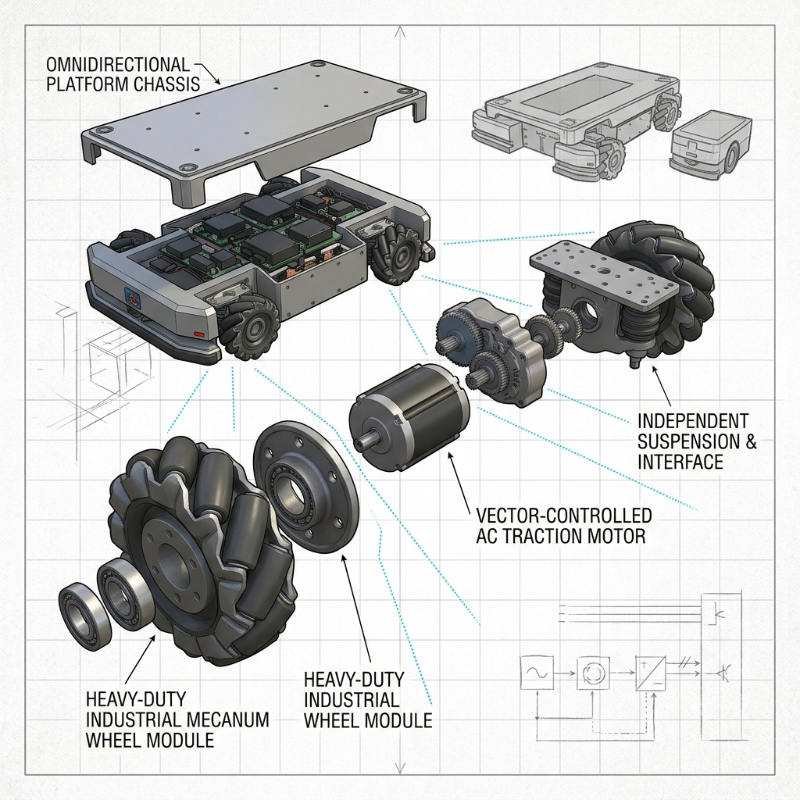

Omnidirectional AGVs offer complete maneuverability, allowing 360-degree rotation, diagonal drift, and sideways movement without changing the direction of the vehicle chassis. This is achieved using steerable drive units or specialized roller wheels.

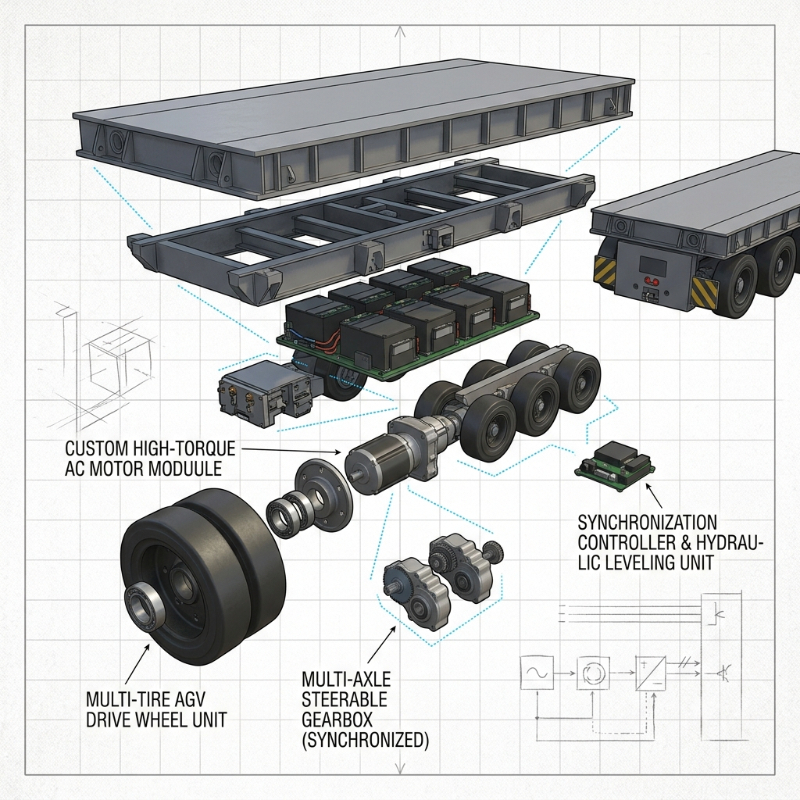

Designed like ultra-heavy flatbed transport platforms, these AGVs are engineered to haul massive structural steel, transformers, wind turbine blades, or ship modules. They frequently employ multi-axle array configurations to distribute extreme weight evenly across multiple wheel points.
AGV tuggers (or automated towing vehicles) pull a train of unpowered carts or trailers loaded with heavy parts along a designated assembly route, acting as a flexible intra-factory train system.
| AGV Type | Maneuverability | Typical Payload | Recommended Motor Type | Recommended Wheel Setup |
|---|---|---|---|---|
| Differential Drive | Medium (Pivot Turn) | 3t – 20t | Dual AC Traction Motors | Heavy Polyurethane Wheels |
| Forklift AGV | Medium-High | 3t – 15t | AC Drive & Steering Motors | Heavy-Duty Steering Wheel Unit |
| Omnidirectional AGV | Extreme (360° Movement) | 5t – 30t | Vector-Controlled AC Traction Motors | Heavy Industrial Mecanum Wheels |
| Heavy Load Transfer | High (Multi-Steer) | 20t – 100t+ | Distributed AC Servo System | Multi-Unit AGV Drive Wheels |
| AGV Tugger | Standard (Forward/Reverse) | 5t – 30t Towing | High-Torque AC Traction Motor | High-Traction Drive Wheels |
Designing a heavy-duty AGV chassis requires balancing maneuverability, torque, vertical load rating, and floor conditions. Below is a deep technical breakdown of key drive system components and when to use them.
While DC motors were once popular in light robotics, modern heavy-duty AGVs overwhelmingly rely on low voltage AC traction motors (typically 24V, 48V,72v or 80V AC). Key benefits include:

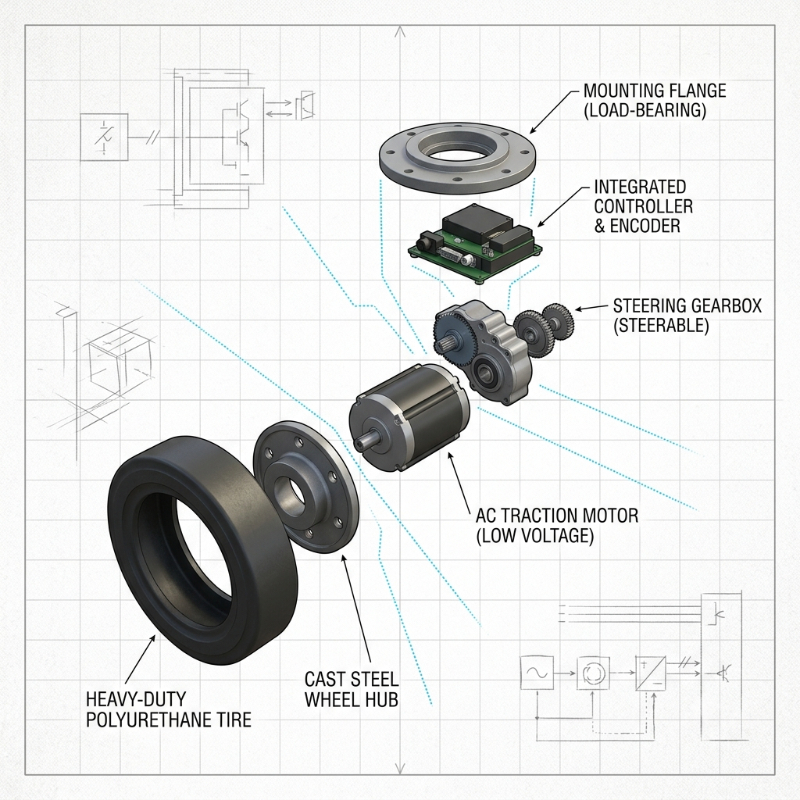

An integrated electric AGV drive wheel combines an AC drive motor, a precision planetary or steerable gearbox, and a high-load polyurethane wheel into one compact assembly. You should opt for integrated drive wheels when:
Heavy-duty industrial Mecanum wheels feature angled perimeter rollers that enable omnidirectional movement without any steering rotation of the wheel assembly itself. You should choose Mecanum wheels when:
As a specialized manufacturer of mobile robot powertrain solutions, Baoluo Motor provides high-performance, heavy-duty drive systems engineered specifically for tough industrial environments:
Typically, AGVs with a payload capacity exceeding 5 tons are classified as heavy-duty AGVs, with specialized units reaching up to 100+ tons.
Mecanum wheels perform best on smooth, indoor industrial concrete floors. For uneven outdoor surfaces, integrated steerable AGV drive wheels paired with rubber or heavy polyurethane tires and hydraulic suspensions are recommended.
Most heavy-duty AGVs utilize low voltage AC systems ranging from 24V, 48V, to 80V AC, balancing electrical safety with high power output.
Contact the Baoluo Motor engineering team today for motor torque calculations, load ratings, and complete drive system integration support.
