1. How Much Load Can a Mecanum Wheel Handle?
Mecanum wheel load capacity is one of the first specifications engineers should evaluate. However, the required wheel capacity should not be calculated from payload alone.
The total operating weight of an AGV includes the vehicle frame, battery, motors, gearboxes, controllers, suspension, payload, and other components.
For example, an AGV with a 2,000 kg payload may have a total operating weight significantly above 3,000 kg after the vehicle structure and drive system are included.
A four-wheel Mecanum AGV may appear to distribute the load equally between four wheels, but actual wheel loading can change during acceleration, braking, turning, or operation on uneven floors.
Engineers should therefore include an appropriate safety margin when selecting a heavy-duty Mecanum wheel.
What Should Be Included in the Load Calculation?
- AGV self-weight
- Maximum payload
- Battery weight
- Motor and gearbox weight
- Controller and electrical components
- Dynamic loading during acceleration and braking
- Uneven floor conditions
The wheel rating should be selected according to the actual operating condition rather than simply dividing total vehicle weight by four.
2. How to Choose Mecanum Wheel Size?
Mecanum wheel size affects load capacity, ground clearance, vehicle height, obstacle-crossing capability, speed, and installation space.
Larger wheels generally provide greater ground clearance and can operate more smoothly over small floor irregularities. They may also be suitable for heavier vehicles.
Smaller wheels can reduce vehicle height and may be useful when the AGV needs to operate underneath racks, production equipment, or other restricted spaces.
When selecting wheel diameter, engineers should consider:
- Total vehicle weight
- Payload
- Required ground clearance
- Vehicle installation height
- Operating speed
- Floor conditions
- Available installation space
There is no universal Mecanum wheel size for every AGV. The wheel should be selected according to the complete vehicle design.
3. What Makes a Good Mecanum Wheel Roller?
The rollers are one of the most important components of an AGV Mecanum wheel. Unlike conventional wheels, Mecanum wheels use angled rollers to generate omnidirectional movement.
Engineers should evaluate:
- Roller material
- Roller diameter
- Roller angle
- Bearing design
- Surface hardness
- Wear resistance
- Manufacturing accuracy
- Roller balance
Poor roller quality can lead to excessive vibration, noise, uneven movement, reduced traction, and premature wear.
For heavy-duty applications, roller strength and durability are particularly important because the rollers continuously experience changing loads during omnidirectional movement.
Engineers should therefore evaluate the roller construction rather than judging an industrial Mecanum wheel only by its external appearance.
4. How Does Mecanum Wheel Configuration Affect AGV Movement?
The installation direction of each Mecanum wheel is critical to vehicle movement.
A typical four-wheel Mecanum AGV uses a specific roller orientation between the left and right sides. The controller then coordinates the speed and direction of each wheel to produce the required movement.
A properly configured system can provide:
- Forward movement
- Reverse movement
- Sideways movement
- Diagonal movement
- Rotation in place
Incorrect wheel orientation can cause unstable movement, poor lateral motion, excessive motor load, or incorrect vehicle rotation.
Before purchasing Mecanum wheels, engineers should confirm the vehicle layout, wheel arrangement, motor direction, controller logic, and required movement modes.

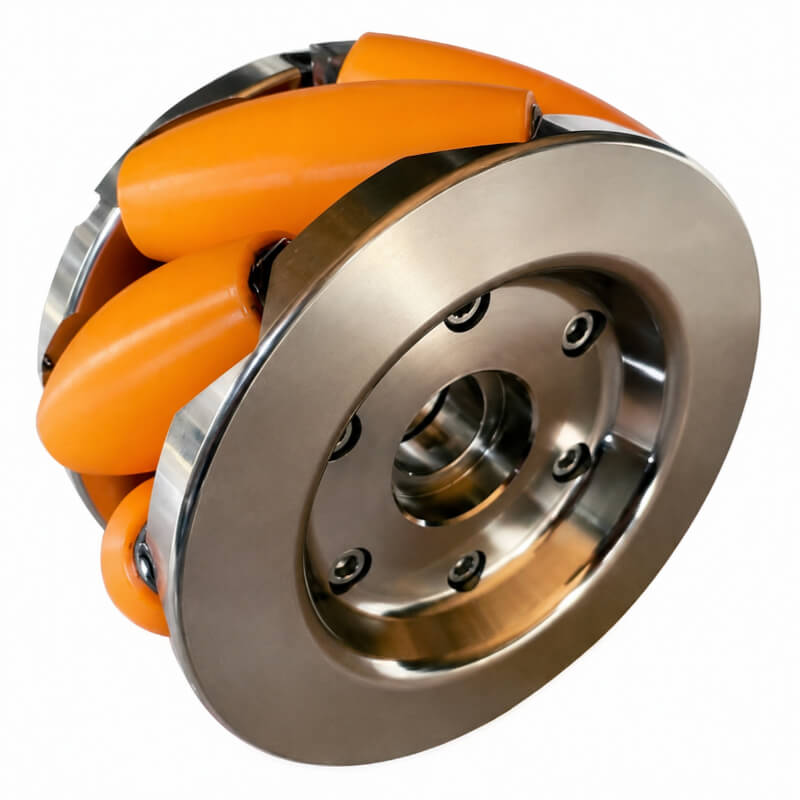

Baoluo Motor provides Industrial Mecanum Wheels for AGV and industrial material handling applications.
5. How Should a Mecanum Wheel Match the Motor?
A Mecanum wheel should not be selected independently from the motor and gearbox. The complete drive system must provide enough torque to move the vehicle under the required load and operating conditions.
Motor selection should consider:
- Total vehicle weight
- Payload
- Wheel diameter
- Gear reduction ratio
- Required vehicle speed
- Acceleration
- Floor resistance
- Maximum slope
- Operating cycle
For heavy-duty AGVs, an AC traction motor can provide a practical solution because it can deliver stable torque, controllable speed, and efficient operation.
Baoluo Motor supplies AC Traction Motors for industrial vehicles and AGV drive systems.
The Mecanum wheel, gearbox, AC motor, controller, and suspension should be considered as one integrated drive system rather than as separate components.
6. What Speed Should an AGV Mecanum Wheel Support?
Required AGV speed has a direct influence on motor power, gearbox selection, wheel performance, vibration, and control accuracy.
Engineers should define both the maximum speed and the normal operating speed.
Important parameters include:
- Maximum vehicle speed
- Normal working speed
- Acceleration time
- Deceleration time
- Operating frequency
- Continuous or intermittent duty
Higher speed is not always better. In many industrial AGV applications, stable movement, accurate positioning, and predictable stopping performance are more important than maximum speed.
7. How Do Floor Conditions Affect Mecanum Wheels?
Floor conditions have a significant effect on Mecanum wheel performance.
Mecanum wheels are generally best suited to relatively flat industrial floors. Uneven surfaces can affect wheel contact, traction, vibration, roller wear, and positioning accuracy.
Engineers should evaluate:
- Concrete floors
- Epoxy floors
- Steel plates
- Floor joints
- Uneven surfaces
- Small obstacles
- Slopes
- Dust and debris
If the AGV must regularly operate on uneven floors, the wheel and suspension system should be carefully evaluated before final selection.
8. Does a Heavy-Duty AGV Need Suspension?
Suspension can become particularly important when a heavy-duty AGV uses multiple Mecanum wheels.
Industrial floors are rarely perfectly flat. Small differences in floor height can change the load distribution between wheels.
Without appropriate suspension or a suitable compliant mounting design, one wheel may carry excessive load while another wheel loses contact force.
This can result in:
- Uneven roller wear
- Reduced traction
- Higher motor current
- Increased vibration
- Reduced wheel service life
- Less accurate AGV movement
A properly designed suspension system helps maintain reliable contact between each Mecanum wheel and the floor.

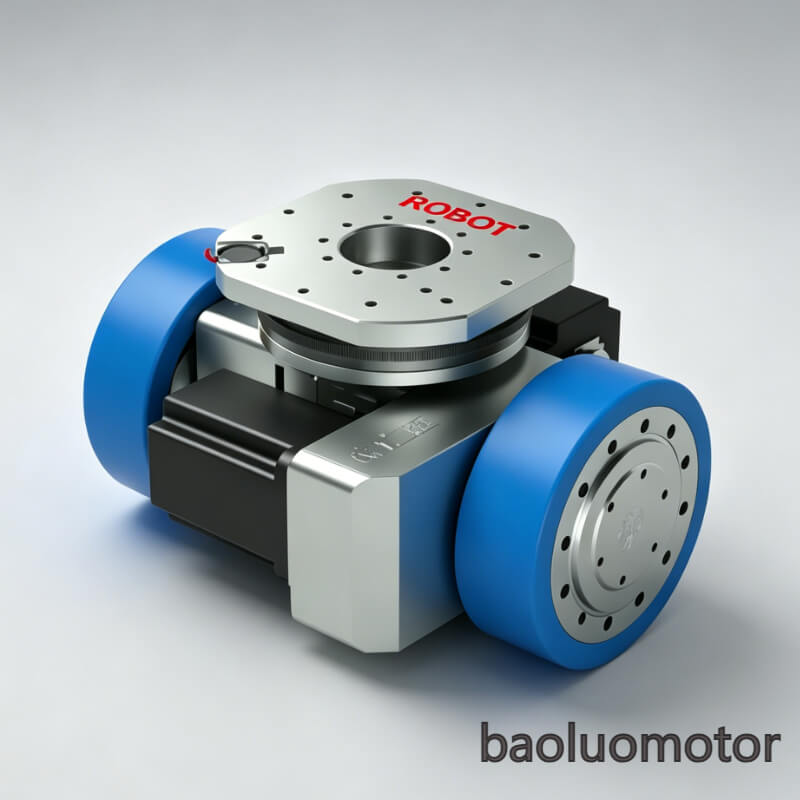

9. Mecanum Wheel vs AGV Drive Wheel: Which Should You Choose?
One of the most important decisions in AGV design is whether to use Mecanum wheels or an integrated AGV drive wheel.
A AGV Drive Wheel is generally suitable for AGVs that require controlled forward and reverse movement, steering, and compact drive integration.
Mecanum wheels are more suitable when omnidirectional movement is a primary requirement.
| Requirement | Industrial Mecanum Wheel | AGV Drive Wheel |
|---|---|---|
| Forward movement | Excellent | Excellent |
| Reverse movement | Excellent | Excellent |
| Sideways movement | Excellent | Limited |
| Diagonal movement | Excellent | Limited |
| In-place rotation | Excellent | Depends on steering configuration |
| Confined-space maneuverability | Excellent | Good |
| Control complexity | Higher | Lower |
| Typical application | Omnidirectional AGV | Standard AGV and industrial vehicle |
When Should You Choose a Mecanum Wheel?
Choose a Mecanum wheel when the AGV needs to move sideways, diagonally, or rotate within a limited area.
When Should You Choose an AGV Drive Wheel?
An AGV drive wheel can be a better choice when the vehicle mainly travels forward and backward and requires an integrated drive and steering system.
10. How to Choose an Industrial Mecanum Wheel Manufacturer?
Choosing the right Mecanum wheel manufacturer is as important as selecting the correct wheel specifications.
Engineers should evaluate:
- Manufacturing experience
- Load testing capability
- Dimensional accuracy
- Roller quality
- Bearing quality
- Assembly precision
- Quality control
- Customization capability
- Technical support
- After-sales service
The lowest purchase price does not necessarily provide the lowest total cost. Poor-quality wheels can increase maintenance requirements, replacement costs, downtime, and commissioning time.
For industrial AGV projects, engineers should evaluate total operating cost and long-term reliability rather than comparing suppliers only by unit price.
Industrial Mecanum Wheel Selection Checklist
Before placing an order, engineers can use the following checklist:
| Parameter | What to Confirm |
|---|---|
| Total Vehicle Weight | Vehicle + battery + drive system + payload |
| Wheel Load | Static and dynamic load requirements |
| Wheel Diameter | Installation space and ground clearance |
| Roller | Material, bearing, hardness and durability |
| Motor | Torque, power, voltage and speed |
| Gearbox | Reduction ratio and output torque |
| Vehicle Speed | Maximum and normal operating speed |
| Floor | Flatness, joints, slope and debris |
| Suspension | Wheel contact and load distribution |
| Control System | Wheel synchronization and movement accuracy |
How Baoluo Motor Supports AGV Drive Systems
Baoluo Motor provides drive components for industrial AGV and material handling applications, including Industrial Mecanum Wheels , AGV Drive Wheels , and AC Traction Motors .
These products can be evaluated as part of a complete AGV drive system according to vehicle payload, required speed, installation space, floor conditions, suspension design, and operating environment.
For engineers developing heavy-duty AGVs, selecting the motor and wheel as a matched system can help improve traction, stability, maneuverability, and long-term reliability.
Conclusion
Choosing an industrial Mecanum wheel requires more than checking wheel diameter and rated load. Engineers should evaluate the complete AGV drive system, including wheel capacity, roller construction, motor torque, gearbox ratio, vehicle speed, floor conditions, suspension, and control requirements.
For applications requiring sideways movement, diagonal travel, and rotation in confined spaces, Mecanum wheels can provide significant advantages over conventional wheel configurations.
For applications that mainly require forward and reverse transportation with integrated steering, an AGV drive wheel may provide a simpler solution.
The best solution is therefore determined by the actual vehicle requirements. By matching the Mecanum wheel , AC traction motor , gearbox, suspension, and controller as one system, engineers can build a more reliable heavy-duty AGV.
Frequently Asked Questions About Industrial Mecanum Wheels
What is an industrial Mecanum wheel?
An industrial Mecanum wheel is an omnidirectional wheel equipped with angled rollers. By coordinating multiple wheels, an AGV can move forward, backward, sideways, diagonally, and rotate in place.
What is the load capacity of an industrial Mecanum wheel?
Load capacity depends on wheel size, roller design, materials, bearing structure, vehicle configuration, and operating conditions. Engineers should calculate total vehicle weight and dynamic loading before selecting the wheel.
How do I calculate Mecanum wheel load capacity?
Start with the complete operating weight of the AGV, including vehicle structure, battery, drive system, payload, and dynamic loads. Do not simply divide the total weight by four because load distribution can change during acceleration, braking, turning, and operation on uneven floors.
What size Mecanum wheel should I use for a heavy-duty AGV?
Wheel size should be selected according to total load, required speed, ground clearance, installation space, floor conditions, and vehicle structure. Larger wheels can provide greater ground clearance, while smaller wheels may help reduce vehicle height.
Are Mecanum wheels suitable for heavy-duty AGVs?
Yes. Industrial Mecanum wheels can be used for heavy-duty AGVs when the wheel load capacity, roller structure, motor torque, gearbox, suspension, and vehicle frame are properly matched.
What motor is suitable for a Mecanum wheel AGV?
The motor should provide sufficient torque and speed for the vehicle's total load and operating cycle. AC traction motors are commonly considered for industrial AGV applications because they offer controllable speed and reliable traction performance.
What is the difference between a Mecanum wheel and an AGV drive wheel?
Mecanum wheels are designed for omnidirectional movement, including sideways and diagonal travel. An AGV drive wheel is generally used for controlled forward and reverse movement and can integrate drive, steering, braking, and other functions depending on its configuration.
Can Mecanum wheels move sideways?
Yes. Sideways movement is one of the main advantages of Mecanum wheels. Coordinated control of multiple wheels creates the lateral force required for sideways travel.
How many Mecanum wheels does an AGV need?
Four-wheel configurations are common for omnidirectional AGVs, but the appropriate number and arrangement depend on vehicle size, load, chassis design, suspension, and application requirements.
What floor is suitable for Mecanum wheels?
Relatively flat and stable industrial floors are generally preferred. Uneven surfaces, large floor joints, debris, and excessive slopes can affect traction, vibration, roller wear, and positioning accuracy.
How do I choose an industrial Mecanum wheel manufacturer?
Evaluate manufacturing experience, roller and bearing quality, dimensional accuracy, load testing, assembly precision, customization capability, technical support, and after-sales service rather than comparing price alone.
Can Baoluo Motor provide a complete AGV drive solution?
Baoluo Motor provides Industrial Mecanum Wheels, AGV Drive Wheels, AC Traction Motors, and other drive components for industrial vehicles and AGV applications. Product selection can be evaluated according to the vehicle's payload, speed, layout, and operating environment.
