A 72 V XQD-4.2 auxiliary motor had been starting the oil pump on a CRRC vehicle for more than ten years. One morning it simply stopped. No slow run-down, no noise, no burnt smell that anyone noticed first. Our engineer and our QC inspector drove to the site, opened the motor, and had the answer in about an hour.
What stopped it was not age and not a design fault. A small patch of winding insulation had broken down, and the bare copper underneath had come into contact with the motor frame. On a megohmmeter (also called a megger, an insulation resistance tester that pushes a DC test voltage into the winding and reads how much current leaks out) the reading was zero. Zero means a dead short to the frame. We re-insulated the damaged section, cleaned the debris out, re-tested, and the motor went back to work.
Two things came out of that visit that are worth more than the repair itself. A megger test tells you more in thirty seconds than an hour of looking does. And the dust we found packed inside the frame was not what killed the motor, but it was the record of ten years in which nobody had opened it.
Rule of thumb: when a brushed DC motor stops suddenly and the brushes still look serviceable, test winding-to-frame insulation before you strip anything else. Near zero means a short to the frame. A healthy low-voltage winding reads in megohms.
1. The motor and the job it does
The XQD-4.2 is a 72 V, 4.2 kW compound wound brushed DC auxiliary motor rated at 2150 rpm and 71.2 A, built for a 60-minute duty cycle. It carries an IP44 enclosure, B35 mounting, and a 4-tooth internal spline for direct coupling to the pump.
Its job on these vehicles is pre-lubrication. Before a diesel engine is started, the oil pump has to run long enough to build oil pressure and get oil to the bearings and other loaded surfaces. Starting a large engine dry is how you lose a crankshaft, so this small motor carries more responsibility than its power rating suggests.
Compound wound means the motor carries both a series field winding and a shunt field winding. The series part gives the high breakaway torque you need when cold, thick oil is sitting in the pump. The shunt part keeps the speed from running away once the load drops. For a pump that starts against cold oil and then runs lightly loaded, that combination is exactly what you want. CRRC fits the motor to several of its vehicle types for this duty, and the same motor is used on diesel pre-lubrication skids, hydraulic power units and railway maintenance equipment.
2. What we found on site
Here is the sequence of the visit, in the order it happened. The point of writing it down is that step three is the one that mattered, and it took less than a minute.
| Step | What we did | What we saw | What it told us |
|---|---|---|---|
| 1 | Talked to the operator and asked for service records | No maintenance record for this motor | The unit had run for years without a scheduled service |
| 2 | Opened the motor and inspected it | Heavy dust and debris packed inside the frame | Dirty environment and no internal cleaning. Serious, but on its own it does not stop a motor |
| 3 | Megohmmeter test, winding terminal to motor frame | 0 Ω | Dead short to the frame. This is why it would not turn |
| 4 | Traced the fault point by point | Insulation layer damaged in one place, copper touching the frame | Root cause found |
| 5 | Repaired | Damaged section re-insulated, interior cleaned out | Fault removed |
| 6 | Re-tested | Insulation resistance restored, motor ran correctly under test | Returned to service |
Step two gets the attention because it looks dramatic, but it is the least dangerous of the findings. Step three is the one that explains the failure, and it is the cheapest test on the list.
3. Why a zero reading is the answer, not a clue
A megohmmeter applies a DC test voltage between the winding and the motor frame, typically 500 V for machines rated below 1000 V. It then measures the leakage current that flows and converts it into a resistance reading. A healthy winding reads in megohms, because the insulation is doing its job. A reading of zero means the copper is touching the frame and current has a direct path to earth.
IEEE Std 43 gives the procedure and the acceptance values for insulation resistance testing of rotating machine windings. The commonly used minimum for a one-minute reading at 40 °C is the rated voltage in kV plus one, in megohms; for random-wound low-voltage machines, industry practice uses a 5 MΩ floor, and form-wound windings are held to a far higher figure. On a 72 V motor the formula works out at roughly 1.1 MΩ, and a motor in good condition reads well above that.
So zero is not a borderline result that needs interpreting. It is a hard short. It also explains why an ordinary multimeter will not find these faults: a multimeter tests at a few volts from its own battery and will happily report an open circuit across insulation that breaks down as soon as real voltage is applied. If you only own a multimeter, you will miss the fault that meggering finds in half a minute.
One more habit is worth building. Write the reading down every time you take it. A single value tells you whether the motor is alive today; a falling trend over three or four readings tells you a winding is on its way out, while it can still be fixed cheaply.
4. The dust did not stop it, but it is not harmless
We want to be straight about this, because it is easy to blame whatever looks worst. The dust did not stop the motor. The failed insulation did. What the dust did was report on how the motor had been treated, and it was working against the remaining insulation in four ways:
- It traps heat. A blanket of dust over the winding acts as insulation in the thermal sense too, so the copper runs hotter than the load alone would explain.
- It holds moisture. Dust that has absorbed water becomes conductive, and a conductive path across an insulation surface is how breakdown starts.
- It starts tracking. Contamination on winding surfaces leads to surface discharge and carbon tracking, a recognised route to ground faults in published work on winding failures.
- It gets into the brush gear. Carbon dust and grit around the commutator and brush holders accelerate wear on both.
EASA lists contamination among the mechanisms that shorten stator winding life, and IEEE papers on winding failure describe contamination, surface discharge and tracking as a connected chain. That research is written about larger machines, but the physics does not care about the size of the motor. A clean, dry winding runs cooler and lasts longer than a dirty one in the same duty.
5. IP44 is not a dust seal
This is the specification detail that catches people out. Under IEC 60529, the IP code's first digit of 4 means protection against solid objects larger than 1 mm, and the second digit of 4 means protection against water splashed from any direction. Dust-tight is a 6, and dust-protected is a 5. IP44 is neither.
In practical terms, an IP44 motor in a rail depot, a mine or a foundry will still take in fine dust over years, through breathers, drains, cable entries and the seal faces. That is normal and it is not a defect. What it does mean is that the enclosure rating has to be chosen for the site, and that a motor working in heavy dust needs internal cleaning as a scheduled job rather than a repair item. When we quote a DC auxiliary motor for a dusty application, this is one of the first things we ask about.
6. The maintenance that would have caught it
Brushed DC motors ask for two things that sealed AC machines do not: brush service and internal cleaning. Both are cheap. Neither takes long. This is the schedule we recommend for a motor in this class and this kind of duty.
| Task | Interval | What to do | Why it matters |
|---|---|---|---|
| Carbon brush check | Every 2000–3000 operating hours | Check brush length and spring pressure; replace once a brush is worn by a third | Brushes are the wearing part. Run them to the metal and you damage the commutator |
| Internal cleaning | Every 12 months, or every 3–6 months in heavy dust | Remove dust and debris from the frame, windings and brush gear | Keeps the winding cool and removes moisture paths |
| Insulation resistance test | Every 6–12 months, and log the reading | Megger the winding to the frame and compare with the last value | Finds breakdown before it becomes a short |
| Commutator and brush gear | At each brush service | Clear carbon dust, check the commutator surface and brush fit | Carbon dust is conductive and it shortens brush life |
| Terminals and cables | At each service | Check torque and look for heat discolouration | A loose terminal is a local heater |
| Duty cycle review | At each service | Confirm the motor is not being run past its rating | The XQD-4.2 is rated for a 60-minute duty cycle, not continuous running |
The brush interval comes from our own service guidance for these motors; the insulation test interval follows the general practice around IEEE 43, adjusted for how dirty the site is. If your motor lives in dust, shorten both.
If you want the detail on choosing and changing brushes, we wrote a separate guide on carbon brush selection for DC machines.
7. How we repaired it
The repair itself was small, which is the good news about localised insulation damage:

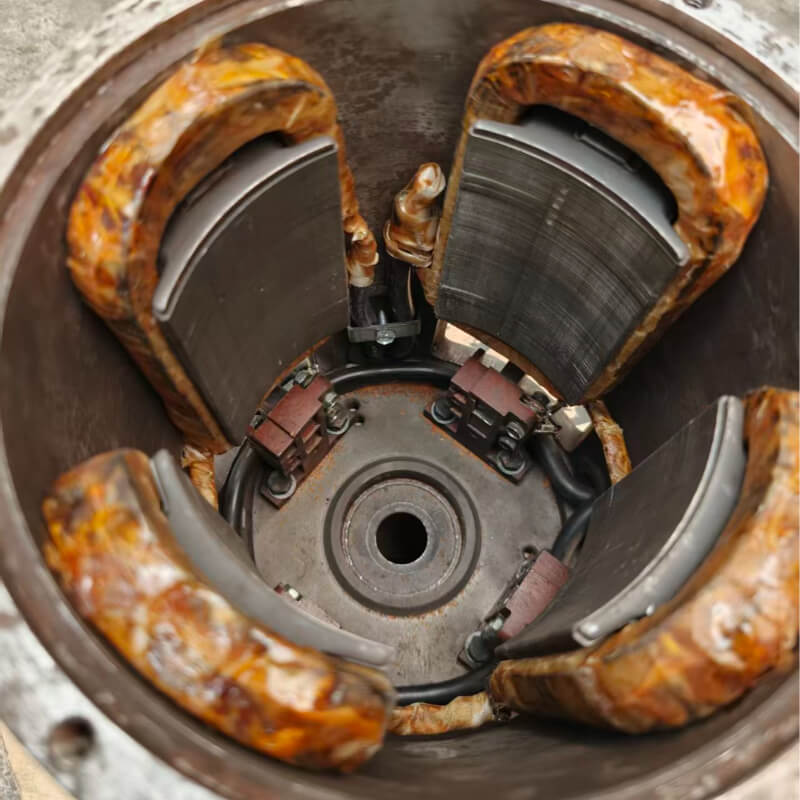

- Stripped the motor and photographed the inside before touching anything, so the findings were recorded.
- Cleaned the dust and debris out of the frame, the windings and the brush gear.
- Meggered the winding to the frame, section by section, to find where the short was rather than guessing.

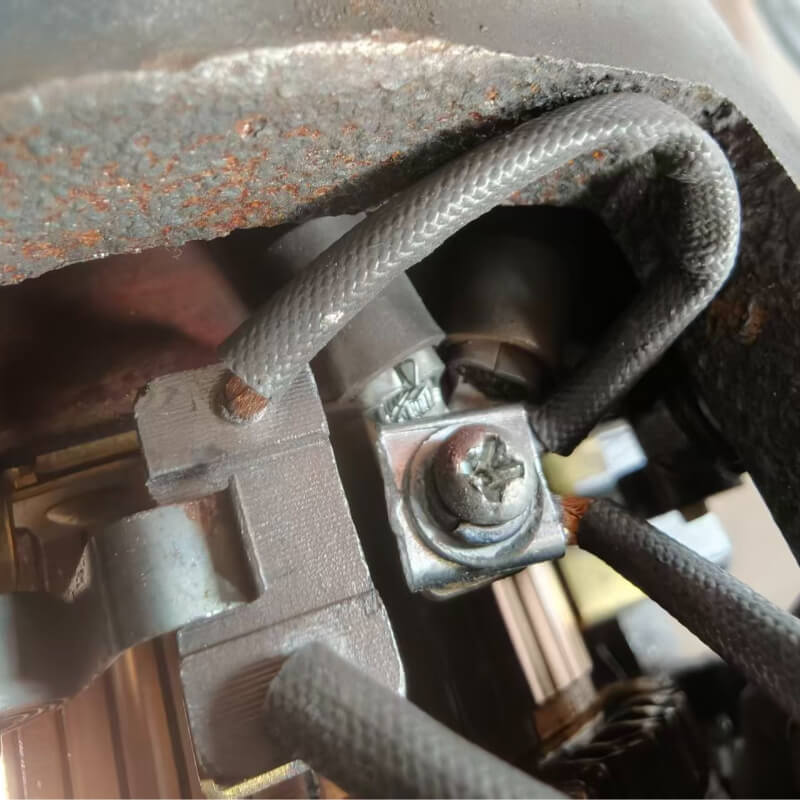

- Found the damaged point: the insulation layer had broken down and the copper was touching the frame.
- Re-insulated the damaged section and checked the rest of the winding for related damage.
- Reassembled, re-tested insulation resistance, then ran the motor under test to confirm it behaved correctly.
Our QC inspector did the repair and signed off the re-test. That division matters on a service job: the person who fixes it should not be the only person who declares it fixed.
It does not always work out this well. Localised damage like this is repairable. If the winding is burnt over a large area, or the commutator is scored, or the laminations have been hot enough to change colour, the answer is a rewind or a replacement. The reason this one was cheap is that the fault was found early, at the point where it had only just gone to earth.
8. Ten years is not the ceiling
A motor being ten years old tells you very little on its own. What this case shows is that a brushed DC auxiliary motor in a demanding job can run for a decade and still be worth repairing rather than replacing. What decides the outcome is whether anybody opened it during those ten years.
Brushed DC motors ask for brush service and periodic cleaning. In exchange they give high starting torque from a simple controller, which is why they are still specified for pumps, winches and starting duties where an AC machine would need more electronics to do the same job. The trade is clear, and it only goes wrong when the maintenance half of it is skipped. If you are weighing the two technologies for a new machine, our DC vs AC traction motor comparison sets out where each one fits.
FAQ
What does a 0 Ω reading on a megger mean?
It means the winding is shorted to the motor frame. Current is going straight to earth instead of through the winding, so the motor will not run and the supply protection should trip. It is not a marginal reading and it is not something to run through and see.
How often should I megger a low-voltage DC motor?
Every 6 to 12 months for a motor in normal industrial duty, and every 3 to 6 months if it lives in dust, moisture or heat. Log each reading. The trend is more useful than any single number.
Is IP44 enough for a dusty rail depot?
IP44 keeps out objects over 1 mm and splashing water, but it is not dust-tight under IEC 60529. It will still take in fine dust over time, so plan for scheduled internal cleaning, or specify a higher IP rating for the enclosure at the buying stage.
Can a shorted winding always be repaired?
Only if the damage is localised. A single point where the insulation has broken down can be re-insulated, as in this case. Once the winding is burnt across a large area, or the commutator is damaged, a rewind or a new motor is the realistic answer.
How often do the brushes need changing?
Inspect every 2000 to 3000 operating hours and replace once the brush is worn by about a third of its original length. Brushes are cheap. A commutator is not. Full guidance is in our carbon brush guide.
How long should a brushed DC auxiliary motor last?
Longer than most people expect, and the case above is one data point: over ten years on a rail vehicle, still repairable. What decides it is heat, contamination and whether the brushes were serviced, not the calendar.
Why use a compound wound motor for an oil pump?
Because a pump starts against cold, thick oil and then runs lightly loaded. The series field gives the breakaway torque; the shunt field keeps the speed stable once flow is established. The XQD-4.2 is built for exactly that duty.
