Carbon brushes are small components, but they have a major influence on the performance, efficiency, maintenance requirements, and service life of a DC brushed motor.
When two DC motors operate under similar conditions, one motor may have carbon brushes that last for a long time while another requires frequent replacement. Why does this happen?
In many cases, the answer is not simply the quality of the motor. The carbon brush material, electrical characteristics, mechanical properties, contact area, commutator condition, spring pressure, motor current, speed, and operating environment can all affect brush wear.
This article explains how carbon brush materials differ, why some brushes wear faster than others, how to select the right carbon brush for a DC motor, and why Baoluo Motor uses custom arc-shaped carbon brushes matched to the commutator.
What Is a Carbon Brush in a DC Motor?
A carbon brush is a sliding electrical contact used to transfer current between the stationary and rotating parts of a brushed DC motor.
In a typical DC motor, the carbon brush maintains contact with the rotating commutator while the armature rotates. This allows electrical current to enter or leave the armature winding while the motor is operating.
Because the brush is a mechanical contact component, it is designed to wear gradually during operation. This makes carbon brushes a normal maintenance item in many industrial DC motors.
The goal is not simply to find the hardest carbon brush. The correct brush should provide a suitable balance between:
- Electrical conductivity
- Commutation performance
- Mechanical strength
- Wear resistance
- Friction characteristics
- Temperature resistance
- Commutator compatibility
For this reason, carbon brush selection should be considered as part of the complete motor design rather than as an independent component choice.
Why Do Some Carbon Brushes Wear Faster Than Others?
A common misconception is that all carbon brushes are essentially the same. In reality, carbon brushes can use different material systems and manufacturing processes depending on the motor application.
Two brushes may look almost identical but have very different electrical and mechanical characteristics.
The main factors affecting carbon brush wear include:
- Carbon material structure
- Graphite content
- Electrical resistance
- Mechanical hardness
- Metal content
- Binder system
- Current density
- Motor speed
- Spring pressure
- Commutator surface condition
- Temperature
- Humidity and dust
Therefore, a carbon brush that works well in one DC motor may not be the best choice for another motor.

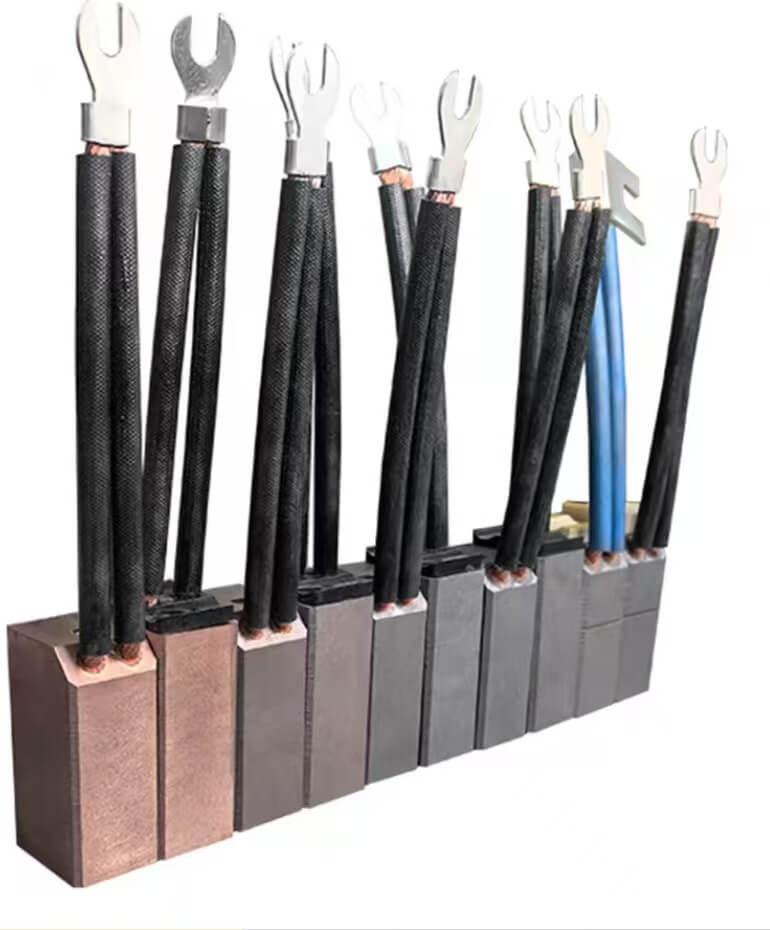

Common Carbon Brush Material Types
Different carbon brush material systems are used for different electrical and mechanical requirements. The following categories are commonly encountered in industrial DC motor applications.
1. Electro-Graphite Brushes
Electro-graphite brushes are produced through a high-temperature graphitization process. They generally provide good electrical conductivity, suitable commutation characteristics, and relatively low friction.
They are widely used in many DC motors where good commutation and stable operation are required.
2. Resin-Bonded Carbon Brushes
Resin-bonded brushes use carbon or graphite particles combined with a binder system. Their properties can be adjusted for specific mechanical and electrical requirements.
They can provide good mechanical strength and can be formulated for different operating conditions.
3. Metal-Graphite Brushes
Metal-graphite brushes contain conductive metals such as copper or silver together with graphite and other components.
The metal content can significantly improve electrical conductivity, making this type useful for applications with high current density or low contact voltage requirements.
4. Natural Graphite Brushes
Natural graphite-based brushes have good lubricating characteristics and can provide relatively low friction.
They may be suitable for applications where mechanical wear and commutation characteristics require a softer brush material.
Carbon Brush Material Comparison
The following table provides a general comparison of common carbon brush material systems. Actual formulations vary between manufacturers and must be selected according to the specific motor application.
| Material System | Typical Main Components | Electrical Conductivity | Mechanical Characteristics | Typical Advantages | Typical Applications |
|---|---|---|---|---|---|
| Electro-Graphite | Graphitized carbon, graphite, additives | Medium to High | Moderate hardness | Good commutation, stable operation | Industrial DC motors, traction motors |
| Resin-Bonded Carbon | Carbon/graphite + resin binder + additives | Low to Medium | Good mechanical strength | Adjustable mechanical and electrical properties | General-purpose motors |
| Metal-Graphite | Graphite + copper/silver + binder | High to Very High | Relatively soft depending on formulation | High current carrying capability | High-current applications |
| Natural Graphite | Natural graphite + additives/binder | Medium | Relatively soft | Good lubrication and low friction | Specific DC motor applications |
These material categories should not be treated as fixed formulas. A professional carbon brush manufacturer can modify the composition according to motor current, voltage, speed, commutator material, brush pressure, temperature, and operating environment.
Typical Carbon Brush Material Composition
One of the most important points for engineers is that carbon brush materials are normally engineered as a combination of several components rather than a single raw material.
A typical formulation may contain different proportions of:
- Carbon or graphite base material
- Natural or synthetic graphite
- Metal powder in metal-graphite grades
- Binder or resin
- Lubricating additives
- Performance modifiers
For example, a metal-graphite brush may contain a significantly higher proportion of conductive metal than a conventional graphite brush, while an electro-graphite brush relies more heavily on graphitized carbon characteristics.
However, exact percentages should not be treated as universal standards. The optimum formulation depends on the electrical and mechanical requirements of the motor.
| Material Component | Primary Function | Effect on Brush Performance |
|---|---|---|
| Graphite / Carbon | Base conductive material | Affects conductivity, friction and wear |
| Metal Powder | Improve electrical conductivity | Can support high-current applications |
| Binder | Hold material structure together | Affects strength and manufacturing characteristics |
| Lubricating Additives | Reduce friction | Can influence brush and commutator wear |
| Performance Additives | Adjust electrical or mechanical properties | Can improve application-specific performance |
How to Choose the Right Carbon Brush for a DC Motor
The correct carbon brush for a DC motor should be selected according to the motor's actual operating conditions.
Engineers should evaluate:
- Motor rated voltage
- Motor current
- Peak current
- Motor speed
- Duty cycle
- Load characteristics
- Commutator material
- Commutator diameter
- Brush holder structure
- Brush spring pressure
- Operating temperature
- Humidity and contamination
For example, a high-current traction motor may require a different brush formulation from a small industrial DC motor operating at a lower current density.
This is why simply purchasing a carbon brush based on its physical dimensions may not produce the best result.

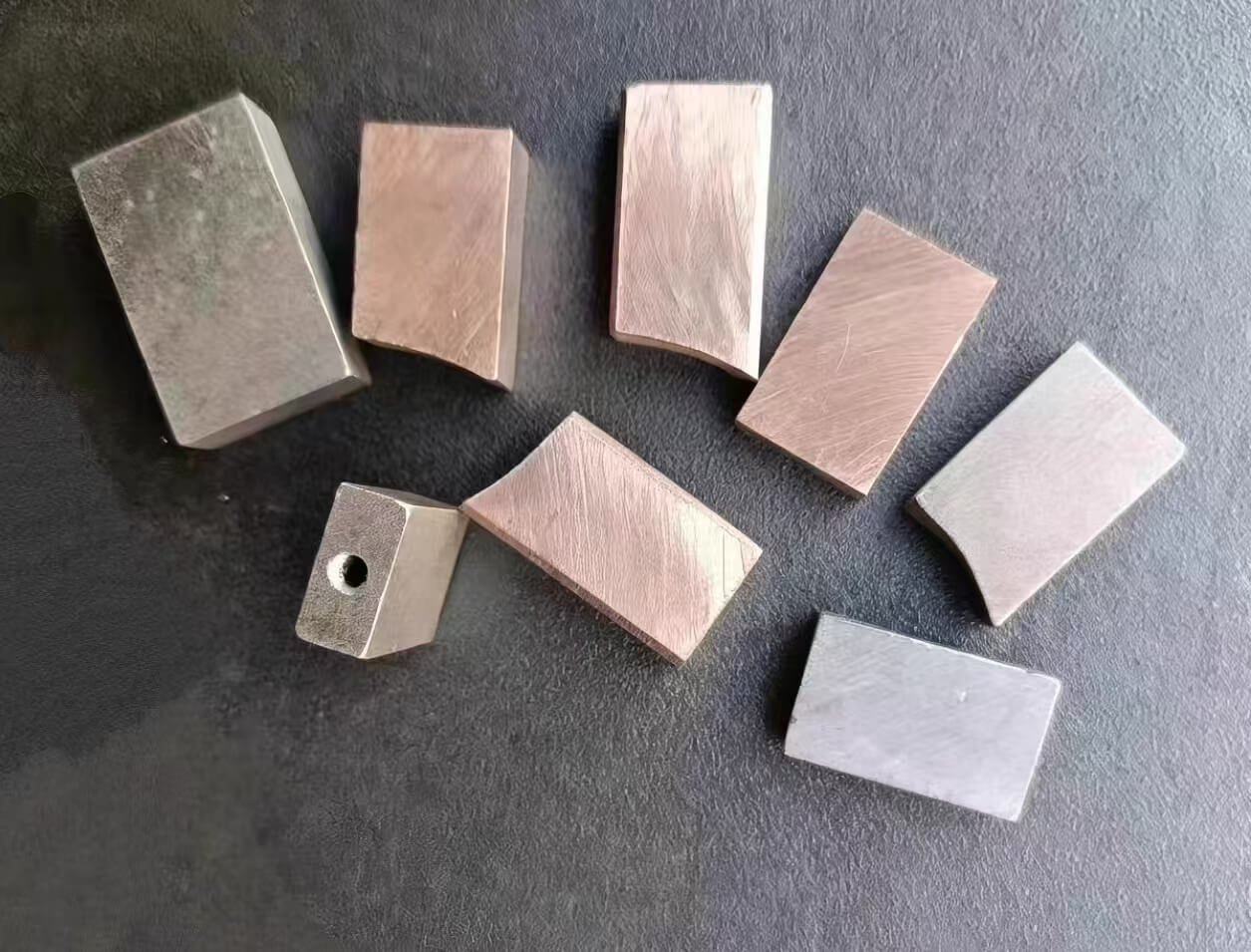

Why Does Baoluo Motor Use Custom Arc-Shaped Carbon Brushes?
The physical contact between the carbon brush and the commutator is extremely important.
Baoluo Motor uses carbon brushes that are custom-shaped according to the commutator surface. Instead of relying only on a flat or generic brush surface, the brush contact surface is manufactured with a suitable arc to match the commutator diameter.
The objective is to create a larger and more consistent contact area between the carbon brush and the commutator.
This can provide several potential advantages:
- More stable electrical contact
- More uniform current distribution
- Reduced local contact pressure
- Improved commutation stability
- Reduced localized heating
- More uniform brush wear
- Better brush service life
For industrial DC motors, this type of component-level matching can be particularly important when the motor operates under high current, frequent starting, reversing, or heavy-duty traction conditions.
You can learn more about Baoluo Motor's DC Traction Motors and their applications in industrial electric vehicles and traction systems.
What Happens If Carbon Brushes Are Not Custom-Matched to the Commutator?
A generic carbon brush may physically fit into the brush holder, but that does not necessarily mean it has the correct contact geometry for the commutator.
If the brush contact surface does not properly match the commutator curvature, the actual contact area can initially be much smaller than expected.
1. Smaller Initial Contact Area
A flat or poorly matched brush may touch only a limited portion of the commutator surface. This increases local current density and contact pressure.
2. Longer Running-In Period
A new brush may require a longer running-in period before a sufficient contact surface develops naturally.
3. Uneven Brush Wear
Poor contact geometry can cause certain areas of the brush to wear faster than others.
4. Increased Contact Heating
A smaller effective contact area can increase local electrical losses and temperature at the brush-commutator interface.
5. Possible Commutation Problems
Poor contact can contribute to unstable current transfer and may increase the possibility of sparking under certain operating conditions.
6. Reduced Service Life
Uneven contact, excessive wear, and higher temperature can contribute to shorter brush and commutator service life.
Therefore, the correct approach is not simply to choose a carbon brush that fits the brush holder. The brush should be considered together with the commutator geometry and the motor's electrical operating conditions.
Carbon Brush and Commutator Matching
A DC motor's carbon brush and commutator work as a pair.
The commutator diameter, surface condition, material, rotational speed, electrical load, brush pressure, and brush material all influence the contact condition.
A high-quality carbon brush cannot compensate for a severely damaged commutator, and a precision-machined commutator cannot fully compensate for an unsuitable brush material.
The best results come from treating the carbon brush + commutator + armature + brush holder as an integrated system.
Why Carbon Brush Quality Matters in DC Traction Motors
Carbon brush performance becomes particularly important in traction applications because DC traction motors can experience high starting torque, high current, frequent acceleration, braking, reversing, and changing load conditions.
These operating conditions can place greater demands on the brush-commutator contact system.
For industrial vehicles such as electric transfer carts, forklifts, mining vehicles, tow tractors, and other battery-powered equipment, stable commutation and predictable brush wear can directly affect maintenance intervals and operating reliability.
Baoluo Motor develops and manufactures DC Traction Motors for industrial electric vehicle and material handling applications.
Baoluo Motor's Approach to DC Motor Carbon Brushes
For Baoluo Motor, carbon brush selection is not treated as a simple spare-parts decision.
The brush material and physical geometry are considered according to the motor's electrical and mechanical characteristics.
The carbon brush contact surface is customized to match the curvature of the motor's commutator. This helps establish a more suitable contact area between the brush and commutator from the beginning of operation.
Combined with appropriate brush pressure, commutator finishing, motor current design, and quality control, this approach is intended to provide stable current transfer and more consistent brush wear during the motor's service life.
For customers purchasing DC motors for heavy-duty industrial applications, the carbon brush should therefore be evaluated as part of the motor's overall design rather than as an inexpensive replaceable component.
Carbon Brush Selection: Quick Comparison
| Factor | Generic Carbon Brush | Application-Matched Carbon Brush |
|---|---|---|
| Material Selection | General-purpose formulation | Selected according to motor conditions |
| Commutator Matching | May require running-in | Designed to match commutator geometry |
| Contact Area | May be limited initially | Designed for better initial contact |
| Current Distribution | May be less uniform | More consistent contact can improve distribution |
| Wear Pattern | May be uneven | Designed for more uniform wear |
| Maintenance | Potentially more frequent | Can support longer maintenance intervals when properly matched |
| Application | General-purpose motors | Industrial and application-specific DC motors |
Conclusion
Carbon brushes are much more than simple conductive blocks inside a DC motor. Their material composition, electrical characteristics, mechanical properties, geometry, and relationship with the commutator can significantly affect motor performance and maintenance requirements.
If one carbon brush wears much faster than another, the reason may be related to material formulation, current density, brush pressure, motor speed, commutator condition, or contact geometry.
For this reason, selecting the right DC motor carbon brush requires a complete understanding of the motor's operating conditions.
Baoluo Motor uses application-matched carbon brush materials and custom arc-shaped contact surfaces designed according to the commutator geometry. The goal is to establish a more suitable brush-commutator contact condition, support stable current transfer, and improve the consistency and service life of the motor's brush system.
For industrial applications requiring reliable DC drive performance, you can learn more about Baoluo Motor DC Traction Motors .
Frequently Asked Questions About DC Motor Carbon Brushes
Why do some DC motor carbon brushes wear faster than others?
Brush wear can be affected by carbon brush material, current density, motor speed, spring pressure, commutator condition, contact geometry, temperature, and operating environment. Different brush formulations can therefore have significantly different wear rates.
What is the best material for a DC motor carbon brush?
There is no single best material for every DC motor. Electro-graphite, resin-bonded carbon, metal-graphite, and natural graphite systems have different electrical and mechanical characteristics. The correct material depends on the motor's voltage, current, speed, load, and commutation requirements.
Why are carbon brushes made from graphite?
Graphite provides useful electrical conductivity and self-lubricating characteristics, making it suitable for sliding electrical contact applications such as DC motor brushes.
Does carbon brush hardness affect motor life?
Yes. Brush hardness can influence brush wear and commutator wear. A brush that is too hard or too soft for the application may create undesirable wear characteristics. Brush hardness should therefore be matched to the motor and commutator system.
Why should a carbon brush match the commutator curve?
An arc-shaped contact surface can provide a more suitable initial contact area with the cylindrical commutator. This can help improve contact consistency and reduce localized contact pressure compared with an improperly matched brush surface.
What happens if a flat carbon brush is installed on a DC motor?
A flat or poorly matched brush may initially have a smaller effective contact area. This can increase local current density and contact pressure, potentially resulting in longer running-in, uneven wear, localized heating, or unstable commutation.
How often should DC motor carbon brushes be replaced?
There is no universal replacement interval. Brush life depends on material, motor current, speed, load, operating hours, commutator condition, spring pressure, and environment. Regular inspection is recommended for motors operating under demanding conditions.
Are carbon brushes important for DC traction motors?
Yes. DC traction motors can operate under high starting current, heavy load, acceleration, braking, and reversing conditions. Stable brush-commutator contact is therefore important for reliable traction motor operation.
Can Baoluo Motor customize carbon brushes for DC motors?
Baoluo Motor selects carbon brush materials according to motor operating requirements and uses custom arc-shaped contact surfaces matched to the commutator geometry on its DC motor designs.
